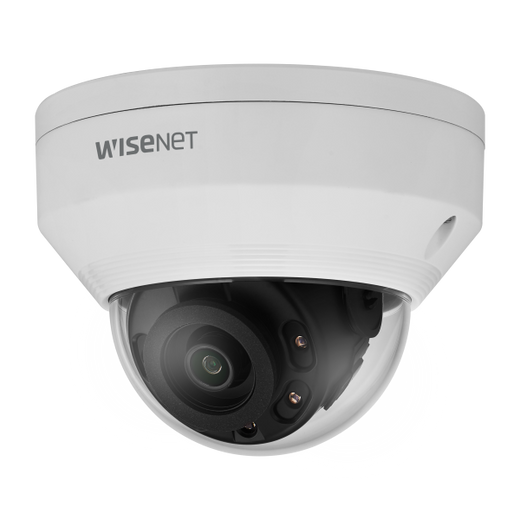

Hanwha LNV-6022R (2MP) Day/Night WDR 1080p 30FPS Fixed IR Outdoor Vandal Dome IP Camera

SKU: LNV-6022R
UPC: 8801089170019
Condition: New
Availability: No Longer Available
Warranty: 3-year warranty

Industry Leading Prices

Quantity Discounts
Available

Certified Experts

Pre and Post-sales
Support Available

Free Shipping on Orders Over $499

Same Day Shipping on
Most Orders

Hanwha LNV-6022R (2MP) Day/Night WDR 1080p 30FPS Fixed IR Outdoor Vandal Dome IP Camera

Frequently Bought Together

Description

The Hanwha LNV-6022R (2MP) Day/Night WDR 1080p 30FPS Fixed IR Outdoor Vandal Dome IP Camera is engineered to deliver unmatched surveillance capabilities, specifically designed to cater to the advanced security requirements of business and IT sectors. This cutting-edge camera is equipped with a high-resolution 2-megapixel sensor, ensuring crisp and clear Full HD 1080p video at a smooth 30 frames per second. Its ability to capture detailed and vibrant footage makes it an indispensable tool for critical monitoring areas such as entry points, perimeters, and sensitive zones within commercial and industrial premises. The LNV-6022R is further enhanced with Wide Dynamic Range (WDR) technology, allowing it to produce exceptionally balanced images in diverse lighting conditions, from bright sunlight to shadowed areas, ensuring that no detail goes unnoticed.

Outdoor surveillance demands durability, and the LNV-6022R meets this need with its robust, vandal-resistant dome design, capable of withstanding harsh weather conditions and attempts at tampering or vandalism. Its integrated IR illumination extends the camera's capabilities into the night, providing clear, detailed images even in total darkness, ensuring round-the-clock security. The camera's efficient H.265/H.264 compression technology significantly reduces storage and bandwidth requirements, making it an economical option for extensive surveillance networks. Designed with flexibility in mind, the LNV-6022R seamlessly integrates into existing surveillance systems, supporting a wide range of network infrastructures and video management systems (VMS), offering an easy setup process and broad compatibility.

Key Features

  • 2 Megapixel Full HD Resolution: Delivers crisp, clear 1080p footage, capturing every detail for comprehensive surveillance.
  • Wide Dynamic Range (WDR): Ensures excellent image quality under diverse lighting conditions, from bright to dimly lit environments.
  • IR Illumination: Provides superior night vision capabilities, ensuring clear images in low-light or no-light conditions.
  • Vandal-Resistant Outdoor Dome: Offers enhanced protection against weather and tampering, ensuring durability and reliability.
  • Efficient Video Compression: Utilizes H.265/H.264 codecs to minimize storage and bandwidth usage without compromising video quality.
  • Seamless Integration: Compatible with major VMS platforms and supports essential network protocols for straightforward installation and configuration.
  • Intelligent Video Analytics: Features motion detection and tampering alerts to enhance security monitoring and incident response.

Compatibility

The Hanwha LNV-6022R is designed for extensive compatibility, ensuring smooth integration into a variety of surveillance setups:

  • Video Management Software: Fully compatible with leading VMS solutions, facilitating efficient system management and operation.
  • Network Protocols: Supports ONVIF, SIP, and other key protocols for easy integration into existing network infrastructures.
  • Storage Solutions: Compatible with MicroSD, NAS, and NVR options, offering versatile storage solutions for different needs.

Package Contents

  • Hanwha LNV-6022R Outdoor Vandal Dome IP Camera
  • Quick Installation Guide
  • Mounting Hardware
  • Software CD-ROM for Device Management
  • Warranty and Safety Information

Summary

The Hanwha LNV-6022R stands out as an exemplary choice for businesses and IT environments seeking robust, reliable outdoor surveillance solutions. Its high-resolution imaging, advanced night vision, and durable construction make it perfectly suited for securing critical outdoor areas. With its efficient data management, intelligent analytics, and ease of integration, the LNV-6022R not only meets but exceeds the complex security demands of modern commercial and industrial landscapes, providing peace of mind and comprehensive surveillance coverage.

Specifications
Imaging Device: 1/2.8" CMOS
Resolution: 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. Framerate: H.265/H.264: Max. 30fps/25fps(60Hz/50Hz); MJPEG: Max. 10fps(@2MP Max. 2fps)
Min. Illumination: Color: 0.03Lux(F2.0, 1/30sec); BW : 0Lux (IR LED on)
Focal Length (Zoom Ratio: 4.0mm fixed focal
Max. Aperture Ratio: F2.0
Angular Field of View: H: 85° / V: 46° / D: 99°
Min. Object Distance: 0.5m(1.64ft)
Focus Control: Fixed
Pan / Tilt / Rotate Range: 0°~350° / 0°~67° / 0°~355°
Camera Title: Displayed up to 15 characters
Day & Night: Auto(ICR)
Backlight Compensation: BLC, WDR, SSDR
Wide Dynamic Range: 120dB
Digital Noise Reduction: SSNR
Motion Detection: 4ea, rectangler zones
Privacy Masking: 6ea, rectangular zones
Gain Control: Low / Middle / High
White Balance: ATW / AWC / Manual / Indoor / Outdoor
LDC: Support
Electronic Shutter Speed: Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation: Flip, Mirror, Hallway view(90°/270°)
Analytics: Motion detection, Tampering
Alarm Triggers: Analytics
Alarm Events: When alarm trigger occurred; - File upload(image) : e-mail/FTP; - Notification : e-mail; - Recording : SD/SDHC/SDXC or NAS recording at event triggers
Light Type: IR LED (850nm)
Light Viewable Length: 30m(98.43ft)
Ethernet: RJ-45(10/100BASE-T)
Video Compression: H.264: Main/Baseline/High, MJPEG
Smart Codec: WiseStreamⅡ
Bitrate Control: H.264: CBR or VBR; MJPEG: VBR
Streaming: Unicast(6 users) / Multicast; Multiple streaming (Up to 3 profiles)
Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
Application Programming Interface: ONVIF Profile S/G/T; SUNAPI(HTTP API)
OS / Firmware Protect: Firmware encryption
User authentication: Digest Authentication, Prevent brute-force attack
Network authentication: 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure Communication: HTTPS, SRTP, WSS(Websocket secure)
Access Control: Access control based on IP address
Data Protect: Authentication information encryption, ZIP compression encryption
Audit: User Access/System/Event log management
Device ID: Device Certificate(Hanwha Private Root CA)
Secure Storage: SDcard partition encrypt
Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch
Edge Storage: Micro SD/SDHC 1slot 32GB
Memory: 512MB RAM, 256MB Flash
Operating Temperature / Humidity: -30°C~+55°C(-22°F ~ +131°F) / 0~90% RH; * Start up should be done at above -20°C(-4°F)
Storage Temperature / Humidity: -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH
Certification: IP66, IK10
Input Voltage: PoE(IEEE802.3af, Class3)
Power Consumption: Max 6.4W, Typical 5.0W
Color / Material: White / Plastic, Aluminum
RAL Code: RAL9003
Product Dimensions / Weight: ø120.3x91.7mm(ø4.74x3.61"), 410g
Hanging Mount (Dome: SBP-122HMW
Backbox: SBV-120GW
Detect (25PPM/ 8PPF: 42.4m(139.17ft)
Observe (63PPM/ 19PPF: 17.0m(55.67ft)
Recognize (125PPM/ 38PPF: 8.5m(27.83ft)
Identify (250PPM/ 76PPF: 4.2m(13.92ft)
bundleid: 5980
