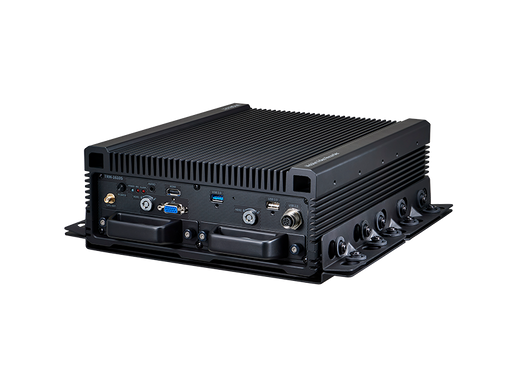

Hanwha TRM-1610M-1TB 16 Channel 12MP H.265 Mobile Network Video Recorder, 1TB

Revolutionize your surveillance capabilities with the Hanwha TRM-1610M-1TB, a 16 Channel 12MP H.265 Mobile Network Video Recorder. Designed to cater to the exacting demands of businesses and IT sectors, this Mobile NVR offers exceptional technical features and unmatched business relevance. In this comprehensive product description, we will explore its exceptional features, compatibility, and specifications, providing you with the insights needed to make an informed decision for your surveillance needs.

Key Features:

1. High-Resolution Camera Support: Elevate your surveillance game with support for up to 16 12-megapixel cameras. Capture every detail in stunning clarity, ensuring that nothing escapes your watchful eye.

2. Triple Codec Support: Experience versatility in recording with triple codec support, including H.265, H.264, and MJPEG. Enjoy efficient video compression without compromising on video quality.

3. Impressive Recording Throughput: With a maximum recording throughput of 128Mbps, this Mobile NVR ensures smooth and high-quality video capture, even in the most demanding surveillance scenarios.

4. Plug & Play PoE Ports: Streamline installation with 4 PoE / PoE+ ports that provide both power and data connectivity to your cameras through a single cable. The inclusion of M12 connectors enhances ruggedness and durability.

5. SATA Drive Bays: The device comes equipped with two front-swap SATA drive bays, offering convenient storage expansion options. Choose between HDD or SSD configurations, with a maximum capacity of 2TB for HDD (Non-RAID mode) or 4TB for SSD (Non-RAID mode).

6. RAID 1 Support: Enhance data redundancy and reliability with RAID 1 support, which mirrors your data across two drives, offering an extra layer of data security.

Compatibility:

The Hanwha TRM-1610M-1TB 16 Channel 12MP H.265 Mobile Network Video Recorder seamlessly integrates with various devices and systems:

• GPS Module: Included as standard, the GPS module ensures precise location tracking and mapping, enhancing your surveillance capabilities.

• Control Box: An integrated control box simplifies centralized management and control of your surveillance setup.

• I/O Box: The included I/O box facilitates connectivity and expandability, enabling you to customize your surveillance system to your unique requirements.

• Built-in Wi-Fi: Enjoy wireless connectivity for added flexibility and convenience during deployment, ensuring seamless communication between devices.

Please note that to utilize all 16 channels with M12 connectors, you will require two PoE switches SPN-10080PM (8 CH PoE with M12) x2.

Specifications:

• Camera Support: Up to 16 x 12-megapixel cameras
• Codec Support: H.265, H.264, MJPEG
• Recording Throughput: Maximum 128Mbps
• PoE Ports: 4 (PoE/PoE+)
• M12 Connectors: 4x M12 D-Code
• Drive Bays: 2 SATA (Front-swap) drive bays
  • Maximum 2TB total capacity (HDD, Non-RAID mode)
  • Maximum 4TB total capacity (SSD, Non-RAID mode)
• RAID Support: RAID 1
• Input Voltage: 9 - 36VDC
• Operating Temperature: -40°F ~ +158°F (-40°C ~ +70°C) (using industrial SSD drives)

Package Contents:

The Hanwha TRM-1610M-1TB 16 Channel 12MP H.265 Mobile Network Video Recorder package includes:

• 1 x TRM-1610M-1TB Mobile NVR
• 1 x GPS Module
• 1 x Control Box
• 1 x I/O Box
• Built-in Wi-Fi module

The Hanwha TRM-1610M-1TB Mobile NVR empowers you with advanced mobile surveillance capabilities. With exceptional camera support, efficient resource management, and seamless compatibility, this device is a powerhouse designed to meet the needs of businesses and IT sectors seeking top-tier security solutions. Capture, store, and manage your surveillance footage easily, all within one compact and reliable device.
