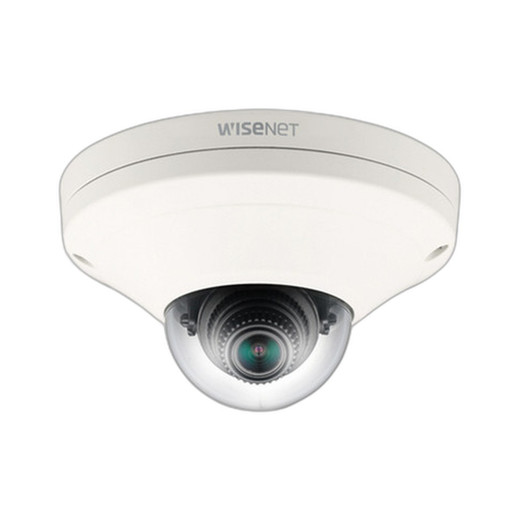

Hanwha XNV-6011W (2MP) Day/Night Indoor/Outdoor Vandal-Resistant Compact Dome IP Camera

MSRP: $399.00
Was: $259.50
Now:

Add to Cart for Sale Price!

$240.99
Adding to cart… The item has been added
SKU: XNV-6011W
UPC: 8801089133465
Condition: New
Availability: Usually Ships Same Business Day
Warranty: 3-year warranty

Industry Leading Prices

Quantity Discounts
Available

Certified Experts

Pre and Post-sales
Support Available

Free Shipping on Orders Over $499

Same Day Shipping on
Most Orders

Hanwha XNV-6011W (2MP) Day/Night Indoor/Outdoor Vandal-Resistant Compact Dome IP Camera

MSRP: $399.00
Was: $259.50
Now:

Add to Cart for Sale Price!

$240.99

Frequently Bought Together

Description

The Hanwha XNV-6011W (2MP) Day/Night Indoor/Outdoor Vandal-Resistant Compact Dome IP Camera is a sophisticated surveillance solution, meticulously designed to cater to the dynamic security needs of business and IT environments. Featuring a high-resolution 2-megapixel sensor, this compact camera ensures the delivery of crisp, clear images, pivotal for detailed monitoring and effective incident resolution. The XNV-6011W stands out with its versatile design, suitable for both indoor and outdoor installations, making it ideal for a variety of settings from corporate offices to outdoor parking areas. Its vandal-resistant casing ensures durability and continuous operation, even in environments prone to tampering or physical impact. Enhanced with advanced day/night functionality and superior IR illumination, this camera guarantees exceptional performance under diverse lighting conditions, ensuring reliable surveillance around the clock.

The XNV-6011W distinguishes itself with its Wide Dynamic Range (WDR) technology, allowing it to capture balanced, clear images in scenes with contrasting light levels, thereby preserving detail in both brightly lit and shadowed areas. This is crucial for environments with varying lighting conditions. Furthermore, the camera utilizes efficient H.265/H.264 compression to optimize storage and bandwidth usage without sacrificing video quality. Intelligent video analytics, including motion detection and tampering alerts, enhance the camera's security capabilities, providing real-time insights and enabling proactive monitoring. Designed for seamless integration, the XNV-6011W is compatible with a broad range of network infrastructures and video management systems (VMS), making it a flexible and powerful addition to any advanced security system.

Key Features

  • 2 Megapixel High-Resolution Sensor: Delivers sharp, detailed images for comprehensive surveillance coverage.
  • Indoor/Outdoor Versatility: Compact, vandal-resistant design suitable for a variety of environments.
  • Day/Night Functionality with IR Illumination: Ensures high-quality imaging in all lighting conditions.
  • Wide Dynamic Range (WDR): Provides balanced exposure in scenes with contrasting lighting, maintaining image clarity.
  • Efficient Video Compression: Utilizes H.265/H.264 formats to maximize storage and bandwidth efficiency.
  • Intelligent Video Analytics: Features motion detection and tampering alerts for enhanced security monitoring.
  • Seamless Integration: Compatible with leading VMS platforms and supports standard network protocols for easy setup.

Compatibility

The Hanwha XNV-6011W is engineered for broad compatibility, facilitating smooth integration into diverse surveillance systems:

  • Video Management Software: Fully compatible with major VMS solutions for efficient system management.
  • Network Protocols: Supports ONVIF, SIP, and other essential protocols for seamless network integration.
  • Storage Solutions: Compatible with MicroSD, NAS, and NVR options for flexible data management.

Package Contents

  • Hanwha XNV-6011W Compact Dome IP Camera
  • Quick Installation Guide
  • Mounting Hardware
  • Software CD-ROM for Device Configuration and Management
  • Warranty and Safety Information

Summary

The Hanwha XNV-6011W Compact Dome IP Camera is a prime choice for those seeking advanced surveillance capabilities, offering high-resolution imaging, robust construction, and advanced functionality. Its ability to perform in a wide range of settings, both indoor and outdoor, coupled with its vandal-resistant design, makes it an invaluable asset for businesses and IT environments looking to enhance their security measures. The camera's efficient data management, intelligent analytics, and ease of integration underscore its position as a leading solution for sophisticated surveillance needs. With its compact form factor and compatibility with various systems, the XNV-6011W represents a smart, high-performing solution for organizations aiming to bolster their surveillance infrastructure with a reliable, feature-rich camera.

Specifications
bundleid: 5982
Imaging Device: 1/2.8" 2M CMOS
Total Pixels: 1,945(H) x 1,109(V) 2.16M
Effective Pixels: 1,945(H) x 1,097(V) 2.13M
Scanning System: Progressive Scan
Min. Illumination: Color : 0.055 Lux (F2.0, 1/30sec) B/W : 0.055 Lux (F2.0, 1/30sec)
S/N Ratio: 50dB
Video Output: CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation USB : Micro USB type B, 1280 x 720, for installation
Focal Length (Zoom Ratio: 2.8mm fixed
Max. Aperture Ratio: F2.0
Angular Field of View: H:112˚, V:62˚, D:130˚
Min. Object Distance: 0.2m (0.66ft)
Focus Control: Manual
Lens Type: Fixed
Mount Type: Board-in Type
Pan / Tilt / Rotate Range: Pan : 0° ~ +353° / Tilt : 0° ~ +59° / Rotate : 0° ~ +353°
Camera Title: Off / On (Displayed up to 85 characters) - W/W : English / Numeric / Special Characters - China : English / Numeric / Special / Chinese Characters - Common : Multi-line (Max 5), Color (Grey / Green / Red / Blue / Black / White), Transparency
Day & Night: Auto (Electrical) / Color / B/W
Backlight Compensation: Off / BLC / HLC (Masking / Dimming), WDR
Wide Dynamic Range: 150dB
Contrast Enhancement: SSDR (Off / On)
Digital Noise Reduction: SSNRⅤ (2D + 3D Noise Filter) (Off / On)
Digital Image Stabilization: Off / On
Defog: Auto (input from fog detection) / Manual / Off
Motion Detection: Off / On (8ea, 8point polygonal zones), Handover
Privacy Masking: Off / On (32ea, polygonal zones) - Color : Grey / Green / Red / Blue / Black / White - Mosaic
Gain Control: Off / Low / Middle / High
White Balance: ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium)
Contrast: Level Adjustment
LDC: Off / On (5 levels with Min / Max)
Electronic Shutter Speed: Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Digital PTZ: 24X, Digital PTZ (Preset, Group)
Flip / Mirror: Flip : Off / On, Mirror : Off / On, Hallway View : 90˚ / 270˚
Video Analytics: Tampering, Loitering, Directional Detection, Defocus Detection, Fog Detection, Virtual Line, Enter / Exit, (Dis) Appear, Face Detection, Motion Detection, Digital Auto Tracking, People Counting, Heatmap, Queue management
Alarm Triggers: Motion Detection, Video Analytics, Network Disconnect
Alarm Events: File upload via FTP, E-Mail Notification via E-Mail Local Storage (SD / SDHC / SDXC) or NAS Recording at Event Triggers DPTZ preset
Pixel Counter: Support
Ethernet: RJ-45 (10/100 BASE-T)
Video Compression Format: H.265 / H.264 (MPEG-4 Part 10 / AVC) : Main / Baseline / High, Motion JPEG
Resolution: 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate: H.265 / H.264 : Max. 60fps at all resolutions, Motion JPEG : Max. 30fps
Smart Codec: Manual Mode (area-based : 5EA)
WiseStream: Support
Video Quality Adjustment: H.264 / H.265 : Target bitrate Level Control, MJPEG : Target bitrate Level Control
Bitrate Control Method: H.264 / H.265 : CBR or VBR, MJPEG : VBR
Streaming Capability: Multiple Streaming (Up to 10 Profiles)
IP: IPv4, IPv6
Protocol: TCP / IP, UDP / IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL / TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMP v1 / v2c / v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security: HTTPS (SSL) Login Authentication, Digest Login Authentication IP Address Filtering, User access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP)
Streaming Method: Unicast / Multicast
Max. User Access: 20 users at Unicast Mode
Edge Storage: SD / SDHC / SDXC (256GB) - Motion Images recorded in the SD / SDHC / SDXC memory card can be downloaded. NAS (Network Attached Storage), Local PC for Instant Recording
Application Programming Interface: ONVIF Profile S/G, SUNAPI (HTTP API), Open Platform
Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer: Supported Browser : Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Window 64bit only), Apple Safari 10 (Mac OS X only) Plug-in WebViewer - Supported Browser : MS Explore 11, Apple Safari 9 (Mac OS X only)
Central Management Software: SmartViewer, SSM
Operating Temperature / Humidity: -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH *Start up should be done at above -20˚C
Storage Temperature / Humidity: -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection: IP66
Vandal Resistance: IK10, NEMA4X
Input Voltage / Current: PoE (IEEE802.3af, Class3)
Power Consumption: Max 6.5W
Color / Material: White / Metal
Dimensions (WxH: Ø112.8 x 63.7mm (Ø4.44" x 2.51")
Weight: 420g (0.93 lb)
