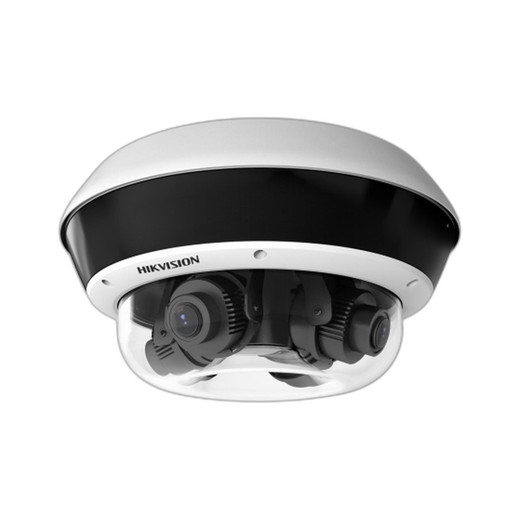

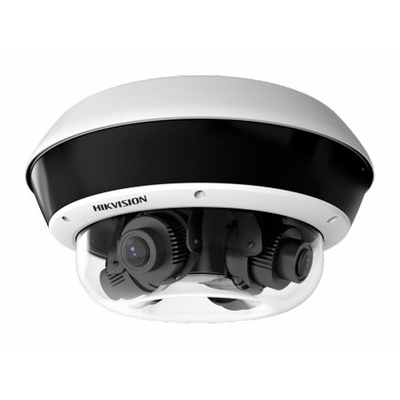

Hikvision DS-2CD6D54FWD-Z 20MP (4x5MP) Ultra High Definition Multi-Sensor 360° Panoramic Outdoor Flexible IP Camera

$1,978.00

Add to Cart for Sale Price!

$1,131.99
Adding to cart… The item has been added
SKU: DS-2CD6D54FWD-Z
UPC: 842571113655
Condition: New
Availability: Usually Ships Same Business Day
Warranty: 5-year warranty

Industry Leading Prices

Quantity Discounts
Available

Certified Experts

Pre and Post-sales
Support Available

Free Shipping on Orders Over $499

Same Day Shipping on
Most Orders

Hikvision DS-2CD6D54FWD-Z 20MP (4x5MP) Ultra High Definition Multi-Sensor 360° Panoramic Outdoor Flexible IP Camera

$1,978.00

Add to Cart for Sale Price!

$1,131.99
Description

The Hikvision DS-2CD6D54FWD-Z Multi-Sensor PanoVu 20MP IP Camera is a groundbreaking surveillance solution, meticulously engineered to meet the expansive coverage needs of the business and IT sectors. This high-end camera system boasts four powerful 5MP sensors, seamlessly integrated to deliver a stunning 20MP total resolution, ensuring every detail is captured with crystal-clear precision. Designed for large-scale and complex environments, the PanoVu Camera excels in areas such as urban centers, parks, and large commercial complexes, providing a comprehensive 360-degree view without the need for multiple cameras. Its advanced stitching technology combines the feeds from each sensor into a single, cohesive panoramic image, offering users a broad and uninterrupted field of view with exceptional image quality.

Key to the DS-2CD6D54FWD-Z's performance is its adaptability to varying lighting conditions, featuring low-light capabilities and enhanced infrared (IR) illumination for clear, detailed images day and night. The camera utilizes state-of-the-art H.265+ video compression to maximize storage efficiency and minimize bandwidth usage, making it an ideal choice for extensive surveillance networks. Its varifocal lenses allow for flexible adjustment of the field of view, ensuring optimal coverage. The camera also includes advanced analytics features like motion detection, line crossing detection, and intrusion detection, providing intelligent alerts and enabling proactive security measures. Furthermore, its compatibility with a wide range of network protocols and integration capabilities with existing surveillance systems makes it a versatile addition to any security infrastructure.

Compatibility

  • Systems/Devices: Fully compatible with Hikvision's range of NVRs and DVRs; ONVIF-compliant for broad third-party system integration.

Specifications

  • Resolution and Image Quality: 20MP total resolution from four 5MP sensors for unparalleled clarity and detail.
  • Sensor Type and Size: High-performance CMOS sensors enhance image quality, particularly in low-light environments.
  • Lens: Varifocal lenses provide adjustable fields of view to suit diverse monitoring needs.
  • Field of View (FoV): Comprehensive 360-degree coverage with seamless image stitching.
  • Minimum Illumination: Superior low-light performance ensures reliable surveillance in dimly lit conditions.
  • Infrared (IR) Night Vision: Advanced IR illumination extends night vision capabilities, ensuring 24/7 monitoring.
  • Pan/Tilt/Zoom (PTZ) Capabilities: N/A; panoramic view achieved through multi-sensor integration.
  • Video Compression: Supports H.265+, H.265, H.264+, and H.264, optimizing storage and bandwidth.
  • Frame Rate: Up to 30 fps per sensor, ensuring smooth video playback.
  • Audio Capabilities: Audio input/output for two-way communication (where legally permissible).
  • Storage Options: Onboard SD card slot supports up to 256GB, with additional NVR/DVR storage compatibility.
  • Power Supply: Power over Ethernet (PoE) simplifies installation by combining power and data into a single cable.
  • Connectivity and Network Features: Ethernet connectivity with Wi-Fi capability ensures flexible installation and reliable data transmission.
  • Environmental Resistance: Durable design with IP66 or higher rating for outdoor and indoor use.
  • Software Features and Analytics: Includes comprehensive analytics for enhanced security monitoring.
  • Integration Capabilities: Seamless integration with existing security systems and home automation platforms.
  • Mobile and Remote Access: Provides remote access through mobile apps and web interfaces for convenient monitoring.

Package Contents

  • Hikvision DS-2CD6D54FWD-Z Camera
  • Mounting Brackets
  • Installation Tools
  • Quick Start Guide
  • Software CD-ROM
  • Warranty Card

Summary

The Hikvision DS-2CD6D54FWD-Z Multi-Sensor PanoVu 20MP IP Camera stands out for its exceptional panoramic coverage, high-resolution imaging, and advanced surveillance features, making it an unparalleled choice for securing wide areas with minimal equipment and maximum efficiency.

Specifications
Image Sensor: 1/2.7" Progressive Scan CMOS
Max. Resolution: 2560 x 1920
Min. Illumination: Color: 0.006 Lux @ (F1.2, AGC ON), 0.010 Lux @ (F1.6, AGC ON),B/W: 0.002 Lux @ (F1.2, AGC ON); 0.003 Lux @ (F1.6, AGC ON),0 Lux with IR on
Shutter Time: 1 s - 1/100,000 s
Day & Night: IR Cut Filter
Angle Adjustment: Four flexible lens in one track, slide range: -180° to 180°, tilt: 0° to 135°, rotate: 0° to 355°
Focal Length & FOV: 2.8mm to 12mm, Horizontal field of view: 30° to 101°,Vertical field of view: 22.4° to 73°,Diagonal field of view: 37° to 137°
Lens Mount: Φ14
Aperture: F1.6
Supplement Light Type: IR
Supplement Light Range: 10 m to 30 m
IR Wavelength: 850 nm
Main Stream: 50 Hz: 25 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720),60 Hz: 24 fps (2560 × 1920, 2048 × 1536, 1920 x 1080,1280 x 720)
Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480),60Hz: 24fps (704 × 480, 640 × 480),
Third Stream: 50 Hz: 6 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60 Hz: 8 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression: Main stream: H.265+/H.265/H.264+/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Scalable Video Coding (SVC: Support
Region Of Interest (ROI: Support 4 fixed region for each stream
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate: 64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-192 Kbps(MP2L2)
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: Yes
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP
Simultaneous Live View: Up to 20 channels
API: ONVIF (PROFILE S, PROFILE G), ISAPI
User/Host: Up to 32 users,3 levels: Administrator, Operator and User
Network Storage: Micro SD/SDHC/SDXC card (128 G), local storage and NAS (NFS,SMB/CIFS), ANR
Client: iVMS-4200
Web Browser: IE8+, Chrome31-44, Firefox 30.0 - 51
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, and white balance are adjustable by client software or web browser
Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
Wide Dynamic Range (WDR: 120 dB
Image Enhancement: BLC, 3D DNR, EIS
Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Ethernet Interface: 1 RJ45 10 M/100 M/1000 M Ethernet port,1 RS-485 interface (-S),1 1000M FC fiber optical interface (-/NFC)
On-Board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Audio: 1-ch 3.5 mm input (line in/Mic in), 1-ch 3.5mm output, dual-track, stereo
Alarm: 2 inputs, 2 outputs (up to 24 VD, 1A or 110 VAC, 500mA )
Reset Key: Yes
Fiber Optical: FC interface, single mode, single fiber, 20 km transmission distance, (Tx)1310 nm/ 1.25G, (Rx)1550 nm/1.25 G
Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection;Face Detection, audio exception detection, scene change detection, defocus detection
Power: 12 VDC ± 20%: 2.3 A, max. 28 W, 24 VAC ± 20%, 2.5 A, max. 50 to 60 Hz (for customization),three-core terminal block;-IZ, -IZHS/NFC: Hi-PoE: 42.5 VDC to 57 VDC, 0.9 A to 0.6 A, max. 34W;-Z: PoE (802.3at): 42.5 VDC to 57 VDC, max. 17W
Material: Aluminum alloy, engineering plastics
Dimension: Ø290 mm × 145.5 mm (Ø11.42" × 5.73")
Package Dimension: 453 mm × 393 mm × 385 mm (17.8" × 15.47" × 15.16")
Weight: 4.7 kg (10.3 lb.)
With Package Weight: 7.7 kg (16.8 lb.)
Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). -H: -40 °C to 60 °C (-40 °F to 140 °F),Humidity 95% or less (non-condensing)
General Function: One-key reset, anti-flicker, mirror, heartbeat, password protection, privacy mask, watermark, IP address filter
Protection: IP67, IK10
