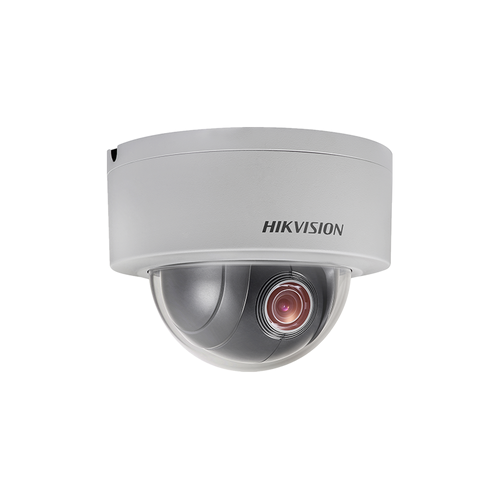

Hikvision DS-2DE3304W-DE (3MP) Compact Outdoor Mini PTZ Dome IP Camera

The Hikvision DS-2DE3304W-DE Mini PTZ Dome IP Camera is a compact yet powerful surveillance solution designed to cater to the intricate requirements of the semi-technical audience within the business and IT sectors. This 3MP camera combines high-resolution imaging with versatile pan, tilt, and zoom capabilities, ensuring detailed coverage of wide areas with ease. Ideal for both indoor and outdoor applications, its compact design does not compromise on functionality, offering 4x optical zoom for detailed viewing of distant objects. The camera's ability to deliver clear images in various lighting conditions, coupled with its efficient video compression, makes it a valuable asset for businesses seeking to enhance their security infrastructure with minimal bandwidth and storage requirements.

Key Features:

• High-Resolution Imaging: With a 3MP sensor, the camera captures sharp, detailed images, facilitating clear identification and analysis in surveillance footage.
• Compact PTZ Functionality: Despite its mini size, it offers 4x optical zoom along with smooth pan and tilt operations, allowing for flexible area coverage and focus adjustment.
• Adaptive Lighting: Equipped to handle diverse lighting conditions with features like WDR and 3D DNR, ensuring optimal image quality day and night.
• Efficient Compression: Utilizes H.264+ compression to reduce bandwidth and storage demands without sacrificing video quality, making it an economical choice for extended surveillance operations.
• Advanced Surveillance Features: Includes motion detection and intrusion detection, enabling proactive security measures and timely alerts.
• Robust Design: Suitable for both indoor and outdoor use, with an IP66 rating ensuring durability against environmental elements.

Compatibility:

• Fully integrates with Hikvision's NVRs and DVRs, providing a seamless surveillance ecosystem.
• Compliant with ONVIF standards, ensuring compatibility with a wide range of third-party surveillance systems for enhanced system flexibility.
• Supports remote monitoring through Hikvision's software applications, offering convenient access to live and recorded footage from anywhere.

Specifications:

• Resolution and Image Quality: 3MP (2048x1536)
• Sensor Type and Size: 1/2.8" Progressive Scan CMOS
• Lens: 2.8 mm to 12 mm, F1.6 to F2.7, varifocal lens offering wide to narrow FoV
• Field of View (FoV): 105° to 33.5° (Wide-Tele)
• Minimum Illumination: Color: 0.05 Lux @ (F1.6, AGC ON)
• Infrared (IR) Night Vision: Not specified, but equipped with low-light capabilities
• Pan/Tilt/Zoom (PTZ) Capabilities: 0° to 350° pan, 0° to 90° tilt, 4x optical zoom
• Video Compression: H.264+/H.264
• Frame Rate: Up to 30 fps at 3MP resolution
• Audio Capabilities: Supports audio monitoring (external microphone required)
• Storage Options: Onboard microSD slot up to 128GB
• Power Supply: 12V DC & PoE (802.3af)
• Connectivity and Network Features: Ethernet 10Base-T /100Base-TX, PoE (802.3af)
• Environmental Resistance: IP66-rated for outdoor and indoor use
• Software Features and Analytics: Motion detection, intrusion detection, line crossing detection
• Integration Capabilities: ONVIF, PSIA, CGI, ISAPI support
• Mobile and Remote Access: Via Hik-Connect or iVMS-4200 on iOS and Android

Package Contents:

• DS-2DE3304W-DE Mini PTZ Dome Camera
• Mounting Hardware
• Power Supply
• Installation Guide
• Software CD

Summary:
The Hikvision DS-2DE3304W-DE stands out for its compact design, high-resolution imaging, and versatile PTZ functionality, making it an excellent choice for businesses looking for a discreet yet powerful surveillance solution. Its adaptability to various lighting conditions, efficient data management, and compatibility with broader security systems underscore its value in a comprehensive security setup.
