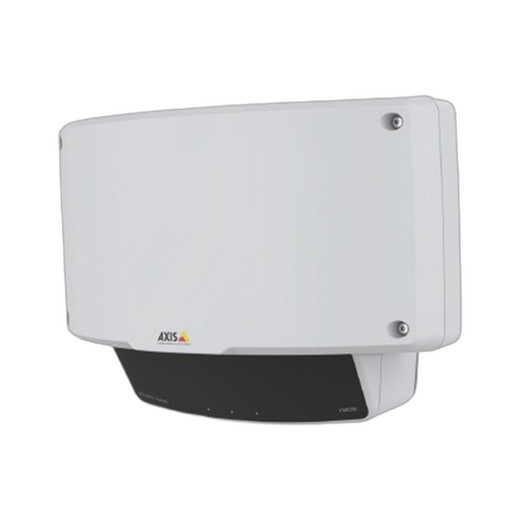

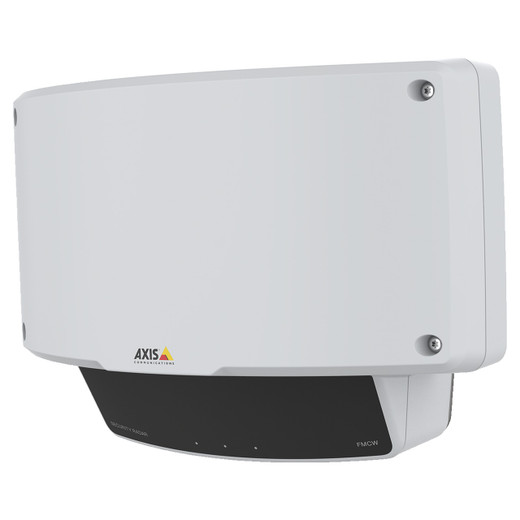

Axis D2110-VE Security Radar, 01564-001
Axis D2110-VE Security Radar, 01564-001
Write a Review

Axis

Axis D2110-VE Security Radar, 01564-001

Add to Cart for Sale Price!

$1,699.00
Adding to cart… The item has been added
SKU: 01564-001
Condition: New
Availability: Usually Ships Same Business Day
Warranty: 5-Year

Industry Leading Prices

Quantity Discounts
Available

Certified Experts

Pre and Post-sales
Support Available

Free Shipping on Orders Over $499

Same Day Shipping on
Most Orders

Axis D2110-VE Security Radar, 01564-001

Add to Cart for Sale Price!

$1,699.00
Add to Cart
Description

The Axis D2110-VE Security Radar, 01564-001, is an advanced surveillance solution designed to provide accurate and reliable detection in a wide range of environments. This smart, network-based device uses advanced radar technology to offer you extensive 180° area monitoring 24/7 and a low false alarm rate. Ideal in various outdoor installations, it offers two detection profiles for area and road monitoring. Utilizing sophisticated radar technology, this device is capable of detecting movement over expansive areas, even in complete darkness or adverse weather conditions. Unlike traditional surveillance cameras, the D2110-VE focuses on movement analysis, offering a low false alarm rate by distinguishing between real threats and harmless movements, such as swaying trees or small animals. This makes it an ideal choice for enhancing security in critical infrastructure, industrial sites, and other large outdoor areas where continuous monitoring is essential.

Key Features:

  • Advanced Radar Technology: Provides accurate detection over large areas, regardless of lighting or weather conditions.
  • Low False Alarm Rate: Differentiates between actual threats and harmless movements, reducing unnecessary alerts.
  • Durable Construction: IP66-rated housing ensures reliable performance in harsh outdoor environments.
  • Seamless Integration: Compatible with Axis video management systems and third-party platforms for easy system integration.
  • Wide Area Coverage: Reduces the need for multiple cameras, lowering overall security system costs.

Compatibility:

  • Fully compatible with Axis video management systems and other major third-party surveillance platforms.
  • Ideal for integration into large-scale security setups, particularly in outdoor environments.
Specifications
Profiles: Area monitoring Road monitoring
Sensor: Phased array FMCW (Frequency Modulated Continuous Wave)
Object data: Range, direction, velocity, object type
Frequency: 24.05–24.25 GHz
RF transmit power:
Recommended mounting height: 3.5 m (11 ft)a
Detection range: Area Monitoring Profile: 3–60 m (10–200 ft) when detecting a person 3–85 m (10–280 ft) when detecting a vehicle Road Monitoring Profile: 30–60 m (98–197 ft) at 105 km/h (65 mph) Check the user manual for the recommended positioning
Radial speed: Area Monitoring Profile: up to 55 km/h (34 mph) Road Monitoring Profile: up to 105 km/h (65 mph)
Field of detection: Horizontal: 180°
Speed accuracy: +/- 2 km/h (1.25 mph)
Distance accuracy: 0.7 m (2.3 ft)
Spatial differentiation: 3 m (9 ft)b
Data refresh rate: 10Hz
Coverage: 5600 m2 (61000 sq ft) for persons 11300 m2 (122000 sq ft) for vehicles
Coexistence zone: Frequency band: 24 GHz Radius: 350 m (1148 ft) Recommend number of radars: up to 6
Object classification: Humans, vehicles, unknown
Radar controls: Multiple detection zones, line crossing detection with one or two lines, exclude zones with filters for short-lived objects, object speed, and object type. Radar transmission on/off, coexistence, reference map with rotation and cropping, grid opacity
Model: ARTPEC-7
Memory: 1024 MB RAM, 512 MB Flash
Video compression: H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG
Resolution: 1920x1080 HDTV 1080p to 640x360
Frame rate: Up to 10 fps in all resolutions
Video streaming: Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265
Image settings: Compression, rotation: 0°, 90°, 180°, 270° including corridor format, dynamic text and image overlay
Audio streaming: Audio output via edge-to-edge technology
Audio input/output: Speaker pairing
Network protocols: IPv4/v6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP,
Application Programming Interface: Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-click cloud connection ONVIF® Profile G, ONVIF® Profile S, ONVIF® Profile T, and ONVIF® Profile M specification at onvif.org
Edge-to-edge: Speaker pairing PTZ camera pairing
Analytics: Radar motion detection (detect, track, and classify objects), Radar autotracking Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap
Event conditions: Analytics, object data, supervised external input, edge storage events, time scheduled Radar data failure Casing open, shock detected MQTT subscribe
Event actions: File upload: FTP, SFTP, HTTP, HTTPS, network share and email Notification: email, HTTP, HTTPS and TCP External output activation, relay activation MQTT publish Pre- and post-alarm video buffering Overlay text Radar autotracking,
Data streaming: Event data Analytics data with object GPSc position and velocity
Built-in installation aids: Reference map calibration, sensor for tilt angle, GPS positionc
Edge security: Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection
Network security: IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall
Documentation: AXIS OS Hardening Guide Axis Vulnerability Management Policy Axis Security Development Model AXIS OS Software Bill of Material (SBOM)
Casing: IP66-, NEMA 4X- and IK08-rated Aluminum and plastic casing Color: White NCS S 1002-B
Sustainability: PVC free
Power: Power over Ethernet (PoE) IEEE 802.3at, Type 2 Class 4, typical 11 W, max 15 W Power over Ethernet (PoE) IEEE 802.3bt, Type 3 Class 5 or Axis Midspan 60 W required for PoE Out 8–28 V DC, typical 10 W, max 15 W
Connectors: DC input RJ45 1000BASE-T PoE RJ45 1000BASE-T PoE output to power an external PoE device Relay: 2-pin terminal block I/O: 6-pin 2.5 mm terminal block for four configurable inputs/outputs
Relays: 1x 1 form A, 1 NO, max 5A, 24V DC Expected lifetime 25,000 operations
Storage: Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit)
Operating conditions: -40 °Cto 60 °C (-40 °Fto 140 °F) Humidity 10–100% RH (condensing)
Storage conditions: -40 °Cto 65 °C (-40 °Fto 149 °F)
Approvals: Radio EN 300440, EN 301489-1, EN 301489-51, EN 62311, FCC Part 15 Subpart C EMC EN 55032 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, RCM AS/NZS CISPR 32 Class A
Dimensions: 285x206x 152 mm (11.2 x 8.1 x6.0 in)
Weight: 2.4 kg (5.3 lb)
Included accessories: Installation guide, connector kit, pipe adapters, cable gland, cable gaskets, Windows® decoder 1-user license
Optional accessories: AXIS T91R61 Wall Mount AXIS T91B47 Pole Mount AXIS T94R01B Corner Bracket AXIS T8415 Wireless Installation Tool For more accessories, see axis.com
Applications: Radar motion detection (detect, track, and classify objects) AXIS Speed Monitor AXIS Radar Integration for Microbus Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap
Supporting software: AXIS Radar Autotracking for PTZ (Slew to Cue) For supported cameras, see axis.com/products/axis-radar-autotracking
Video management software: AXIS Camera Station, video management software from Axis Application Development Partners available at axis.com/vms
Languages: English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese
Warranty: 5-year warranty
