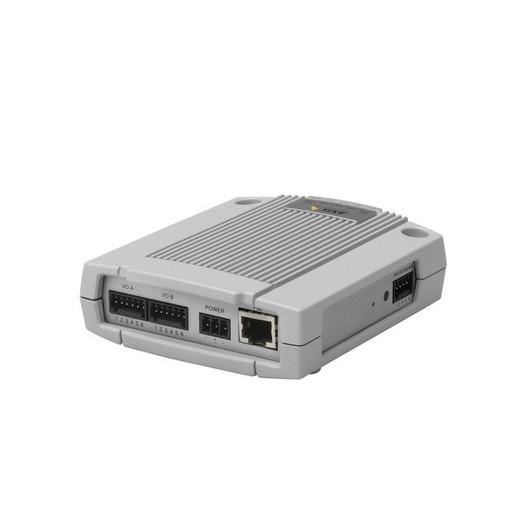

AXIS P8221 I/O Audio Module

SKU: P8221
UPC: 7331021030367
Condition: New
Availability: No Longer Available
Warranty: 5-year warranty

Industry Leading Prices

Quantity Discounts
Available

Certified Experts

Pre and Post-sales
Support Available

Free Shipping on Orders Over $499

Same Day Shipping on
Most Orders

AXIS P8221 I/O Audio Module

Add to Cart
Description

Introducing the AXIS P8221 I/O Audio Module – Your Gateway to Enhanced Network Audio Capabilities

In the world of IP Surveillance, seamless integration of audio into your network video systems can make all the difference. The AXIS P8221 I/O Audio Module is here to revolutionize your surveillance setup by providing you with the audio capabilities you need. With 8 digital I/O ports, this module empowers you to configure the ports as input or output, depending on the attached accessory, unlocking a world of possibilities for your surveillance system.

Key Features:

  1. Versatile Digital I/O Ports: The AXIS P8221 offers a total of eight digital I/O ports that can be easily configured for various purposes. Whether you need to connect sensors, alarms, or other devices, these ports provide you with the flexibility to adapt your surveillance system to your specific needs.

  2. Trigger Options: This module opens up the ability to trigger actions based on events. Connect a glass break detector to trigger alarms in the event of a security breach. Link control devices or relays to remotely open and close doors, enhancing the security of your premises.

  3. Two-Way Full-Duplex Audio: The AXIS P8221 supports two-way full-duplex audio, ensuring crystal-clear communication. Whether it's for security personnel to communicate effectively or for remote monitoring, this feature ensures you don't miss a beat.

  4. Power over Ethernet (PoE): PoE capability simplifies your installation by providing both power and data over a single Ethernet cable. This not only reduces the clutter of additional power cables but also allows for more flexible placement of the module.

Package Contents:

  • Power Supply: Included in the package is a reliable power supply to ensure your AXIS P8221 I/O Audio Module operates seamlessly.

  • Installation Guide: We provide you with a comprehensive installation guide to assist you in setting up your module efficiently and effectively.

  • Mounting and Connector Kits: To simplify installation even further, we include mounting and connector kits, ensuring a secure and professional setup.

  • Windows Decoder: The package also contains a Windows Decoder, making it easier for you to integrate the module into your surveillance system.

Specifications:

  • Digital I/O Ports: 8
  • Two-Way Audio: Yes, full-duplex
  • Power over Ethernet (PoE): Yes
  • Dimensions: [Insert dimensions here]
  • Weight: [Insert weight here]

Compatibility Information:

To ensure seamless integration into your existing network video systems, please check compatibility with your specific hardware and software requirements. The AXIS P8221 I/O Audio Module is designed to work effectively with a wide range of surveillance equipment and software solutions, making it a versatile choice

Specifications
Digital I/O: 8 configurable I/O ports Input ports: min -40 V DC, max 40 V DC Output ports: Open-drain, max load 100 mA, max voltage 40 V DC
I/O functionality: Input trigger Output toggle/pulse
Audio streaming: Two-way, full and half duplex
Audio encoding: Encoding: AAC-LC 8, 16 or 32 kHz 8–128 kbit/s G.711 PCM 8 kHz 64 kbit/s G.726 ADPCM 8 kHz 32 or 24 kbit/s Decoding: G.711 PCM 8 kHz 64 kbit/s G.711 PCM 16 kHz 128 kbit/s G.726 ADPCM 8 kHz 32 or 24 kbit/s
Audio input/output: Input: Microphone/Line in, 48 V phantom powered balanced microphone Output: Line out, Speaker 0,5 W RMS at 4 ?
Functionality: Audio streaming, play uploaded (WAV, AU) and record (AU) clips AU (G.711 µ-law 8-bit 8/16 kHz Mono), WAV (PCM 16-bit 8/16/32 kHz Mono) Audio detection trigger
Security: Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log
Supported protocols: IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
Application Programming Interface: Open API for software integration, including VAPIX®
Web browser: Configuration and management, I/O monitor/control, Two-way audio, Synchronize audio with external video source, Record (video and/or audio) to file (ASF)
System requirements: AXIS Media Control (AMC) is required to access live video and audio in Live view
Event triggers: Audio detection External inputs On boot
Event actions: Notification: email, HTTP, TCP External output port Play audio clip
Casing: Metal casing, standalone or wall mount
Memory: 64 MB RAM, 128 MB Flash
Power: 8–34 V DC, max 8.2 W 20–24 V AC, max 13.7 VA Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3
Connectors: RJ45 10BASE-T/100BASE-TX PoE Terminal blocks: power (8–34 V DC/ 20–24 V AC), I/O, Balanced microphone, Speaker out, RS232/RS485/RS422 serial port 3.5 mm mic/line in, 3.5 mm line out
Operating: 0 °Cto 50 °C (32 °Fto 122 °F)
conditions: Humidity 20–80% RH (non-condensing)
Approvals: EN 55022, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class BEN 60950-1
Dimensions: 98,9 x 118 x 31,4 mm (3.9x4.6x 1.3 in)
Weight: 335 g (0.7 lb)
Included: Power supply, Mounting and connector kits, Installation guide,
accessories: Windows decoder user license
Optional accessories: For more accessories, see www.axis.com
Languages: English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese
Warranty: 5-year warranty
