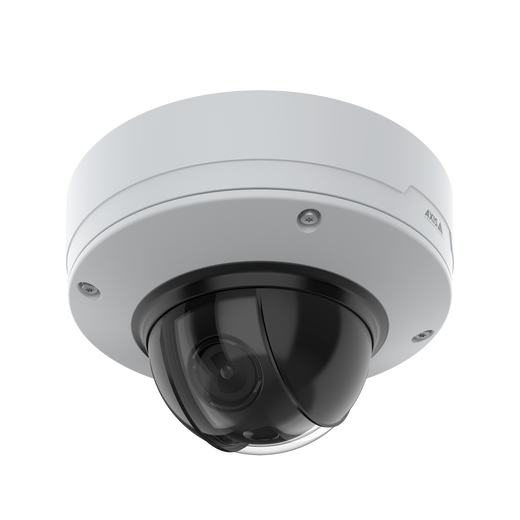

Axis Q3538-LVE (8MP) 4K Lightfinder Forensic WDR OptimizedIR Outdoor PTZ Dome IP Camera, 02225-001

The Axis Q3538-LVE 4K PTZ Outdoor Dome IP Camera, model 02225-001, sets a new standard for comprehensive outdoor surveillance with its superior image quality and advanced analytical capabilities. Built on the powerful ARTPEC-8 chip, this camera delivers crisp, detailed 4K resolution video, ensuring that no critical detail is missed. The camera is equipped with OptimizedIR technology and an IR-shielded dome, which together prevent IR reflections and guarantee clear, sharp images even in complete darkness or adverse weather conditions. With Lightfinder 2.0 and Forensic WDR, the Q3538-LVE excels in challenging lighting, capturing vivid colors in low light and maintaining detail in high-contrast scenes. Electronic image stabilization minimizes the effects of vibration, ensuring stable, clear images, making this camera ideal for monitoring expansive outdoor areas like city streets, parks, and large commercial properties.

The Axis Q3538-LVE is not just a camera; it's a smart security device capable of advanced analytics thanks to its deep learning processing unit (DLPU). This enables the camera to perform complex analytics directly on the device, eliminating the need for additional servers and making the system more efficient and scalable. With AXIS Object Analytics, the camera can detect and classify humans, vehicles, and types of vehicles, tailored to specific surveillance needs. The robust metal casing and high durability ratings (IK10+ for impact, IP66, and IP6K9K for dust and water resistance) ensure the camera's resilience in harsh environments. Additionally, built-in cybersecurity features like secure boot and Axis Edge Vault protect against unauthorized access, making the Q3538-LVE a secure, reliable choice for advanced surveillance needs.

Key Features:

• Ultra-High-Definition Imaging: Equipped with a 1/1.2" Progressive Scan RGB CMOS sensor and a motorized lens (6.2 - 12.9 mm), the camera delivers stunning 4K resolution (3840 x 2160 max) for unparalleled detail and clarity in surveillance footage.
• Extensive Coverage: Features endless pan (-180° to 180°), tilt (-43° to 80°), and rotate (-175° to 175°) capabilities, allowing for complete 360-degree coverage. The wide field of view, ranging from 103° to 49° horizontally and 56° to 28° vertically, ensures comprehensive monitoring of large areas.
• Advanced Night Vision: Incorporates Lightfinder and OptimizedIR technologies, enabling clear, detailed images in complete darkness up to 130 ft, ensuring reliable surveillance around the clock.
• Intelligent Video Analytics: Comes with Axis Object Analytics for sophisticated detection and tracking of moving objects, and a Deep Learning Processing Unit that enhances the accuracy of real-time event analysis. The camera also supports integration with third-party applications for customized surveillance solutions.
• Efficient Data Management: Utilizes Zipstream technology with H.265, H.264, and JPEG compression options to optimize storage and bandwidth use without compromising video quality.
• Durable Construction: Built to withstand harsh outdoor conditions with an IP66, IK10+, and NEMA4X rating, ensuring protection against dust, water, impact, and extreme temperatures.
• Seamless Integration: Features Power Over Ethernet (PoE) for easy installation and an open API for compatibility with a wide range of network systems and software.

Compatibility:

This camera is designed for flexible integration into existing surveillance systems, supporting a broad range of network protocols and platforms. The open API ensures ease of custom application development and compatibility with third-party software, enhancing the camera's utility in complex security setups.

Specifications:

• Lens: Motorized 6.2 - 12.9 mm
• Sensor: 1/1.2" Progressive Scan RGB CMOS
• Focus: 1.6-2.6
• Minimum Illumination: Color: 0.07 lux, B&W: 0 lux
• Field of View: Horizontal: 103° to 49°, Vertical: 56° to 28°
• Resolution: 3840 x 2160 max
• Night Time Viewing: Lightfinder & OptimizedIR up to 130 ft
• Video Compression: Zipstream/H.265/ H.264/ JPEG (MJPEG)
• Environmental Rating: IP66, IK10+, NEMA4X
• Power Over Ethernet: Yes
• Operating Conditions: -58 °F to 122 °F
• On-Board Storage: Built-in microSD/SDHC/SDXC slot
• Dimensions (H x Dia.): 4.9 in x 7.2 in

Package Contents:

• Axis Q3538-LVE Camera
• Installation Guide
• Windows® Decoder 1-user License
• Drill Hole Template
• Terminal Block Connectors
• RESISTORX® L-key
• Connector Guard
• Cable Gasket
• Conduit Adapter
• Mounting Bracket
• Weather Shield

This Axis Q3538-LVE 4K PTZ Outdoor Dome IP Camera package offers a comprehensive surveillance solution with high-performance imaging, extensive coverage, and intelligent analytics, all housed in a durable outdoor design, ensuring an advanced security setup for any business or IT environment.
