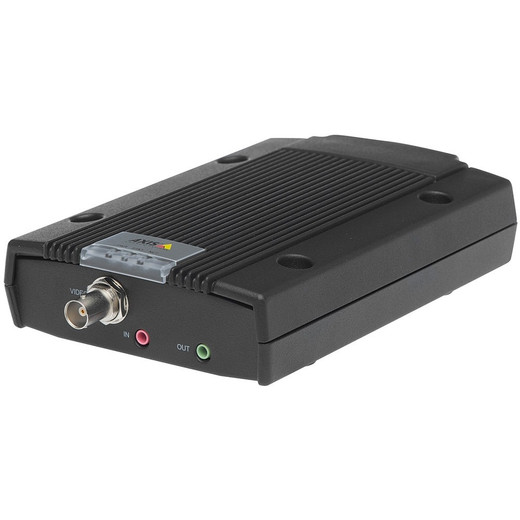

Axis Q7411 1-Channel Video Encoder 10-Pack, 0518-021

Description

The Axis Q7411 Video Encoder, available in a 10-pack under part number 0518-021, is a high-performance solution designed for transforming analog video signals into high-quality digital streams. This single-channel encoder supports advanced H.264 and MJPEG compression, ensuring efficient bandwidth usage without compromising video quality.

Key Features:

  • High Frame Rate: Supports 60/50 frames per second across all resolutions, providing smooth and clear video playback, crucial for capturing fast-moving objects or detailed activities.
  • Two-Way Audio: Enhances the video system's capabilities by allowing audio signals to be transmitted and received, enabling interactive communications or audio monitoring.
  • Coax PTZ Control: Offers control over Pan-Tilt-Zoom (PTZ) functions via coaxial cables, simplifying the integration and operation of PTZ cameras without the need for additional wiring.

Package Contents:

  • 10 units of the Axis Q7411 Video Encoder, designed for bulk installation and integration into existing surveillance setups. Note that the power supply is not included in the package.

Specifications:

  • The encoder employs H.264 and MJPEG compression methods to optimize video streaming and storage.
  • It is designed for single-channel operation, making it ideal for individual camera connections.
  • The device facilitates two-way audio communication, adding an auditory dimension to visual surveillance.

Compatibility:

  • The Q7411 is tailored for seamless integration with various surveillance systems, leveraging its compatibility with a wide range of cameras and network infrastructures. Its support for PTZ control and two-way audio makes it versatile for different surveillance applications.

This package offers a robust solution for businesses looking to modernize their analog surveillance systems with digital capabilities, ensuring high-quality video, efficient operation, and enhanced surveillance features.

Specifications
Video compression: H.264 (MPEG-4 Part 10/AVC) Baseline and Main profile Motion JPEG
Resolution: 176x120 to 720x576
Frame rate: H.264: 60/50 (NTSC/PAL) fps in all resolutions Motion JPEG: 60/50 (NTSC/PAL) fps in all resolutions
Video streaming: Multiple, individually configurable streams in H.264 and Motion JPEG Controllable frame rate and bandwidth VBR/CBR H.264
Pan/Tilt/Zoom: Wide range of analog PTZ cameras supported (drivers available for download at www.axis.com) Supports Windows compatible joysticks Compatible with Coaxitron® by Pelco 100 preset/camera, Guard tour, PTZ control queue
Image settings: Compression, color, brightness, contrast, aspect ratio correction, text and image overlay, mirroring of images, privacy mask, enhanced deinterlace filter, video termination, anti-aliasing, temporal noise filtering Rotation: 90°, 180°, 270°
Audio streaming: Two-way, full duplex and half duplex
Audio encoding: AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Configurable bit rate
Audio input/output: External microphone or line input and line output
Security: Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log
Supported protocols: IPv4, IPv6 USGv6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS
Application Programming Interface: Open API for software integration, including VAPIX® and AXIS Camera Application Platform; One-click cloud connection ONVIF® Profile S and ONVIF® Profile G, specification at www.onvif.org
Analytics: AXIS Video Motion Detection 4, active tampering alarm, audio detection Support for AXIS Camera Application Platform enabling installation of third-party applications
Event triggers: Analytics, external input, video loss, audio detection
Event actions: Overlay text, video and audio recording to edge storage, pre-and post-alarm video buffering, external output activation, send SNMP trap, play audio clip, status LED PTZ: PTZ preset, start/stop guard tour File upload via FTP, SFTP, HTTP, HTTPS
Data streaming: Event data
Casing: Aluminum casing Casing color: Black - NCS S 9000-N
Memory: 256 MB RAM, 128 MB Flash
Power: Power over Ethernet IEEE 802.3af Class 2 8–28 V DC input, max. 5.3 W
Connectors: Analog composite video BNC input RJ45 10BASE-T/100BASE-TX PoE Terminal block for four configurable external inputs/outputs Terminal block for RS485/RS422 (full duplex) 3.5 mm jack for microphone or line input (mono) 3.5 mm jack for audio output (mono
Storage: Support for microSD/microSDHC/microSDXC card Support for SD card encryption Support for recording to network-attached storage (NAS) For SD card and NAS recommendations see www.axis.com
Operating conditions: 0 °Cto 60 °C (32 °Fto 140 °F), 0 °C to 50 °C (32 °F to 122 °F) with included Power supply Humidity 10-85% RH (non-condensing)
Approvals: EMC EN 55022 Class B, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24, IEC/EN/UL 60950-1
Weight: 520 g (1.1 lb)
Included accessories: Installation guide, Windows decoder 1-user license, mounting and connector kits, power supply
Video management software: AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners available on www.axis.com/techsup/software
Warranty: 5-year warranty
