Digital Watchdog

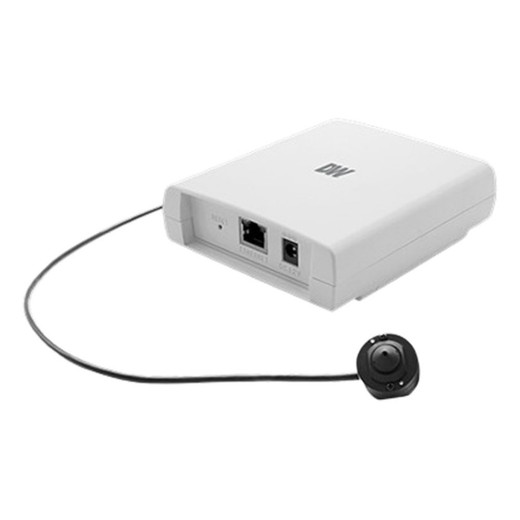

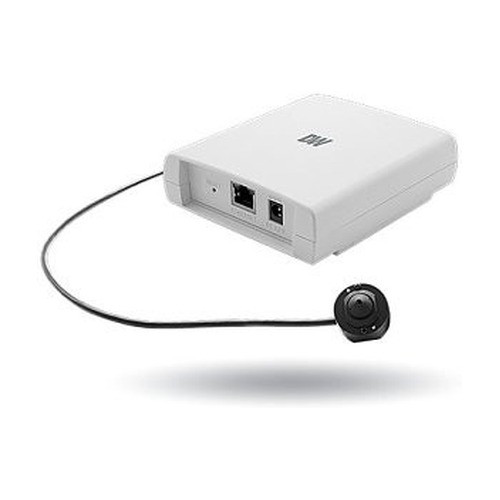

Digital Watchdog DWC-MPH2W28TW (2.1MP) AI Outdoor Pinhole IP Camera

Add to Cart for Sale Price!

$855.00
Adding to cart… The item has been added
SKU: DWC-MPH2W28TW
UPC: 812226034727
Condition: New
Availability: Usually Ships Same Business Day
Warranty: 5-Year Warranty

Industry Leading Prices

Quantity Discounts
Available

Certified Experts

Pre and Post-sales
Support Available

Free Shipping on Orders Over $499

Same Day Shipping on
Most Orders

Digital Watchdog DWC-MPH2W28TW (2.1MP) AI Outdoor Pinhole IP Camera

Add to Cart for Sale Price!

$855.00
Description

The Digital Watchdog DWC-MPH2W28TW (2.1MP) AI Outdoor Pinhole IP Camera is an advanced surveillance solution designed to deliver high-definition video quality in the most demanding environments. Preloaded with IVA. Equipped with a 2.1-megapixel sensor, this camera captures clear, detailed images, ensuring no critical moments are missed. Its discreet pinhole design allows for covert installation, making it ideal for sensitive areas where surveillance needs to be unobtrusive. Enhanced with AI capabilities, the DWC-MPH2W28TW can distinguish between human and vehicular movement, significantly reducing false alarms and improving security efficiency.

Key Features:

  • High Resolution 2.1 Megapixel Sensor: Captures video in exquisite detail, providing sharp images for reliable identification.
  • AI-Powered Detection: Intelligent algorithms to differentiate between human and vehicle motion, enhancing the precision of security alerts.
  • Adaptive Night Vision: Equipped with advanced low-light capabilities, ensuring clear footage even under minimal lighting conditions.
  • Covert Pinhole Lens: Minimal visibility installation for discreet monitoring without compromising on quality.
  • Wide Dynamic Range (WDR): Balances light conditions to capture details in scenes with contrasting brightness.
  • H.265 Compression: Reduces file sizes and bandwidth usage, allowing for efficient storage and streaming of video data.

Compatibility:

  • Compatible with major NVRs and surveillance management software via ONVIF protocol.
  • Supports both iOS and Android devices for mobile viewing and control.
  • Integrates seamlessly with existing IP-based security systems.

Package Contents:

  • DWC-MPH2W28TW Camera Unit
  • Mounting Hardware
  • Installation Guide
  • Warranty Card
  • Software CD

Summary: The Digital Watchdog DWC-MPH2W28TW stands out in the realm of IP surveillance by combining high-resolution video, AI-driven functionality, and covert monitoring capabilities. Designed for both indoor and outdoor use, this camera is engineered to perform under any conditions, offering businesses an effective tool to enhance their security infrastructure without being conspicuous.

Specifications
Image sensor: 2.1MP/1080p 1/2.8" CMOS sensor
Minimum Scene Illumination in color: 0.065 lux (color)
Total Pixels: 1945 (H) X 1109 (V)
Advanced Lens Features: Auto focus, Motorized zoom
Focal Length: 2.8mm
Horizontal Field of View (HFOV: 106.6°
IR Distance: NA
Lens Type: Fixed Lens
Vertical Field of View (VFOV: 55.7°
I/O Alarm in/out: 1 input, 1 output
IVA license: Intrusion, line crossing, counting line, loitering, enter, exit, tamper
3D digital noise reduction: Smart DNR™ 3D Digital Noise Reduction
Auto gain control: Auto
Backlight compensation (BLC: Yes
Day and night: Day (color)
De-fog: Yes
Memory slot: Micro SD/SDHC/SDXC class 10 card (card not included), Up to 1TB micro SD / FAT32
Mirror/flip: Yes
Motion Detection: Yes
Operational Notifications: Alarm output activation, Email, FTP server, SD card recording
Privacy Zones: 16 programmable privacy masks
Sharpness: Yes
Shutter Mode: Anti-Flicker, Auto, Manual, Slow Shutter
Shutter Speed: 1/15 ~ 1/32000
Slow Shutter Speed: Off, x10, x2, x3, x5, x6, x7.5
White Balance: Yes
Wide Dynamic Range (WDR: True WDR 120dB
Bitrate Control: Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
IP: IPv4
LAN: RJ45 (10/100Base-T)
Network resolution: H.264: 2.1MP/1080p, 720p, 640x360, CIF, SIF, MJPEG: 2.1MP/1080p, 720p, 800x600, 768x432, 704x576, 480p, VGA, 640x360, CIF, SIF
Network Web Viewer: Google Chrome® browser, Linux® OS, Mac® OS, Microsoft Edge® browser, Mozilla Firefox® browser, Safari® browser, Windows® OS
Protocol: DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP)
Security: 802.1x, Digest authemtication (ID/PW), HTTPS (TLS), IP filtering
Stream Speed: Up to 30fps at all resolutions
Streaming Capability: Dual-stream at different rates and resolutions
Video Bitrate: 100Kbps~10Mbps, multi-rate for preview and recording
Video Compression Type: H.264, H.265, MJPEG
Video Management Software: Any ONVIF conformant CMS, DW Spectrum® IPVMS, Milestone Systems
Environmental Operating Humidity: 10-90% (non-condensing)
Environmental Operating Temperature: -4°F ~ 122°F (-20°C ~ 50°C)
Mounting Accessories (Required/Optional: Optional. Sold separately
Camera Dimensions (H X W X D: Cable length: 21.32ft (6.5m), Camera sensor: 1.1" x 1.08" (28.1 x 27.5mm), Main unit: 4.21" x 4.88" x 1.41" (107 x 124 x 36mm)
Camera Weight: 0.92 lbs (0.42kg)
Housing: Pinhole
Housing Color: White
Materials: Main unit: Plastic, Sensor Camera: Aluminum die-casting
American wire gauge (AWG: Cable type #18
Power Consumption: DC12V: 3.6W, 300mA, PoE: max 4.0W, 333ma
Power Requirements: Adapter not included, PoE
Warranty: 5 Year Warranty
