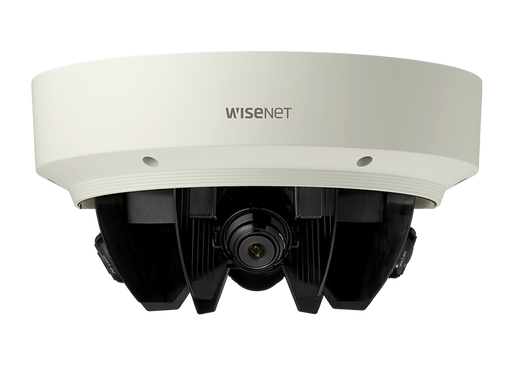

Hanwha PNM-9000VQ 20MP (5MPx4) Total Multi-Sensor Multi-Directional Outdoor PTZ Dome IP Camera

The Hanwha PNM-9000VQ IP camera pushes the boundaries of video surveillance, offering exceptional coverage and image quality for demanding applications. This innovative camera features four 5-megapixel sensors, combining to deliver a staggering 20-megapixel resolution image. Its multi-directional design allows for simultaneous monitoring of multiple areas, significantly reducing installation costs and complexity compared to deploying several traditional cameras. Additionally, the PNM-9000VQ boasts advanced features like WiseStream II technology, minimizing storage requirements without compromising image quality.

Key Features

• Versatile Sensor Configuration:

  • This camera is equipped with four interchangeable 2MP or 5MP lens modules, offering a flexible resolution range from 8MP to 20MP depending on your lens combination.
  • Achieve high frame rates with up to 60fps at 2MP or 30fps at 5MP (H.265/H.264).

• Exceptional Dynamic Range:

  • Benefit from outstanding image quality with WDR capabilities of up to 150dB with 2MP lens modules or 120dB with 5MP lens modules.

• Multiple Lens Options:

  • Choose from a selection of fixed focal lenses, including 2.4mm, 2.8mm, 3.6mm, and 6mm for 2MP modules, or 3.7mm, 4.6mm, and 7mm for 5MP modules.

• Advanced Video Codecs:

  • Enjoy efficient video compression with support for H.265, H.264, and MJPEG codecs.
  • Multi-streaming support optimizes bandwidth usage.

• Built-in Analytics:

  • Harness the power of video analytics for enhanced security, including defocus detection and WiseStream II technology.

• Storage and Memory:

  • With four SD/SDHC/SDXC memory slots, you have ample storage options for your surveillance footage.

• Rugged Design:

  • This camera is built to withstand outdoor conditions with an IP66 rating for water and dust resistance.
  • It is also IK10-rated for vandal resistance, ensuring durability in high-risk environments.

• Wide Temperature Range:

  • Operating reliably between -40°C to +55°C (-40°F to +131°F), this camera is suitable for various climates and conditions.

Compatibility

The Hanwha PNM-9000VQ camera is designed to seamlessly integrate into your existing surveillance infrastructure, making it compatible with a wide range of systems and devices. Its multi-sensor, multi-directional capabilities allow for versatile monitoring options.

Specifications:

• Resolution: 20MP (combined; 4 x 5MP sensors)
• Sensor Type: CMOS, 1/2.7"
• Lens: Interchangeable (3.7mm, 4.6mm, 7.0mm options available; sold separately)
• Minimum Illumination: 0.01 lux (color), 0 lux (IR on)
• Night Vision: Up to 30 meters (98.4 feet)
• PTZ: No
• Video Compression: H.265, H.264, MJPEG
• Frame Rate: Up to 30 fps @ all resolutions (depending on sensor configuration)
• Audio: No
• Storage: MicroSD card slots (4x; up to 256GB each, 1TB total)
• Power Supply: PoE (802.3af), 12V DC
• Connectivity: RJ45 Ethernet port
• Environmental Resistance: IP66 (dustproof, water-resistant)
• Software Features: WDR, Defog, Hallway View, LDC, Analytics (motion detection, tampering, etc.)
• Integration: ONVIF compliant
• Mobile and Remote Access: Supported through web browser and mobile app

Package Contents:

• Hanwha PNM-9000VQ camera
• Mounting bracket
• Power cable (optional)
• User manual
• Warranty card

Summary:

The Hanwha PNM-9000VQ stands alone as a powerful and versatile solution for large-scale surveillance projects. Its exceptional 20MP resolution, multi-directional design, and advanced features make it ideal for businesses and organizations requiring comprehensive monitoring of critical areas, with minimal installation complexity and efficient storage management.
