Imaging Device:
1/1.8" CMOS
Resolution:
3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768,; 800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360
Max. Framerate:
H.265/H.264: Max. 30fps/25fps(60Hz/50Hz); MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination:
Color: 0.05Lux(F1.6, 1/30sec); BW: 0.005Lux(F1.6, 1/30sec), 0Lux(IR LED on)
Video Out:
CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation; USB: Micro USB Type B, 1280x720 for installation
Focal Length (Zoom Ratio:
4.5~10mm(2.2x) motorized varifocal
Max. Aperture Ratio:
F1.6(Wide)~F2.65(Tele)
Angular Field of View:
H:101.4°(Wide)~45.5°(Tele) / V:53.6°(Wide)~25.5°(Tele) / D:120.7°(Wide)~52.3°(Tele)
Min. Object Distance:
0.5m(1.64ft)
Focus Control:
Simple focus
Lens Type:
P iris
Pan / Tilt / Rotate Range:
0˚~360˚ / -45˚~85˚ / 0˚~355˚
Camera Title:
Displayed up to 85 characters
Day & Night:
Auto(ICR)
Backlight Compensation:
BLC, WDR, SSDR
Digital Noise Reduction:
SSNRⅤ
Digital Image Stabilization:
Stabilization Support(built-in gyro sensor)
Motion Detection:
8ea, polygonal zones
Privacy Masking:
6ea, rectangle zones; - Color: GrayBlack/White
Gain Control:
Low / Middle / High
White Balance:
ATW / AWC / Manual / Indoor / Outdoor
LDC:
Support
Electronic Shutter Speed:
Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video Rotation:
Flip, Mirror, Hallway view(90˚/270˚)
Analytics:
Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection
Alarm I/O:
Input 1ea / Output 1ea / DC 12V Power(Max. 50mA) 1ea
Alarm Triggers:
Analytics, Network disconnect, Alarm input
Alarm Events:
File upload via FTP and e-mail; Notification via e-mail; SD/SDHC/SDXC or NAS recording at event triggers; Alarm output; Handover; Audio playback
Audio In:
Selectable(mic in/line in/Built in mic); Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out:
Line out, Max.output level: 1Vrms
IR Viewable Length:
30m(98.42ft)
Ethernet:
Metal shielded RJ-45(10/100/1000 BASE-T)
Video Compression:
H.265/H.264: Main/High, MJPEG
Audio Compression:
G.711 u-law /G.726 Selectable; G.726(ADPCM) 8KHz, G.711 8KHz; G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps; AAC-LC: 48Kbps at 16KHz
Smart Codec:
Manual(5ea area), WiseStreamⅡ
Bitrate Control:
H.264/H.265: CBR or VBR; MJPEG: VBR
Streaming:
Unicast(6 users) / Multicast; Multiple streaming(Up to 3 profiles)
Protocol:
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Security:
HTTPS(SSL) Login Authentication; Digest Login Authentication; IP Address Filtering; User access log; 802.1X Authentication(EAP-TLS, EAP-LEAP); Device Certificate(Hanwha Techwin Root CA); Secure boot
Application Programming Interface:
ONVIF Profile S/G/T; SUNAPI(HTTP API); Wisenet open platform
Webpage Language:
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,; Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage:
Pre-installed with 32GB Micro SD to support 10,000 LPR images
Memory:
4096MB RAM, 512MB Flash
Operating Temperature / Humidity:
-40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH; * Start up should be done at above -30°C
Storage Temperature / Humidity:
-50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification:
IP66/IP67/IP6K9K, IK10+, NEMA4X
Input Voltage:
PoE+(IEEE802.3at), 12VDC
Power Consumption:
PoE+: Max 20.00W, typical 17.00W; 12VDC: Max 18.70W, typical 15.00W

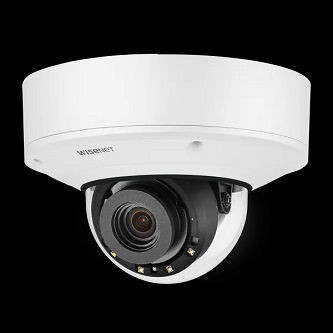

Color / Material:
White / Aluminum
RAL Code:
RAL9003
Product Dimensions / Weight:
Ø180x125mm(7.09x4.92"), Weight : 1.90Kg (4.19lb)
Compatible Conduit hole / Gangbox:
3/4"(M25); Single, Double, 4"Octagon, Square
Hanging Mount (Dome:
SBP-187HMW
Solution:
Community Traffic
Speed Description:
Moderate Speed
Lane Coverage:
1 lane (3.6m/12ft Wide) (with built in IR)
Speed limit:
Up to 45mph (with built in IR)
Min. Forward Distance:
12m (38ft)
Max. Forward Distance:
12m (40ft) (with built in IR)
Max. Horizontal Angle:
25°
Max. Vertical Angle:
25°
Horizontal Offset:
Up to 5m (18ft)
Camera Height:
Up to 5m (18ft)
Vehicle Recognition:
Make : 70+; Model : 600+; Color : 11
Available Countries:
USA, Canada, Mexico, Brazil, Uruguay, Paraguay, Argentina, Colombia, Chile
