Write a Review 40% OFF

Hanwha

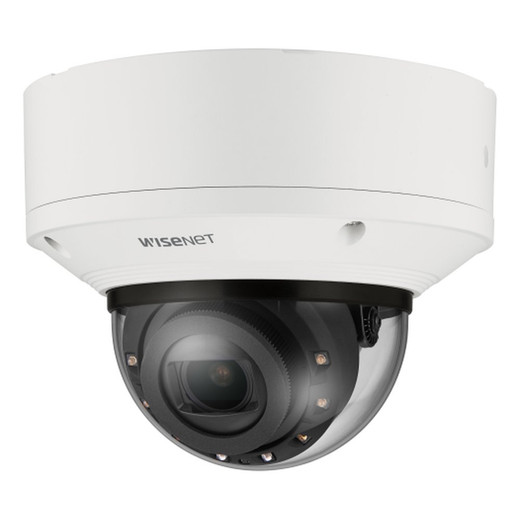

Hanwha XND-6083RV (2MP) IR Vandal-Resistant Indoor Dome IP Camera

$1,200.00
$780.00

Add to Cart for Sale Price!

$722.99
Adding to cart… The item has been added
SKU: XND-6083RV
UPC: 8801089201126
Condition: New
Availability: Usually Ships Same Business Day
Warranty: 3-year warranty

Industry Leading Prices

Quantity Discounts
Available

Certified Experts

Pre and Post-sales
Support Available

Free Shipping on Orders Over $499

Same Day Shipping on
Most Orders

Hanwha XND-6083RV (2MP) IR Vandal-Resistant Indoor Dome IP Camera

$1,200.00
$780.00

Add to Cart for Sale Price!

$722.99

Frequently Bought Together

Description

The Hanwha XND-6083RV Vandal Resistant 2MP IR Dome IP Camera with AI Engine is designed to deliver exceptional surveillance capabilities in a compact and durable form factor. With a 2MP resolution and a 2.8~12mm (4.3x) motorized varifocal lens, this camera ensures detailed coverage across varying distances, making it suitable for diverse settings. The camera boasts excellent low-light performance, with a color illumination level of just 0.01 Lux, further enhanced by IR LEDs capable of illuminating up to 50 meters, ensuring clarity even in complete darkness. The extreme Wide Dynamic Range (WDR) of 150 dB guarantees balanced images in environments with contrasting light conditions. Additionally, the hard-coated dome bubble and WiseStream III technology, based on the AI engine, optimize image quality and bandwidth, ensuring efficient storage without compromising on detail.

Advanced AI capabilities are at the heart of the XND-6083RV's design, enabling it to detect and classify various objects, including persons, faces, and a wide range of vehicles, thereby offering sophisticated analytics for modern security needs. This, combined with features such as defocus detection, motion detection, and fog detection, enhances the camera's ability to respond to diverse scenarios effectively. The camera's robust construction, including IP52 and IK10 ratings, ensures its resilience against environmental challenges and potential vandalism, making it an ideal choice for both indoor and outdoor applications where high-quality surveillance and durability are paramount.

Key Features:

  • Crystal-Clear Resolution: Experience stunning visuals with a resolution of up to 1920 x 1080, ensuring every detail is captured in pristine clarity.

  • Motorized Zoom Lens: The motorized zoom lens (2.8 - 12mm) empowers you with precise control over the focal length, allowing flexibility in monitoring various environments.

  • Cutting-Edge 2MP Sensor: Powered by a high-performance 1/2.8" Progressive CMOS sensor, this camera delivers exceptional image quality.

  • Wide Field of View: With an impressive angular field of view ranging from 119.5° to 27.9° horizontally, you can cover expansive areas effectively.

  • Flexible Angle Adjustment: Customize your camera's orientation with pan, tilt, and rotation adjustments, ensuring optimal coverage.

  • Advanced Alarms & Analytics: Unlock comprehensive surveillance capabilities with features like object detection, defocus detection, directional detection, motion detection, enter/exit, tampering, and virtual line detection.

  • Business Intelligence: Harness AI-based functions for people counting, queue management, and heat map generation, providing valuable insights into customer behavior.

  • Digital Noise Reduction: Ensure clear images even in challenging lighting conditions with SSNR and AI WiseNR II.

  • Wide Dynamic Range: The extremeWDR technology balances exposure, preserving image clarity in both bright and dark environments.

  • Digital Image Stabilization: With AI Stabilization Support and a built-in gyro sensor, this camera guarantees steady footage, even under adverse conditions.

  • Backlight Compensation: Choose from BLC, HLC, WDR, or SSDR to counter backlighting and maintain a well-balanced image.

  • Night Time Viewing: Experience exceptional night vision with Wise Auto(ICR) technology, offering visibility of up to 164ft.

  • Efficient Video Compression: Benefit from AI-based WiseStream III/WiseStream II, H.265, H.264, and JPEG (MJPEG) video compression, optimizing storage and bandwidth usage.

  • Flexible Power Supply: The camera supports PoE (IEEE802.3af, Class3) and 12VDC power options, ensuring compatibility with various setups.

  • Alarm I/O: Two I/O ports for alarms, enhancing your surveillance capabilities.

  • Environmental Ratings: This camera boasts an IP52 rating for protection against dust and IK10 for vandal resistance.

  • Wide Operating Range: Operate the camera effectively in temperatures ranging from -13°F to 131°F.

  • On-Board Storage: The built-in microSD/SDHC/SDXC slot supports up to 512GB, ensuring you never miss critical footage.

Compatibility:

The Hanwha XND-6083RV is compatible with a wide range of surveillance systems and platforms, offering seamless integration into your existing infrastructure.

Specifications:

  • Resolution: Up to 1920 x 1080
  • Lens: Motorized Zoom 2.8 - 12mm
  • Sensor: 2MP 1/2.8" Progressive CMOS
  • Field of View:
    • Horizontal: 119.5° / 27.9°
    • Vertical: 62.8° / 15.7°
    • Diagonal: 142.1° / 32°
  • Angle Adjustment:
    • Pan: 0° to 360°
    • Tilt: -45° to 75°
    • Rotate: 0° to 355°
  • Alarms & Analytics: Multiple detection and analytics features
  • Business Intelligence: People counting, queue management, heat map
  • Digital Noise Reduction: SSNR, AI WiseNR II
  • Wide Dynamic Range: extremeWDR
  • Digital Image Stabilization: AI Stabilization Support (built-in gyro sensor)
  • Backlight Compensation: BLC, HLC, WDR, SSDR
  • Night Time Viewing: Wise Auto(ICR) up to 164ft
  • Video Compression: AI-based WiseStream III/WiseStream II, H.265, H.264, JPEG (MJPEG)
  • Power Supply: PoE (IEEE802.3af, Class3), 12VDC
  • Alarm I/O: Two I/O Ports
  • Environmental Ratings: IP52, IK10
  • Operating Conditions: -13°F to 131°F
  • On-Board Storage: microSD/SDHC/SDXC slot

Package Contents:

  • Hanwha XND-6083RV Vandal Resistant 2MP IR Dome IP Camera with AI Engine
  • Installation guide

Experience unrivaled surveillance capabilities with the Hanwha XND-6083RV. Elevate your security infrastructure today.

  •
Specifications
Imaging Device: 1/2.8" progressive CMOS
Resolution: 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate: H.265/H.264: Max. 120fps/100fps(60Hz/50Hz)(WDR off); Max. 60fps/50fps(60Hz/50Hz)(WDR on); MJPEG: Max. 30fps
Min. Illumination: Color: 0.01Lux(F1.4, 1/30sec, 30IRE); BW: 0.001Lux(F1.4, 1/30sec, 30IRE), 0Lux(IR LED on), 30/25fps; ; Color: 0.02Lux(F1.4, 1/60sec, 30IRE); BW: 0.002Lux(F1.4, 1/60sec, 30IRE), 0Lux(IR LED on), 60/50fps; ; Color: 0.04Lux(F1.4, 1/120sec, 30IRE); BW: 0
Video Out: CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation; USB: Micro USB Type B, 1280x720 for installation
Focal Length (Zoom Ratio: 2.8~12mm(4.3x) motorized varifocal
Max. Aperture Ratio: F1.4(Wide)~F3.6(Tele)
Angular Field of View: H: 120°(Wide)~27°(Tele); V: 63°(Wide)~15°(Tele); D: 143°(Wide)~32°(Tele)
Min. Object Distance: 0.5m(1.64ft)
Focus Control: Simple focus, Manual
Lens Type: DC auto iris with hall sensor(IR corrected)
Pan / Tilt / Rotate Range: 0°~360° / -45°~85° / 0°~355°
Camera Title: Displayed up to 85 characters
Day & Night: Auto(ICR)
Backlight Compensation: BLC, HLC, WDR, SSDR
Wide Dynamic Range: extremeWDR(150dB)
Digital Noise Reduction: WiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image Stabilization: Support(built-in gyro sensor)
Defog: Support
Motion Detection: 8ea, 8point Polygonal zones
Privacy Masking: 32ea, 4point Quadrangle zones; - Color: Gray/Green/Red/Blue/Black/White; - Mosaic
Gain Control: Off / Max Gain / Manual
White Balance: ATW / NarrowATW / AWC / Manual / Indoor / Outdoor
LDC: Support(Fill/stretch mode)
Electronic Shutter Speed: Minimum / Maximum / Anti flicker(2~1/12,000sec); prefer shutter control(Based on AI engine)
Video Rotation: Flip, Mirror, Hallway view(90°/270°)
Analytics: Classified object type: Person/Face/Vehicle/License plate; Attributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle); Support DetectionShot; Analytics events based on AI engine; - Object detection, Virtual line(Crossing/Direction), Virtual area(Loi
Business Intelligence: Based on AI engine: People counting, Queue management, Heatmap
Alarm I/O: 2 configurable I/O ports, DC 12V output(Max. 50mA)
Alarm Triggers: Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
Alarm Events: When alarm trigger occurred; - File upload(image): e-mail/FTP; - Notification: e-mail; - Recording: SD/SDHC/SDXC or NAS recording at event triggers; - Alarm output; - Handover: PTZ preset, send message by HTTP/HTTPS/TCP; - Audio clip playback; - MQTT
Audio In: Selectable(mic in/line in/built-in MIC); Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out: Line out, Max.output level: 1Vrms
IR Viewable Length: WiseIR 50m(164.04ft)
Ethernet: Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression: G.711 u-law /G.726 Selectable; G.726(ADPCM) 8KHz, G.711 8KHz; G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps; AAC-LC: 48Kbps at 16KHz
Smart Codec: Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine)
Bitrate Control: H.264/H.265: CBR or VBR; MJPEG: VBR
Streaming: Unicast(20 users) / Multicast; Multiple streaming(Up to 10 profiles, 3 virtual channel support)
Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
Security: TPM 2.0(FIPS 140-2 level 2); HTTPS(SSL) Login Authentication; Digest Login Authentication; IP Address Filtering; User access log; 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2); Device Certificate(Hanwha Techwin Root CA, pre-installed);
Application Programming Interface: ONVIF Profile S/G/T/M; SUNAPI(HTTP API); Wisenet open platform
Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
Edge Storage: Micro SD/SDHC/SDXC 2slot Max. 1TB(512GB * 2)
Memory: 2GB RAM, 512MB Flash
Operating Temperature / Humidity: -25 °C~50 °C(-13°F~+122°F) / 0~95% RH(non-condensing); Humidity control /w AIR vent
Storage Temperature / Humidity: -50°C~+60°C(-58°F~+140°F) / 0~90% RH
Certification: IP52, IK10
Input Voltage: PoE+(IEEE802.3at type2, Class4), 12VDC
Power Consumption: PoE+: Max 22.5W, typical 17.9W; 12VDC: Max 20.0W, typical 15.6W; Power redundancy failover
Color / Material: White / Aluminum; Hard-coated dome bubble
RAL Code: RAL9003
Product Dimensions / Weight: ø160x125mm(ø6.30x4.92"), 1600g(3.53 lb)
Compatible Conduit hole / Gangbox: 12.7mm(1/2")(M20); single, double, 4" octagon, 4" square
Hanging Mount (Dome: SBP-167HMW
EMC: FCC 47 CFR 15 Subpart B Class A; ICES-3(A)/NMB-3(A); CE/UKCA; - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3; VCCI CISPR 32 Class A; RCM AS/NZS CISPR 32 Class A; KS C 9832 Class A, KS C 9835
Safety: UL 62368-1, CAN/CSA C22.2 NO. 62368-1; IEC/EN 62471
Environment: IEC/EN 63000; IEC/EN 60529 IP52, IEC/EN 62262 IK10
Detect (25PPM/ 8PPF: Wide: 22.2m(72.74ft) / Tele: 159.9m(524.76ft)
Observe (63PPM/ 19PPF: Wide: 8.9m(29.09ft) / Tele: 64.0m(209.90ft)
Recognize (125PPM/ 38PPF: Wide: 4.4m(14.55ft) / Tele: 32.0m(104.95ft)
Identify (250PPM/ 76PPF: Wide: 2.2m(7.27ft) / Tele: 16.0m(52.48ft)
bundleid: 6657
