Hanwha

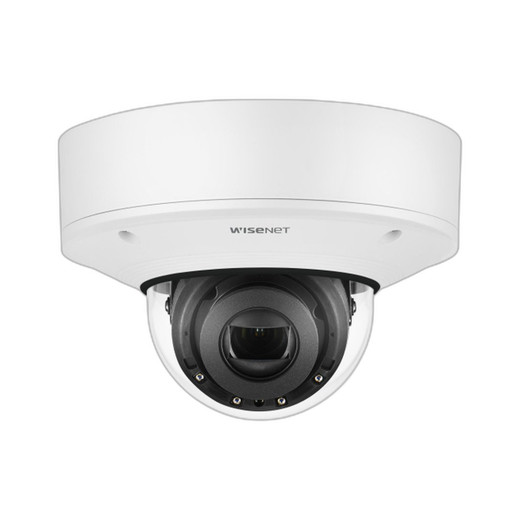

Hanwha XNV-6081RE (2MP) Outdoor Vandal-Resistant IR Dome Network IP Camera with PoE Extender

Add to Cart for Sale Price!

$1,350.00
Adding to cart… The item has been added
SKU: XNV-6081RE
Condition: New
Availability: Usually Ships Same Business Day

Industry Leading Prices

Quantity Discounts
Available

Certified Experts

Pre and Post-sales
Support Available

Free Shipping on Orders Over $499

Same Day Shipping on
Most Orders

Hanwha XNV-6081RE (2MP) Outdoor Vandal-Resistant IR Dome Network IP Camera with PoE Extender

Add to Cart for Sale Price!

$1,350.00
Description

The Hanwha XNV-6081RE (2MP) Outdoor Vandal-Resistant IR Network Dome IP Camera with PoE Extender is designed for robust, high-quality surveillance in demanding environments. Featuring a 2-megapixel resolution (1920 x 1080) and a 4.3x motorized varifocal lens (2.8 to 12mm), this camera delivers crystal-clear imagery across varied distances. With its high-powered IR LEDs, the XNV-6081RE ensures reliable night vision up to 164 feet, capturing crisp details even in complete darkness. Capable of recording at up to 60fps in all resolutions and supporting H.265, H.264, and MJPEG codecs, this camera offers flexibility in video streaming and efficient storage management, making it ideal for high-traffic, security-critical areas. It also supports WDR (150dB) and defog functionality for enhanced image clarity, making it suitable for environments prone to challenging lighting conditions.

This Hanwha model is packed with advanced detection features such as shock, loitering, directional, fog, and audio detection, alongside digital auto-tracking, sound classification, tampering detection, and motion detection capabilities. Dual SD/SDHC/SDXC memory slots (up to 512GB combined) provide ample local storage, while PoE+ In/PoE Out ensures efficient power management and connectivity options. Built for durability, the XNV-6081RE meets IP67/IP66/IP6K9K, IK10+, and NEMA 4X standards, offering robust protection against dust, water, and impact. Additionally, the camera supports bi-directional audio, hallway view, and WiseStream II compression, making it versatile for varied surveillance applications. The included weather cap further enhances its resilience, making it a top choice for organizations requiring reliable, high-performance outdoor surveillance.

Key Features:

  • 2MP resolution (1920 x 1080) with motorized 4.3x varifocal lens (2.8-12mm)
  • High-powered IR LEDs with a 164’ range for clear night vision
  • 60fps recording at all resolutions; supports H.265, H.264, MJPEG, multiple streaming
  • Advanced detection features: shock, loitering, directional, fog, and audio detection
  • Wide Dynamic Range (WDR, 150dB) and defog capabilities
  • Dual SD/SDHC/SDXC slots (total max 512GB) for expanded local storage
  • Rugged construction: IP67/IP66/IP6K9K, IK10+, NEMA 4X ratings
  • PoE+ In / PoE Out; bi-directional audio support
  • Lens Distortion Correction (LDC), WiseStream II, hallway view support
Specifications
Imaging Device: 1/2.8" 2MP CMOS
Resolution: 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate: H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination: Color: 0.015Lux(F1.4, 1./30sec) BW: 0Lux(IR LED)
Video Out: CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation
Focal Length (Zoom Ratio: 2.8~12mm(4.3x) motorized varifocal
Max. Aperture Ratio: F1.4(Wide) ~ F3.6(Tele)
Angular Field of View: H: 119.5°(Wide)~27.9°(Tele) / V: 62.8°(Wide)~15.7°(Tele) / D: 142.1°(Wide)~32.0°(Tele)
Min. Object Distance: 0.5m(1.64ft)
Focus Control: Simple focus
Lens Type: DC auto iris, P iris
Pan / Tilt / Rotate Range: 0˚~360˚ / -45˚~85˚ / 0˚~355˚
Camera Title: Displayed up to 85 characters
Day & Night: Auto(ICR)
Backlight Compensation: BLC, HLC, WDR, SSDR
Wide Dynamic Range: 150dB
Digital Noise Reduction: SSNRⅤ
Digital Image Stabilization: Support(built-in gyro sensor)
Defog: Support
Motion Detection: 8ea, 8point polygonal zones
Privacy Masking: 32ea, rectangular zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
Gain Control: Low / Middle / High
White Balance: ATW / AWC / Manual / Indoor / Outdoor
LDC: Support
Electronic Shutter Speed: Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation: Flip, Mirror, Hallway view(90˚/270˚)
Analytics: Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
Business Intelligence: People counting, Queue management, Heatmap
Alarm I/O: Input 1ea / Output 1ea
Alarm Triggers: Analytics, Network disconnect, Alarm input
Alarm Events: File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover Audio playback
Audio In: Selectable(mic in/line in), Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out: Line out, Max. output level: 1Vrms
IR Viewable Length: 50m(164.04ft)
Ethernet: Metal shielded RJ-45(10/100BASE-T)
Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression: G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec: Manual(5ea area), WiseStreamⅡ
Bitrate Control: H.264/H.265: CBR or VBR MJPEG: VBR
Streaming: Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security: HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA)
Application Programming Interface: ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage: Micro SD/SDHC/SDXC 2slot 512GB
Memory: 1024MB RAM, 256MB Flash
Operating Temperature / Humidity: -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH * Start up should be done at above -35°C
Storage Temperature / Humidity: -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Certification: IP66/IP67/IP6K9K, IK10+, NEMA4X
Input Voltage: PoE+(IEEE802.3at, Class4)
Power Consumption: Max 25.5 W (Main CAM + Extension CAM) Typical 10.2W (Main CAM) * PoE Out: Max 12.95W at 80meters using CAT5/5E cable
Color / Material: White / Aluminum
RAL Code: RAL9003
Product dimensions / weight: Ø180x125mm(7.09x4.92"), 1.75kg(3.86 lb)
Conduit hole: 3/4"
Hanging mount(Dome: SBP-187HM
Skin cover(Dome: SBC-180B
Detect (25PPM/ 8PPF: Wide: 22.4m(73.49ft) / Tele: 155m(508.53ft)
Observe (63PPM/ 19PPF: Wide: 9.0m(29.53ft) / Tele: 62m(203.41ft)
Recognize (125PPM/ 38PPF: Wide: 4.5m(14.76ft) / Tele: 31m(101.71ft)
Identify (250PPM/ 76PPF: Wide: 2.2m(7.22ft) / Tele: 15m(49.21ft)
