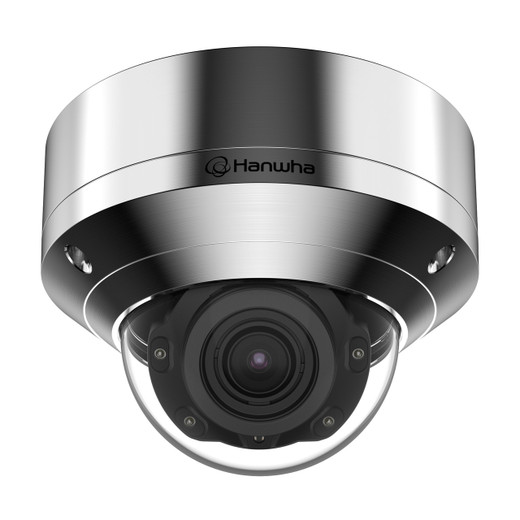

Hanwha XNV-8080RSA (5MP) Outdoor Stainless Steel IR Dome IP Camera

Add to Cart for Sale Price!

$2,200.00
Description

The Hanwha XNV-8080RSA (5MP) Outdoor Stainless Steel IR Dome IP Camera offers superior surveillance performance with a rugged, corrosion-resistant design ideal for industrial and food processing environments. Equipped with a 5-megapixel sensor delivering a 2560 x 1920 resolution, this camera captures clear and detailed footage even in challenging conditions. Its 3.9-9.4mm motorized varifocal lens and 120dB Wide Dynamic Range (WDR) ensure optimal image clarity across a wide range of lighting environments. Built to withstand extreme weather and harsh conditions, the camera is housed in stainless steel, meeting NSF/ANSI Standard 169 for food safety, and features an IP66, IP6K9K, and NEMA 4X rating for water and dust resistance, as well as IK10+ impact protection.

With an advanced suite of video analytics, the XNV-8080RSA enhances security through loitering, directional detection, and tampering alarms. The IR LEDs provide visibility up to 50 meters in complete darkness, ensuring reliable 24/7 surveillance. The camera also supports dual SD card slots for local storage (up to 512GB), while H.265, H.264, and MJPEG compression formats offer efficient video streaming. Additionally, its PoE capabilities simplify installation, and bi-directional audio enables real-time communication. The camera is ideal for environments requiring robust protection and high-quality video monitoring, such as manufacturing, food processing, or high-security outdoor applications.

Key Features:

  • 5MP resolution (2560 x 1920) with 30fps streaming
  • 3.9 ~ 9.4mm motorized varifocal lens
  • H.265, H.264, MJPEG codecs with multiple streaming
  • IR range up to 50m, IP66, IP6K9K, NEMA 4X, IK10+ protection
  • Advanced analytics: loitering, directional, fog, and tampering detection
  • Dual SD card slots (max 512GB), PoE, bi-directional audio support
  • Certified for NSF/ANSI Standard 169 for food processing environments

Compatibility: The Hanwha XNV-8080RSA is compatible with major VMS platforms and integrates seamlessly into PoE networks. It also supports multiple storage options via dual SD card slots for local recording.

Summary: The Hanwha XNV-8080RSA stands out for its rugged, stainless steel construction, high-resolution 5MP imaging, and robust feature set designed for challenging environments. Its compliance with food safety standards, along with its advanced analytics and weatherproof housing, makes it a top choice for industries requiring resilient and intelligent surveillance solutions.

Specifications
Imaging Device: 1/1.8”CMOS
Resolution: 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate: H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination: Color: 0.07Lux(F1.3, 1/30sec) BW: 0Lux(IR LED on)
Video Out: CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation
Focal Length (Zoom Ratio: 3.9~9.4mm(2.4x) motorized varifocal
Max. Aperture Ratio: F1.3(Wide) ~ F2.4(Tele)
Angular Field of View: H: 92.1°(Wide)~38.7°(Tele) / V: 67.2°(Wide)~29.0°(Tele) / D: 119.9°(Wide)~48.6°(Tele)
Min. Object Distance: 0.5m(1.64ft)
Focus Control: Simple focus
Lens Type: DC Auto Iris, P iris
Pan / Tilt / Rotate Range: 0˚~354˚ / 0˚~67˚ / 0˚~355˚
Camera Title: Displayed up to 85 characters
Day & Night: Auto(ICR)
Backlight Compensation: BLC, HLC, WDR
Wide Dynamic Range: 120dB
Digital Noise Reduction: SSNRⅤ
Digital Image Stabilization: Support
Defog: Support
Motion Detection: 8ea, 8point Polygonal zones
Privacy Masking: 32ea, polygonal zones - Color : Gray, Green, Red, Blue, Black, White - Mosaic
Gain Control: Low / Middle / High
White Balance: ATW / AWC / Manual / Indoor / Outdoor
LDC: Support
Electronic Shutter Speed: Minimum / Maximum / Anti flicker (2~1/12,000sec)
Digital PTZ: Support
Video Rotation: Flip, Mirror, Hallway view(90˚/270˚)
Analytics: Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
Alarm I/O: Input 1ea / Output 1ea
Alarm Triggers: Analytics, Network disconnect, Alarm input
Alarm Events: File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover
Audio In: Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out: Line out, Max.output level: 1Vrms
IR Viewable Length: 50m(164.04ft)
Ethernet: RJ-45(10/100BASE-T)
Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression: G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec: Manual(5ea area), WiseStreamⅡ
Video Quality Adjustment: H.264/H.265 : Target Bitrate Level Control MJPEG : Target Bitrate Level Control
Bitrate Control: H.264/H.265: CBR or VBR MJPEG: VBR
Streaming: Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security: HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface: ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
Webpage Language: English, Korean, French, German, Spanish, Italian, Chinese, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer: Supported OS: Windows 8.1 or later, Mac OS X 10.13 or later Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage: Micro SD/SDHC/SDXC 2slot 512GB
Memory: 1024MB RAM, 512MB Flash
Operating Temperature / Humidity: -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity: -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification: IP66, IP6K9K, IK10+, NEMA4X NSF/ANSI 169-2016: Special purpose food equipment and devices
Input Voltage: PoE(IEEE802.3af), 12VDC, 24VAC
Power Consumption: PoE: Max 12.95W 12VDC: Max 11.5W 24VAC: Max 14W
Color / Material: Silver / Stainless(SUS316L)
Product dimensions / weight: Ø162x120.5mm(Ø6.38x4.74") / 2.8kg(6.17lb)
