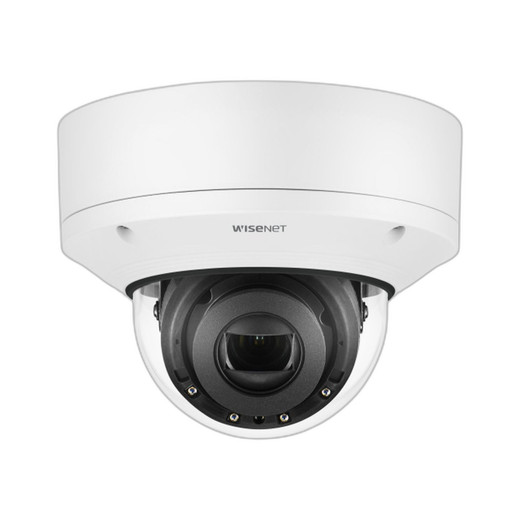

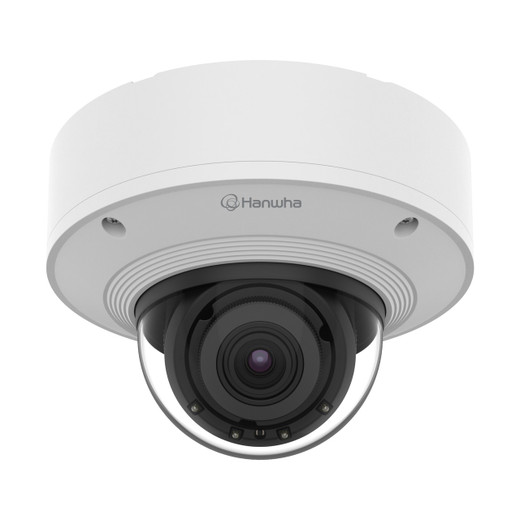

Hanwha XNV-8081RE (5MP) Outdoor Vandal-Resistant IR Dome Network IP Camera With PoE Extender

Add to Cart for Sale Price!

$1,850.00
Adding to cart… The item has been added
SKU: XNV-8081RE
Condition: New
Availability: Usually Ships Same Business Day

Industry Leading Prices

Quantity Discounts
Available

Certified Experts

Pre and Post-sales
Support Available

Free Shipping on Orders Over $499

Same Day Shipping on
Most Orders

Hanwha XNV-8081RE (5MP) Outdoor Vandal-Resistant IR Dome Network IP Camera With PoE Extender

Add to Cart for Sale Price!

$1,850.00
Add to Cart
Description

The Hanwha XNV-8081RE (5MP) Outdoor Vandal-Resistant IR Dome Network IP Camera - PoE Extender offers advanced security surveillance with superior image clarity and versatile features tailored for outdoor environments. Equipped with a 5MP sensor, this camera captures high-resolution images at 30 frames per second, ensuring sharp details in both bright and low-light conditions. The motorized varifocal lens (3.9-9.4mm) enables precise adjustments, while the impressive 164-foot IR range ensures visibility in complete darkness. Built to endure harsh conditions, it boasts rugged certifications including IP67/IP66/IP6K9K, IK10+, and NEMA 4X, making it highly resilient against weather and vandalism. With cutting-edge WiseStream II compression technology and H.265 support, the XNV-8081RE reduces bandwidth and storage demands without compromising video quality, enhancing network efficiency.

This camera is designed with intelligent analytics, including motion detection, shock and tamper alarms, directional and loitering detection, and fog detection. Digital auto-tracking and sound classification capabilities make it particularly effective in identifying potential threats. Dual SD slots provide up to 512GB of onboard storage, and the camera supports PoE+ In and PoE Out for simplified installation and power supply to connected devices. Additional features like bi-directional audio, Lens Distortion Correction (LDC), and a convenient Hallway View optimize performance in various installation settings, enhancing situational awareness and response. Encased in a white, vandal-resistant body, the XNV-8081RE is a reliable choice for security applications that demand resilience and precision.

Key Features

  • 5MP resolution at 30fps with H.265, H.264, and MJPEG codec support
  • Motorized varifocal lens (3.9–9.4mm) with 164-foot IR range for low-light performance
  • Advanced video analytics including shock, tamper, motion, and audio detection
  • Dual SD/SDHC/SDXC memory slots with up to 512GB storage
  • IP67/IP66/IP6K9K, IK10+, and NEMA 4X certifications for extreme durability
  • PoE+ In and Out capabilities, supporting extended power applications
  • Bi-directional audio, Hallway View, and Lens Distortion Correction (LDC) support
Specifications
Imaging Device: 1/1.8" 6MP CMOS
Resolution: 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate: H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination: Color: 0.07Lux(F1.3, 1/30sec) BW: 0Lux(IR LED)
Video Out: CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation
Focal Length (Zoom Ratio: 3.9~9.4mm(2.4x) motorized varifocal
Max. Aperture Ratio: F1.3
Angular Field of View: H: 92.1˚(Wide)~38.7˚(Tele), V: 67.2˚(Wide)~29.0˚(Tele), D: 119.9˚(Wide)~48.6˚(Tele)
Min. Object Distance: 0.5m(1.64ft)
Focus Control: Simple focus
Lens Type: DC auto iris, P iris
Pan / Tilt / Rotate Range: 0˚~360˚ / -45˚~85˚ / 0˚~355˚
Camera Title: Displayed up to 85 characters
Day & Night: Auto(ICR)
Backlight Compensation: BLC, HLC, WDR, SSDR
Wide Dynamic Range: 120dB
Digital Noise Reduction: SSNRⅤ
Digital Image Stabilization: Support(built-in gyro sensor)
Defog: Support
Motion Detection: 8ea, 8point polygonal zones
Privacy Masking: 32ea, rectangular zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
Gain Control: Low / Middle / High
White Balance: ATW / AWC / Manual / Indoor / Outdoor
LDC: Support
Electronic Shutter Speed: Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation: Flip, Mirror, Hallway view(90˚/270˚)
Analytics: Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
Business Intelligence: People counting, Queue management, Heatmap
Alarm I/O: Input 1ea / Output 1ea
Alarm Triggers: Analytics, Network disconnect, Alarm input
Alarm Events: File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover Audio playback
Audio In: Selectable(mic in/line in), Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out: Line out, Max. output level: 1Vrms
IR Viewable Length: 50m(164.04ft)
Ethernet: Metal shielded RJ-45(10/100BASE-T)
Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression: G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec: Manual(5ea area), WiseStreamⅡ
Bitrate Control: H.264/H.265: CBR or VBR MJPEG: VBR
Streaming: Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security: HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA)
Application Programming Interface: ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage: Micro SD/SDHC/SDXC 2slot 512GB
Memory: 1024MB RAM, 256MB Flash
Operating Temperature / Humidity: -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH * Start up should be done at above -35°C
Storage Temperature / Humidity: -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Certification: IP66/IP67/IP6K9K, IK10+, NEMA4X
Input Voltage: PoE+(IEEE802.3at, Class4)
Power Consumption: Max 25.5 W (Main CAM + Extension CAM) Typical 10.2W (Main CAM) * PoE Out: Max 12.95W at 80meters using CAT5/5E cable
Color / Material: White / Aluminum
RAL Code: RAL9003
Product dimensions / weight: Ø180x125mm(7.09x4.92"), 1.75kg(3.86 lb)
Conduit hole: 3/4"
Hanging mount(Dome: SBP-187HM
Skin cover(Dome: SBC-180B
Detect (25PPM/ 8PPF: Wide: 49.4m(162.07ft) / Tele: 146m(479.00ft)
Observe (63PPM/ 19PPF: Wide: 19.7m(64.63ft) / Tele: 58m(190.29ft)
Recognize (125PPM/ 38PPF: Wide: 9.9m(32.48ft) / Tele: 29m(95.14ft)
Identify (250PPM/ 76PPF: Wide: 4.9m(16.08.22ft) / Tele: 15m(49.21ft)
