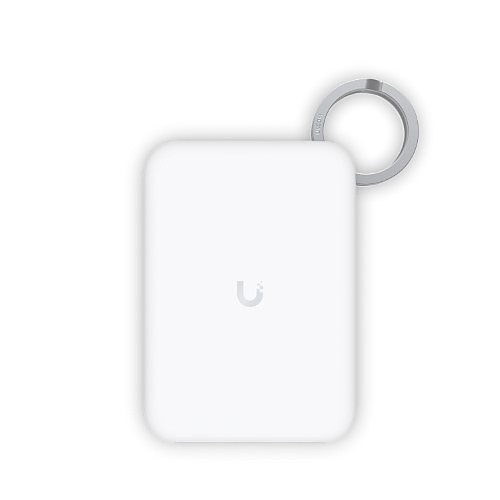

Ubiquiti WM-W WiFiMan Wizard Handheld WiFi Survey Tool
The Ubiquiti WM-W is a purpose-built handheld survey instrument for UniFi network deployment and troubleshooting. Unlike laptop-dependent tools, the WM-W fits in a technician's pocket and captures real-time signal mapping, access point discovery, and roaming diagnostics directly on-site. It communicates via dual-band 2.4 GHz and 5 GHz radios to log comprehensive site survey data, with results syncing immediately to UniFi Network Application controllers—whether cloud or self-hosted. Management happens entirely through the UniFi WiFiman mobile application (iOS 0.18.0+ and Android 1.15.0+), eliminating setup friction and letting teams start surveys within minutes of unboxing.
Key Features
- Pocket-sized form factor (78.5 x 50.5 x 7.9 mm, 32 grams): Fits easily into a technician's pocket during multi-hour deployment windows without adding fatigue or encumbering climbing tasks. Small enough to carry on every site visit without second thought.
- IP55 environmental rating: Dust and splash protection mean you can operate outdoors in light rain or dusty warehouses without worrying about moisture damage. Not rated for full submersion—stick to IP67 if you need that—but adequate for most field conditions including rooftop antenna mounting work.
- Integrated Li-ion battery (3.7V DC, 300mAh): Delivers approximately 32.4mW power draw during active operation, reducing charging frequency compared to power-hungry laptops. USB-C charging at 5V DC/1A simplifies field recharging and integrates with standard mobile power banks.
- Dual-band 2.4 GHz and 5 GHz radio: Associates with both open and authenticated networks, meaning you can work in production environments without requiring separate guest network provisioning. Respects existing WLAN security posture.
- Direct UniFi controller integration: Survey results sync to Dream Machine, Cloud Key, or self-hosted Network Application deployments, enabling historical trending, site-to-site performance comparisons, and centralized documentation without manual export-import cycles.
- Single power button for straightforward field operation: No menus, firmware updates, or controller registration required before first use—charge, install the app, and begin surveys immediately.
Integration & Deployment Context
The WM-W serves multiple workflows across UniFi rollouts. Pre-deployment site surveys identify signal dead zones, channel interference, and optimal access point placement before equipment installation. During active rollout, technicians validate coverage across meeting rooms, warehouses, and outdoor spaces without interrupting production traffic. Post-deployment optimization uses real-time signal strength and roaming data to fine-tune transmit power and channel assignments. Support teams reproduce client connectivity complaints and verify performance SLAs directly from the field without requiring end-user device cooperation.
Typical effective range is approximately 30 meters depending on wall density and RF interference environment—keep the device within arm's reach of survey locations for maximum accuracy. Operating temperature span of 0 to 40°C accommodates year-round deployment across most climate zones. Full regulatory compliance includes CE, FCC, IC, and Anatel (10051-23-08356) certifications, supporting deployment across North American and European markets without separate approvals.
Frequently Asked Questions
Q: Does the WM-W work with non-UniFi networks?
A: The WM-W operates as a mobile WiFi client and can associate with any standard 802.11 network. However, data logging and controller integration require a UniFi Network Application instance. The device itself will scan and connect to open or WPA2/WPA3 networks, but cloud/historical trending functionality is UniFi-specific.
Q: How long does the battery last on a single charge?
A: The 300mAh Li-ion battery supports approximately 32.4mW consumption during active operation. While the evidence does not specify absolute runtime hours, the compact capacity suggests 3–5 hours of continuous use; recharge via USB-C when needed or pair with a mobile power bank for extended field days.
Q: Can I mount the WM-W on a pole or tripod for stationary surveying?
A: The evidence does not document mounting provisions. The WM-W is designed as a handheld mobile instrument for technician-carried surveys rather than fixed stationary deployment.
Q: Does the WM-W require internet connectivity to function?
A: Survey operation and local WiFi scanning do not require internet. Data sync to a UniFi controller requires network connectivity to that controller (cloud or on-premises). WiFi scanning and signal mapping work offline; you sync results once connectivity is available.
Q: What iOS and Android versions are supported?
A: The UniFi WiFiman app requires iOS 0.18.0 or later and Android 1.15.0 or later. Confirm your mobile device meets these minimums before deployment.
Q: Is the WM-W NDAA compliant or suitable for U.S. federal procurement?
A: The evidence does not list NDAA Section 889 compliance or federal procurement certifications. Verify directly with the manufacturer if compliance is a project requirement.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The WM-W (often searched as WM W) solves a genuine field problem: getting accurate, auditable signal data without wrestling a laptop through a warehouse or up a rooftop. I've watched integrators waste time on spreadsheet-based surveys or rely on smartphone WiFi utilities that don't sync anywhere. The WM-W cuts that friction and lets results flow directly into the UniFi dashboard where they live alongside deployment notes and trend data.
Technical Highlights:
- 32-gram pocket form factor: Weight and size mean technicians actually carry it on every job. That 78.5 x 50.5 x 7.9 mm envelope doesn't add fatigue during multi-floor walkthrough surveys.
- IP55 rating + USB-C charging: Outdoor work in light rain or dusty environments is viable without babysitting the device. 300mAh Li-ion battery with ~32.4mW draw keeps you in the field longer than you'd expect from the compact size; USB-C integrates with standard phone chargers and power banks.
- Dual-band 2.4/5 GHz radio with UniFi controller sync: Real-time data logging to Dream Machine or self-hosted Network App eliminates manual documentation. You walk a site, the WM-W collects signal maps, and results appear in your controller's historical trending within minutes.
Deployment Considerations:
- 30-meter typical range depends heavily on wall density and RF environment—don't expect clean data through dense concrete structures. Plan survey paths accordingly and overlap measurement points in high-attenuation areas.
- The device requires the UniFi WiFiman mobile app (iOS 0.18.0+, Android 1.15.0+). Older phones or custom ROM devices may not support the app version—confirm compatibility before committing the device to a project.
Best fit: multi-site integrators managing UniFi rollouts who need fast, auditable signal validation before go-live and a pocket tool for post-deployment troubleshooting. For single-site deployments or support teams that rarely re-survey, a dedicated device may feel like overkill—but for teams doing two or more sites per month, the WM-W pays for itself in documentation time saved.
