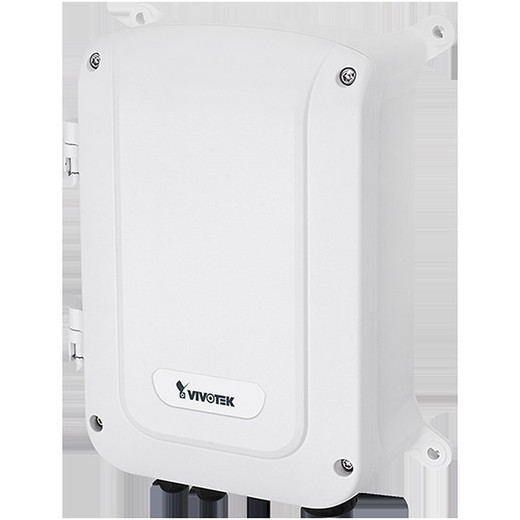

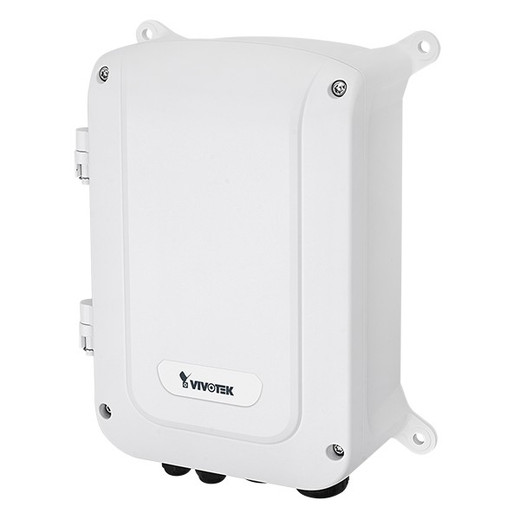

Vivotek AW-GET083A-120 Outdoor 4-Port PoE+ GbE 120W Switch

$1,047.60

Add to Cart for Sale Price!

$689.99
Description

The Vivotek AW-GET083A-120 is a high-performance outdoor network switch designed to meet the robust demands of modern IP surveillance and security solutions. Engineered for optimal outdoor performance, this switch features four Power over Ethernet Plus (PoE+) Gigabit Ethernet ports, delivering a total power budget of 120 watts. Its rugged construction ensures reliable operation in various environmental conditions, making it an ideal choice for expanding outdoor IP camera networks. With advanced PoE+ capability, the Vivotek AW-GET083A-120 ensures efficient power management and data connectivity for high-definition IP cameras, wireless access points, and other PoE-compatible devices.

Key Features

  • Four PoE+ Gigabit Ethernet Ports: Provides high-speed network connections and power to up to four devices simultaneously.
  • High Power Budget of 120W: Supports demanding PoE devices such as PTZ and high-performance IP cameras.
  • Outdoor Ready: Encased in a durable, weather-resistant housing to withstand harsh environmental conditions.
  • Simple Installation: Plug-and-play setup without the need for complex configuration, ideal for quick deployment in field operations.
  • Energy Efficient: Incorporates energy-efficient technology to reduce power consumption when ports are not in use.
  • Extended Temperature Range: Operates reliably in a wide temperature range, suitable for diverse climates.

Compatibility

  • It is compatible with IEEE 802.3af/at devices, ensuring broad support for various PoE IP cameras, VoIP phones, and wireless APs.
  • Integrates seamlessly with Vivotek network cameras and video management systems for a unified security solution.

Package Contents

  • Vivotek AW-GET083A-120 Outdoor PoE+ Switch
  • Power Adapter
  • Mounting Kit
  • Quick Installation Guide
  • Warranty Card

Summary

The Vivotek AW-GET083A-120 stands out in outdoor network switches with its robust design, high power output, and reliable data connectivity. It offers a practical solution for extending outdoor IP surveillance networks without the complexity of traditional infrastructure. This switch is an indispensable tool for businesses needing durable and efficient outdoor networking equipment that can power and connect multiple high-demand devices.

Specifications
Model: AW-GET-083A-120
Short Highlight: 4xGE PoE + 2GE UTP + 2xGE SFP
10M/100M/1G RJ45 PoE Port: 4 /Per Port 30W PoE
10M/100M/1G RJ45 Port: 2
1G SFP Slot: 2
Switching Bandwidth: 16 Gbps
Forwarding Capacity: 11.904 Mpps
Mac Table: 8 K
Jumbo Frame: 9216 bytes
Auto-MDI/MDI-X, Auto-Negotiation: Supported
Max. PoE Output Power/Per Port: 30W
Total PoE Power Budget: 120W
IEEE 802.3af/at: Supported
Power Pin Assignment: 1/2(+), 3/6(-)
PoE PD Auto Detection: Supported
Power Input Voltage: 100VAC ~ 240VAC
Alarm Relay: 24VDC
Surge Protection/Each PoE Port: 6 KV
Surge Protection for AC Power: 40 KV
Power Input: 100~240VAC / 50~60Hz
Waterproof: IP67
Vandal Proof: IK10
Dimensions: 315.4 (W) x 245.8 (H) x 118 (D) mm
Weight: 4.52 kg
Operating Temperature: -40°C ~ 65°C (-40°F ~ 149°F)
Storage Temperature: -40°C ~ 75°C (-40°F ~ 167°F)
Humidity: Operating: 10 ~ 90% (Non-condensing); Storage: 10 ~ 90% (Non-condensing)
Connectors: M16 x 4, M25 x 2
Warranty: 24 months
EMC: CE, FCC, VCCI, C-Tick Class A
Safety: EN60950-1, IEC60950-1
Vibration: IEC 60068-2-6
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Surge: ITU-T K.21, IEC-61643-11
