Model:

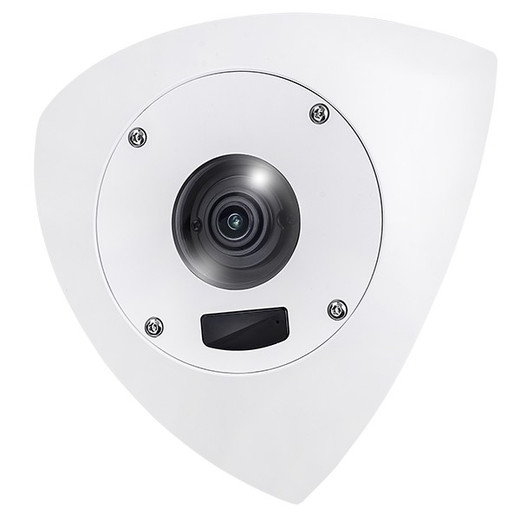

CD9381-HNTV
CPU:
Multimedia SoC (System-on-Chip)
Flash:
8 GB
RAM:
2 GB
Image Sensor:
1/2.7" Progressive CMOS
Max. Resolution:
2560x1920 (5MP)
Lens Type:
Motorized, Vari-focal, Remote Focus
Focal Length:
f= 2.8 ~ 8 mm
Aperture:
F1.8 ~ F2.78
Iris Type:
Fixed-iris
Field of View:
95° ~ 41° (Horizontal); 69° ~ 31° (Vertical); 126° ~ 53° (Diagonal)
Shutter Time:
1/5 sec. to 1/32,000 sec.
WDR Technology:
WDR Pro
Day/Night:
Yes
Removable IR-cut Filter:
Yes
IR Illuminators:
Built-in invisible IR illuminators, effective up to 10 meters with Smart IR, IR LED*2 (50IRE)
Minimum Illumination:
0.085 lux @ F2.1(Color);
Tilt Range:
15°
Pan/Tilt/Zoom Functionalities:
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage:
Seamless Recording to MicroSD/SDHC/SDXC card slot and recording to network-attached storage (NAS)
Built-in Installation Aids:
Remote focus, remote zoom, Micro USB*; *Requires Wi-Fi dongle and Micro B converter
Video Compression:
H.265, H.264, MJPEG
Maximum Frame Rate:
30 fps @ 2560*1920 (WDR Pro on); 30 fps @ 2560*1440 (WDR Pro on); 60 fps @ 1920x1080 (WDR Pro off)
Maximum Streams:
3 video streams (Up to 8 configurable profiles)
S/N Ratio:
54 dB
Dynamic Range:
120 dB
Video Streaming:
Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings:
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sh
Audio Capability:
Two-way audio (Full duplex)
Audio Compression:
G.711, G.726
Audio Interface:
Built-in microphone; External audio input; External audio output
Effective Range:
10 meters
Users:
Live viewing for up to 10 clients
Security:
Access list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account manag
Protocols:
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface:
10 Base-T/100 Base-TX Ethernet (RJ-45); *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF:
Profile G, S, T supported, specification available at www.onvif.org
Compute Capability:
SoC with built-in hardware deep learning accelerator
Vision Object Analytics:
Object Detection: People, Vehicle (4-wheeled, 2-wheeled); Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color); Re-Search Extraction; Path Extraction
Application:
Deep Learning VCA (Smart Motion Detection, Smart VCA); Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unatte
Application available with license:
Running detection, Parking Violation Detection, Restricted Zone Detection; Support for more analytic applications and free trial, please visit vivotek.com/video-analytics
Event Trigger:
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, s
Event Action:
Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card; File upload via email, HTTP, FTP/SFTP, NAS server, SD card
Connectors:
Default I/O; RJ-45 cable connector for 10/100 Mbps PoE network connection; Built-in Microphone; Micro USB; Audio output (Optional); Mic in (Optional); DC 12V power input (Optional); AC 24V power input (Optional); Digital input*1 (Optional); Digital o
LED Indicator:
System power and status indicator
Power Input:
AC 24V*, DC 12V*, IEEE 802.3af PoE Class 0; (Power Redundancy); *Requires I/O cable
Power Consumption:
PoE: Max. 10.36/8.36 W (IR on/off); DC 12V: Max. 9.96/7.96 W (IR on/off); AC 24V: Max. 18/16 W (IR on/off)
Dimensions:
226 x 221 x 112 mm
Weight:
1.5 kg
Certifications:
EMC: CE (EN 55032 Class A, EN 55035), UKCA (BS EN 55032: 2015 +Q71: 2020, BS EN; 55035: 2017 +Q71: 2020), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32; Class A), VCCI (VCCI-CISPR 32 Class A), ICES-003 Issue 7; Safety : UL (UL 62368-1), C
Operating Temperature:
Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F); Working Temperature: -10°C ~ 55°C (14°F ~ 122°F) (IR off); -10°C ~ 40°C (14°F ~ 113°F) (IR on)
Humidity:
98% RH (non-condensing)
Operating System:
Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
Web Browser:
Chrome 58.0 or above; Internet Explorer 10/11
Other Players:
VLC: 1.1.11 or above
Packing Contents:
Quick installation guide, L-shaped wrench, screw pack, waterproof accessory pack, I/O cable, Ethernet cable with RJ45 female connector cable, Mounting bracket
Detect (25PPM/ 8PPF:
Wide: 65.8 m (215.72 ft); Tele: 144 m (472.40 ft)
Observe (63PPM/ 19PPF:
Wide: 26.3 m (86.20 ft); Tele: 57.6m (188.90 ft)
Recognize (125PPM/ 38PPF:
Wide: 13.1 m (43.04 ft); Tele: 28.8m (94.40 ft)
Identify (250PPM/ 76PPF:
Wide: 6.5 m (21.36 ft); Tele: 14.4m (47.20 ft)
