Model:

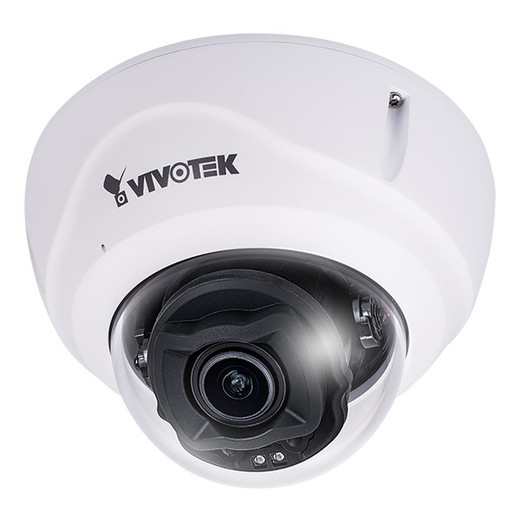

FD9387-FR-v2
CPU:
Multimedia SoC (System-on-Chip)
Flash:
eMMC 1GB
RAM:
DDR4 2GB
Image Sensor:
1/2.8" Progressive CMOS
Max. Resolution:
2560x1920 (5MP)
Lens Type:
Motorized, Vari-focal, Remote Focus
Focal Length:
f = 2.7 ~ 13.5 mm
Aperture:
F1.4 ~ F2.8
Iris Type:
P-iris
Field of View:
95° ~ 30° (Horizontal); 70° ~ 23° (Vertical); 128° ~ 38° (Diagonal)
Shutter Time:
1/5 sec. to 1/32,000 sec.
WDR Technology:
WDR Pro
Day/Night:
Yes
Removable IR-cut Filter:
Yes
IR Illuminators:
Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*4
Minimum Illumination:
0.075 lux @ F1.4 (Color);
Pan Range:
±175°
Tilt Range:
80°
Rotation Range:
±175°
Pan/Tilt/Zoom Functionalities:
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage:
Seamless Recording to MicroSD/SDHC/SDKC card (1TB capacity supported) and recording to network-attached storage (NAS)
Built-in Installation Aids:
Remote focus, remote zoom
Video Compression:
H.265, H.264, MJPEG
Maximum Frame Rate:
30 fps @ 2560x1920 (WDR Pro on)
Maximum Streams:
3 video streams (Up to 9 configurable profiles)
S/N Ratio:
61 dB
Dynamic Range:
120 dB
Video Streaming:
Adjustable resolution, quality and bit rate control, Smart Stream II
Image Settings:
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure, Smart IR II; Image settings: white balance, image adjustment (brightness, contrast, s
Audio Capability:
Two-way audio (full duplex)
Audio Compression:
G.711, G.726
Audio Interface:
External microphone input; External line output
Users:
Live viewing for up to 10 clients
Security:
Access list, digest authentication, HTTPS , IEEE 802.1x, password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols:
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface:
10 Base-T/100 Base-TX Ethernet (RJ-45); *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF:
Profile G, S, T supported, specification available at www.onvif.org
Event Trigger:
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, periodical trigger, recording notification, SD card life expectancy, shock detection, sy
Event Action:
Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card
Connectors:
RJ-45 cable connector for 10/100 Mbps PoE network connection; Audio line input; Audio line output; DC 12V power input/AC 24V power input; Digital input*2; Digital output*1
LED Indicator:
System power and status indicator
Power Input:
AC 24V/DC 12V, IEEE 802.3at PoE Class 4 (Power Redundancy)
Power Consumption:
DC12V: Max 23/18W (IR ON/OFF) Max Current:1.92A; PoE Max: 22.5W/18W (IR ON/OFF) 42.5–57.0V Max Current: 0.53A~0.4A; AC24V Max: 21W/16W (IR ON/OFF) Max Current: 1.4A
Dimensions:
Ø 155 x 103.2 mm
Weight:
909 g
Certifications:
EMC: CE (EN 55032 Class A, EN 55035), FCC (FCC Part 15 Subpart B Class A), UKCA (BS EN 55032:2015+A11: 2020, BS EN 55035:2017+A11:2020, BS EN IEC 62368-1:2020+A11:2020), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), ICES-003 Issue 7; S
Operating Temperature:
Starting Temperature: -30°C ~ 60°C (14°F ~ 140°F); Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F) (IR off); -30°C ~ 50°C (-22°F ~ 122°F) (IR on)
Humidity:
98% RH (non-condensing)
Operating System:
Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
Web Browser:
Chrome 58.0 or above; Internet Explorer 11
Other Players:
VLC: 1.1.11 or above
Packing Contents:
Quick installation guide, alignment sticker, L-shaped wrench, screw pack, waterproof accessory pack
Performance:
Up to 99% accuracy; supports recognition with mask; gender and age estimation; privacy mode.
Numbers of face captures:
30 faces per second
Profile database:
Up to 10,000 profiles
Automatic create profile for stranger:
Yes
Integration:
ONVIF profile S event push; HTTP/HTTPS Push in JSON format.
