Model:

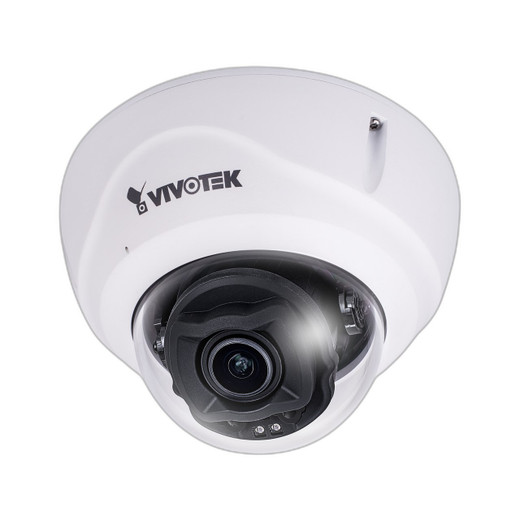

FD9387-HTV-A
CPU:
Multimedia SoC (System-on-Chip)
Flash:
256 MB
RAM:
1 GB
Image Sensor:
1/2.7" Progressive CMOS
Max. Resolution:
2560x1920 (5MP)
Lens Type:
Motorized, Vari-focal, Remote Focus
Focal Length:
f = 2.7 ~ 13.5 mm
Aperture:
F1.4 ~ F2.8
Iris Type:
P-iris
Field of View:
100° ~ 30° (Horizontal); 72° ~ 23° (Vertical); 135° ~ 38° (Diagonal)
Shutter Time:
1/5 sec. to 1/32,000 sec.
WDR Technology:
WDR Pro
Day/Night:
Yes
Removable IR-cut Filter:
Yes
IR Illuminators:
Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*4
Minimum Illumination:
0.075 lux @ F1.4 (Color);
Pan Range:
350°
Tilt Range:
80°
Rotation Range:
±175°
Pan/Tilt/Zoom Functionalities:
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage:
Seamless Recording to MicroSD/SDHC/SDXC card slot and recording to network-attached storage (NAS)
Built-in Installation Aids:
Remote focus, remote zoom, CVBS
Video Compression:
H.265, H.264, MJPEG
Maximum Frame Rate:
30 fps @ 2560x1920 (WDR Pro on); 30 fps @ 2560x1440 (WDR Pro on); 60 fps @ 1920x1080 (WDR Pro off)
Maximum Streams:
3 simultaneous streams
S/N Ratio:
57 dB
Dynamic Range:
120 dB
Video Streaming:
Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings:
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sh
Audio Capability:
Two-way Audio (full duplex)
Audio Compression:
G.711, G.726
Audio Interface:
Built-in microphone; External microphone input; External line output
Effective Range:
5 meters
Users:
Live viewing for up to 10 clients
Security:
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols:
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface:
10 Base-T/100 Base-TX Ethernet (RJ-45); *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF:
Profile G, S supported, specification available at www.onvif.org
Smart Motion Detection:
Five-window video motion detection, people detection, time filter
Smart VCA:
Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection, crowd detection, running detection; *Please access https://license.vivotek.com/ to get the free trial license.
VADP Package:
Deep Learning VCA (Smart Motion Detection, Smart VCA), Stratocast, Trend Micro IoT Security (3-year free trial)
Event Trigger:
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, s
Event Action:
Event notification via audio clip, digital output, email, HTTP, FTP, NAS server, SD card; File upload via email, HTTP, FTP, NAS server, SD card
Connectors:
RJ-45 cable connector for 10/100Mbps Network/PoE connection; Audio line input; Audio line output; AC 24V power input (Optional); DC 12V power input; Digital input *2; Digital output *2; TV output
LED Indicator:
System power and status indicator
Power Input:
IEEE 802.3af Class 0 PoE, DC 12V, AC 24V (Optional); (Simultaneous Power Redundancy Supported)
Power Consumption:
PoE: Max. 12 W; DC 12V: Max. 9 W; AC 24V: Max. 10.5 W
Dimensions:
155 x 103.2 mm
Weight:
909 g
Certifications:
EMC: CE (EN 55032 Class A, EN55024), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66/67
Operating Temperature:
Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F); Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F) (IR off); -30°C ~ 50°C (-22°F ~ 122°F) (IR on)
Humidity:
98%
Operating System:
Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
Web Browser:
Chrome 58.0 or above; Internet Explorer 11
Other Players:
VLC: 1.1.11 or above
Packing Contents:
Quick installation guide, alignment sticker, screw pack, desiccant bag, waterproof accessory bag, conduit ring
