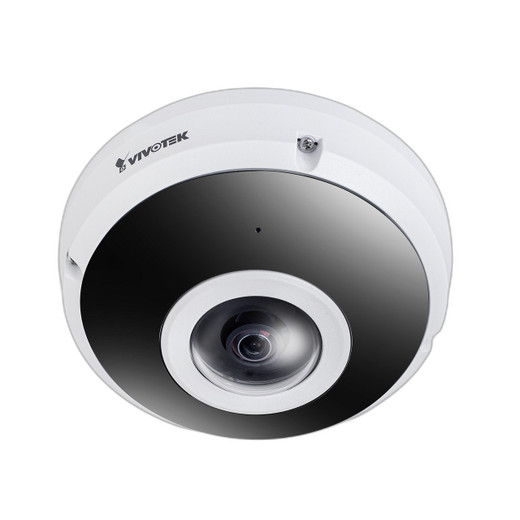

Model:
FE9391-EHV-v2
CPU:
Multimedia SoC (System-on-Chip)
Flash:
8B
RAM:
2B
Image Sensor:
1/2.3" Progressive CMOS in 4056x3040
Max. Resolution:
2944x2944
Lens Type:
Fixed-focal
Focal Length:
f = 1.22 mm
Aperture:
F2.0
Iris Type:
Fixed Iris
Field of View:
180° (Horizontal); 180° (Vertical); 180° (Diagonal)
Shutter Time:
1/5 sec. to 1/32,000 sec.
WDR Technology:
WDR Pro
Day/Night:
Yes
Removable IR-cut Filter:
Yes
IR Illuminators:
Built-in IR illuminators, effective up to 20 meters with Smart IR II, IR LED*4
Minimum Illumination:
0.1 lux @ F2.0 (Color);
Pan/Tilt/Zoom Functionalities:
ePTZ: 12x digital zoom (12x on IE plug-in)
Storage:
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Built-in Installation Aids:
Pixel calculator
Video Compression:
H.265, H.264, MJPEG
Maximum Frame Rate:
30fps @ 2944x2944 (WDR off); 20fps @ 2944x2944 (WDR on)
Maximum Streams:
3 video streams (up to 8 configurable profiles)
S/N Ratio:
56.9 dB
Dynamic Range:
120 dB
Video Streaming:
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings:
General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings; anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness,amma curve), defog, 3DNR; Expo
Display Mode:
Client Dewarping; Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions, 1O3R One Fisheye Three Regions, 1O8R One Fisheye Eight Regions; Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions, 1P
Audio Capability:
Two-way audio (Full duplex)
Audio Compression:
G.711,.726, MPEG-2 AAC-LC
Audio Interface:
Built-in microphone; External microphone input (FE9391-EHV-v2 (IO Cable), P/N 100273700G version only); External line output (FE9391-EHV-v2 (IO Cable), P/N 100273700G version only)
Effective Range:
5 meters
Users:
Live viewing for up to 10 clients
Security:
Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberat
Protocols:
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface:
10 Base-T/100 Base-TX Ethernet (RJ-45); *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF:
Profile, S, T supported, specification available at www.onvif.org
Compute Capability:
SoC with built-in hardware deep learning accelerator
Vision Object Analytics:
Object Detection: people, vehicle (4-wheeled, 2-wheeled);; Attribute Extraction: people (gender, color, bag, hat), vehicle (bike, bus, car, motorcycle, truck, color);; Re-Search Extraction;; Path Extraction
Application:
Deep Learning VCA (Smart Motion Detection, Smart VCA); Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unatte
Application available with license:
Running detection, Parking Violation Detection, Restricted Zone Detection; Support for more analytic applications and free trial, please visit vivotek.com/video-analytics
AI-powered Image Enhancement:
Smart IR III
Applications:
Stratocast, Trend Micro IoT Security (3-year free trial)
Event Trigger:
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, s
Event Action:
Event notification via audio clip*, digital output, email, HTTP, FTP, NAS server, SD card; File upload via email, HTTP, FTP, NAS server, SD card
Connectors:
RJ-45 cable connector for 10/100 Mbps PoE network connection; *FE9391-EHV-v2 (IO Cable), p/n 100273700G version (DC 12V power input, audio line input, audio line output, digital input*1, digital output*1)
LED Indicator:
System power and status indicator
Power Input:
IEEE 802.3at PoE Class 4
Power Consumption:
Max. 22.5 W/9.55 W (IR on/off)
Dimensions:
ø 150 x 68.2 mm
Weight:
701 g
Certifications:
EMC: CE (EN 55032 Class A, EN 55024), FCC (FCC Part 15 Subpart B Class A), VCCI (VCCI-CISPR 32 Class A);; Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22);; Environment: IK10 (IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Type 4X);; IA: B
Operating Temperature:
Starting Temperature: -20°C ~ 50°C (-4°F ~ 122°F); Working Temperature: -40°C ~ 55°C (-40°F ~ 131°F) (IR off); -40°C ~ 50°C (-40°F ~ 122°F) (IR on)
Humidity:
90% RH (non-condensing)
Operating System:
Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
Web Browser:
Chrome 58.0 or above; Internet Explorer 10/11
Other Players:
VLC: 1.1.11 or above
Packing Contents:
Quick installationuide, alignment sticker, desiccant bag, screw driver, screw pack
Detect (25PPM/ 8PPF:
31.5 m (103.3 ft)
Observe (63PPM/ 19PPF:
12.5 m (41 ft)
Recognize (125PPM/ 38PPF:
6.3 m (20.7 ft)
Identify (250PPM/ 76PPF:
3.1 m (10.2 ft)
