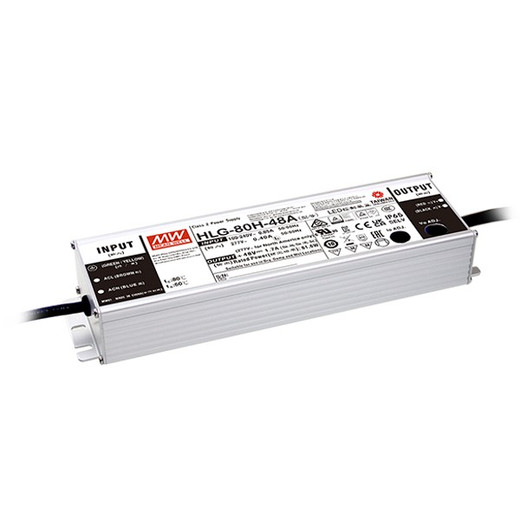

Vivotek HLG-80H-48
Vivotek HLG-80H-48
Write a Review 35% OFF

Vivotek

Vivotek HLG-80H-48 Power Supply 90-305VAC Input 48VDC/80W Output IP67 -40°C to 70°C

$108.00

Add to Cart for Sale Price!

$69.99
Adding to cart… The item has been added
SKU: HLG-80H-48
Availability: Usually Ships Same Business Day

Industry Leading Prices

Quantity Discounts
Available

Certified Experts

Pre and Post-sales
Support Available

Free Shipping on Orders Over $499

Same Day Shipping on
Most Orders

Vivotek HLG-80H-48 Power Supply 90-305VAC Input 48VDC/80W Output IP67 -40°C to 70°C

$108.00

Add to Cart for Sale Price!

$69.99
Add to Cart
Description

The Vivotek HLG-80H-48 Power Supply is a robust, high-performance device engineered for demanding IP surveillance environments. This power supply transforms a broad range of input voltages (90-305VAC) into a stable 48VDC/80W output, making it an ideal solution for powering advanced security equipment. With an IP67 rating, it is fully protected against dust and temporary immersion in water, ensuring its reliability in indoor and outdoor settings under varying weather conditions. Furthermore, it is designed to operate effectively within a wide temperature range of -40°C to 70°C, accommodating extreme environmental scenarios.

Key Features:

  • High-Efficiency Output: Provides a consistent 48VDC at 80W, suitable for high-demand applications.
  • Broad Voltage Input: Capable of handling input from 90 to 305VAC, ideal for varied global electrical standards.
  • IP67 Rated: Ensures complete protection against dust and immersion up to 1 meter in water.
  • Wide Operating Temperature: Functions reliably from -40°C to 70°C, perfect for harsh weather conditions.
  • Safety Features: Built-in protection against overvoltage, short circuits, and overcurrent to ensure device and system safety.

Compatibility:

  • Surveillance Cameras: Specifically designed to power Vivotek and other compatible IP cameras requiring 48VDC.
  • Various Installations: Ideal for use in both indoor and outdoor settings, especially in industrial and extreme environments.
  • Network Devices: Supports network equipment and other devices requiring stable high-power input.

Package Contents:

  • Vivotek HLG-80H-48 Power Supply
  • Installation Guide
  • AC Power Cord

Summary:

The Vivotek HLG-80H-48 Power Supply is distinguished by its versatility, robustness, and efficiency, making it a standout choice for modern surveillance systems. Its capability to withstand harsh conditions and ensure continuous, reliable power supply enhances its suitability for critical security operations, ensuring that systems function seamlessly.

Specifications
DC VOLTAGE: 48V
CONSTANT CURRENT REGION: 28.8 ~ 48V
RATED CURRENT: 1.7A
RATED POWER: 81.6W
RIPPLE & NOISE (max: 200mVp-p
VOLTAGE ADJ. RANGE: 43 ~ 53V
CURRENT ADJ. RANGE: 1.02 ~ 1.7A Can be adjusted by internal potentiometer A type only
VOLTAGE TOLERANCE: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1200ms,80ms/115VAC 500ms,80ms/230VAC at full load; B type 1200ms,200ms/115VAC 500ms,200ms/230VAC at 95% load
HOLD UP TIME (Typ: 16ms at full load 230VAC /115VAC
VOLTAGE RANGE: 90 ~ 305VAC, 127 ~ 431VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ: PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION: THD< 20% when output loading≧60% at 115VAC/230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ: 0.91
AC CURRENT (Typ: 0.425A / 230VAC
INRUSH CURRENT (Typ: COLD START 70A(twidth=485μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT:
OVER CURRENT: 95 ~ 108% Protection type: Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 54 ~ 63V Protection type: Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover
WORKING TEMP: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY STANDARDS: UL8750, CSA C22.2 No. 250.0-08(except for HLG-80H-48/54V & HLG-80H-48/54BL), UL8750 listed for HLG-80H-□BL, EN61347-1, EN61347-2-13 independent, optional models for J61347-1, J61347-2-13, IP65 or IP67 approved; Design refer to UL60950-1, TUV EN60950-
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 Class C (≧60% load) ; EN61000-3-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria A
MTBF: 357.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 195.6*61.5*38.8mm (L*W*H)
PACKING: 0.84Kg; 16pcs/14.4Kg/0.54CUFT
