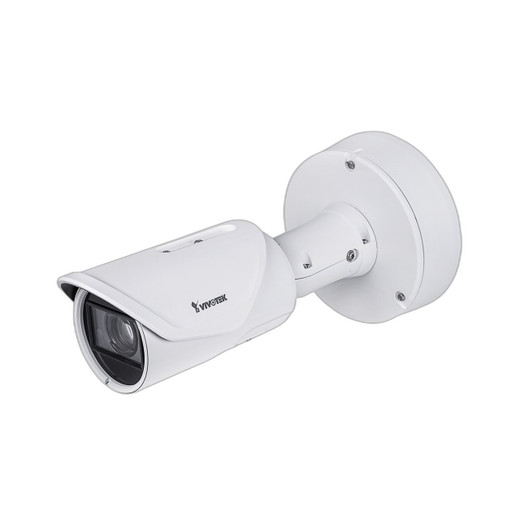

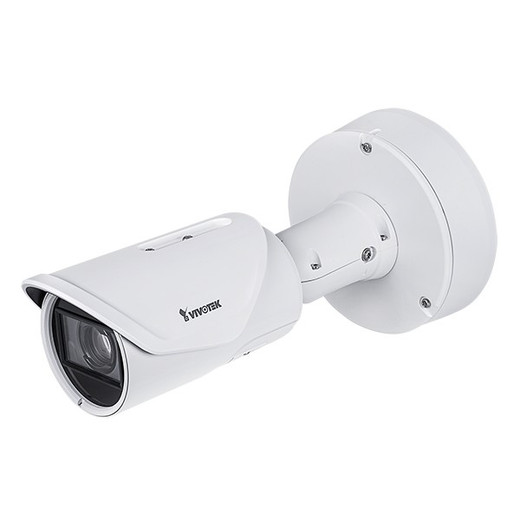

Model:
IB9367-EHT-v2 (2.7-13.5mm); IB9367-EHT-v2 (5-50mm)
CPU:
Multimedia SoC (System-on-Chip)
Flash:
8 GB
RAM:
1 GB
Image Sensor:
1/2.8" Progressive CMOS
Max. Resolution:
1920x1080 (2MP)
Lens Type:
Motorized, Vari-focal, Remote Focus
Focal Length:
IB9367-EHT-v2 (2.7-13.5mm): f = 2.7 ~ 13.5 mm; IB9367-EHT-v2 (5-50mm): f = 5 ~ 50 mm
Aperture:
IB9367-EHT-v2 (2.7-13.5mm): F1.4 ~ F2.8; IB9367-EHT-v2 (5-50mm): F2.0
Iris Type:
IB9367-EHT-v2 (2.7-13.5mm): P-iris; IB9367-EHT-v2 (5-50mm): DC-iris
Field of View:
IB9367-EHT-v2 (2.7-13.5mm): 105° ~ 33° (Horizontal); 55° ~ 18° (Vertical); 126° ~ 37° (Diagonal); IB9367-EHT-v2 (5-50mm): 47° ~ 8° (Horizontal); 26° ~ 5° (Vertical); 55° ~ 9° (Diagonal)
Shutter Time:
1/5 sec. to 1/32,000 sec.
WDR Technology:
WDR Pro
Day/Night:
Yes
Removable IR-cut Filter:
Yes
IR Illuminators:
IB9367-EHT-v2 (2.7-13.5mm): Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*4; IB9367-EHT-v2 (5-50mm): Built-in IR illuminators, effective up to 100 meters with Smart IR II, IR LED*4
Minimum Illumination:
IB9367-EHT-v2 (2.7-13.5mm): 0.035 lux @ F1.4 (Color);
Pan Range:
±180°
Tilt Range:
90°
Rotation Range:
±180°
Pan/Tilt/Zoom Functionalities:
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage:
Seamless Recording to MicroSD/SDHC/SDXC card slot and recording to network-attached storage (NAS)
Built-in Installation Aids:
Remote focus, remote zoom, Micro USB*; *Requires Wi-Fi dongle and Micro B converter
Video Compression:
H.265, H.264, MJPEG
Maximum Frame Rate:
60 fps @ 1920x1080
Maximum Streams:
3 video streams (Up to 8 configurable profiles)
S/N Ratio:
IB9367-EHT-v2 (2.7-13.5mm): 53 dB; IB9367-EHT-v2 (5-50mm): 49 dB
Dynamic Range:
120 dB
Video Streaming:
Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings:
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sh
Audio Capability:
Two-way audio (Full duplex)
Audio Compression:
G.711, G.726, MPEG-2 AAC-LC
Audio Interface:
External microphone input; External line output
Users:
Live viewing for up to 10 clients
Security:
Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberat
Protocols:
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface:
10 Base-T/100 Base-TX Ethernet (RJ-45); *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF:
Profile G, S, T supported, specification available at www.onvif.org
Compute Capability:
SoC with built-in hardware deep learning accelerator
Vision Object Analytics:
Object Detection: people, vehicle (4-wheeled); Path Extraction
Application:
Deep Learning VCA (Smart Motion Detection, Smart VCA); Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unatte
Application available with license:
Running detection, Parking Violation Detection, Restricted Zone Detection; Support for more analytic applications and free trial, please visit https://vivotek.com/video-analytics
Applications:
Stratocast, Trend Micro IoT Security (3-year free trial)
Event Trigger:
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, s
Event Action:
Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card; File upload via email, HTTP, FTP/SFTP, NAS server, SD card
Connectors:
Default I/O; RJ-45 cable connector for 10/100 Mbps PoE network connection; Audio line input; Audio line output; DC 12V power input; Digital input; Digital output; Micro USB; Module I/O*; Digital input*2; Digital output*2; AC 24V power input; *Require
LED Indicator:
System power and status indicator
Power Input:
AC 24V*, DC 12V, IEEE 802.3af PoE Class 0 (Power Redundancy); *Requires extension I/O module kit
Power Consumption:
PoE: Max. 10.77/7.77 W (IR on/off); DC 12V: Max. 9.24/6.24 W (IR on/off); AC 24V*: Max. 10.3/7.3 W (IR on/off); *Requires extension I/O module kit
Dimensions:
ø 145.9 x 288 mm
Weight:
IB9367-EHT-v 2 (2.7-13.5mm): 1.97 kg; IB9367-EHT-v 2 (5-50mm): 2 kg
Certifications:
EMC: CE (EN 55032 Class A, EN 55035, EN 50121-4), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); Safety : UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 6
Operating Temperature:
Starting Temperature: -30°C ~ 50°C (-22°F ~ 122°F); Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F) (IR off); -40°C ~ 50°C (-40°F ~ 122°F) (IR on)
Humidity:
98% RH (non-condensing)
Operating System:
Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
Web Browser:
Chrome 58.0 or above; Internet Explorer 10/11
Other Players:
VLC: 1.1.11 or above
Packing Contents:
Quick installation guide, product lables, alignment sticker, L-shaped wrench, screw pack, waterproof accessory pack, sunshield, I/O cable
Optional Accessories:
Please refer to Accessory Selection Guide
Detect (25PPM/ 8PPF:
IB9367-EHT-v2 (2.7-13.5mm): Wide 48.0 m (157.48 ft); Tele 135.6 m (444.88 ft); IB9367-EHT-v2 (5-50mm): Wide 93.2 m (302.82 ft); Tele 585.0 m (1,919.29 ft)
Observe (63PPM/ 19PPF:
IB9367-EHT-v2 (2.7-13.5mm): Wide 19.1 m (62.66 ft); Tele 53.8 m (176.51 ft); IB9367-EHT-v2 (5-50mm): Wide 37.0 m (121.39 ft); Tele 232.1 m (761.48 ft)
Recognize (125PPM/ 38PPF:
IB9367-EHT-v2 (2.7-13.5mm): Wide 9.6 m (31.50 ft); Tele 27.1 m (88.91 ft); IB9367-EHT-v2 (5-50mm): Wide 18.6 m (61.02 ft); Tele 117.0 m (383.86 ft)
Identify (250PPM/ 76PPF:
IB9367-EHT-v2 (2.7-13.5mm): Wide 4.8 m (15.75 ft); Tele 13.6 m (44.62 ft); IB9367-EHT-v2 (5-50mm): Wide 9.3 m (30.51 ft); Tele 58.5 m (191.93 ft)
