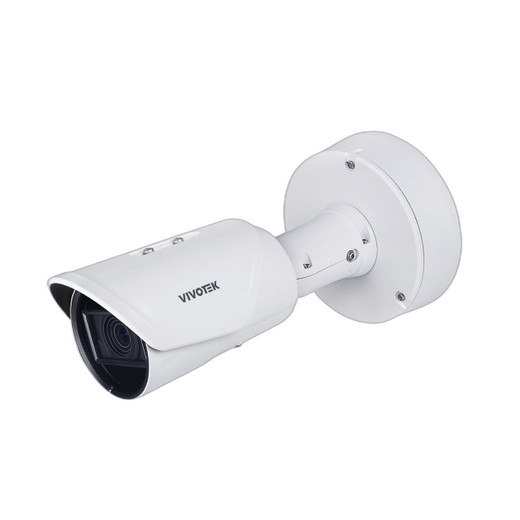

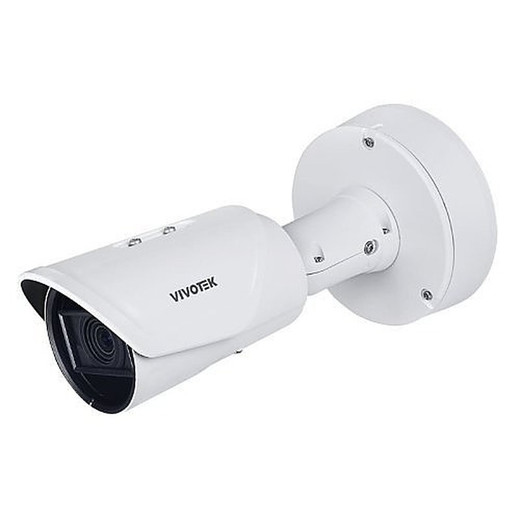

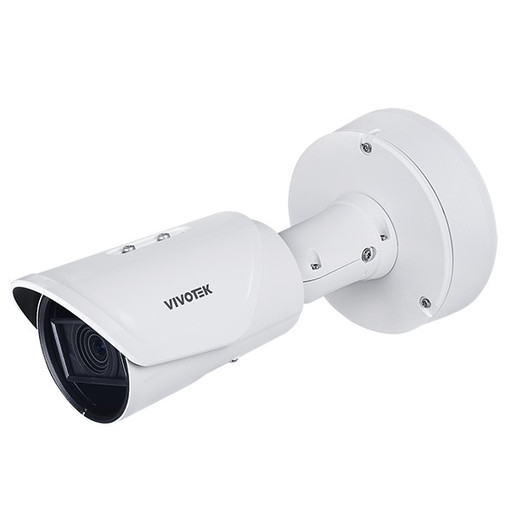

Model:
IB9391-EHTV-v2
CPU:
Multimedia SoC (System-on-Chip)
Flash:
8 GB
RAM:
2 GB
Image Sensor:
1/1.8" Progressive CMOS
Max. Resolution:
3840x2160 (8MP)
Lens Type:
Motorized, Vari-focal, Remote Focus
Focal Length:
f = 4.4 ~ 10.2 mm (f = 3.2~10.3mm, equivalent focal length @ 1/2.8")
Aperture:
F1.38 ~ F2.24
Iris Type:
P-iris
Field of View:
100° ~ 43° (Horizontal); 50° ~ 24° (Vertical); 110° ~ 49° (Diagonal)
Shutter Time:
1 sec. to 1/100,000 sec.
WDR Technology:
WDR Pro
Day/Night:
Yes
Removable IR-cut Filter:
Yes
IR Illuminators:
Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*4
Minimum Illumination:
0.01 lux @ F1.38 (Color);
Pan Range:
±180°
Tilt Range:
90°
Rotation Range:
±180°
Pan/Tilt/Zoom Functionalities:
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage:
Seamless Recording to MicroSD/SDHC/SDXC card slot and recording to network-attached storage (NAS)
Built-in Installation Aids:
Remote focus, remote zoom, Micro USB*, pixel calculator; *Requires Wi-Fi dongle and Micro B converter
Video Compression:
H.265, H.264, MJPEG
Maximum Frame Rate:
30 fps @ 3840x2160
Maximum Streams:
3 video streams (Up to 8 configurable profiles)
S/N Ratio:
58 dB
Dynamic Range:
120 dB
Video Streaming:
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings:
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, Smart IR (target zone); Image settings: white balance, image adjustment (brightness, contrast, saturatio
Audio Capability:
Two-way audio (Full duplex)
Audio Compression:
G.711, G.726, MPEG-2 AAC-LC
Audio Interface:
External microphone input; External line output
Users:
Live viewing for up to 10 clients
Security:
Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberat
Protocols:
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface:
10 Base-T/100 Base-TX Ethernet; *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF:
Profile G, S, T supported, specification available at www.onvif.org
Compute Capability:
SoC with built-in hardware deep learning accelerator
Vision Object Analytics:
Object Detection: people, vehicle (4-wheeled, 2-wheeled); Attribute Extraction: people (gender, color, bag, hat), vehicle (bike, bus, car, motorcycle, truck, color); Re-Search Extraction; Path Extraction
Application:
Deep Learning VCA (Smart Motion Detection, Smart VCA); Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unatte
Application available with license:
Running detection, Parking Violation Detection, Restricted Zone Detection; Support for more analytic applications and free trial, please visit vivotek.com/video-analytics
AI-powered Image Enhancement:
Smart IR III
VADP Package:
Stratocast, Trend Micro IoT Security (3-year free trial)
Event Trigger:
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, s
Event Action:
Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card; File upload via email, HTTP, FTP/SFTP, NAS server, SD card
Connectors:
RJ-45 cable connector for 10/100 Mbps PoE network connection; Audio line input; Audio line output; DC 12V power input; AC 24V power input; Digital input*3; Digital output*3; Micro USB
LED Indicator:
System power and status indicator
Power Input:
AC 24V, DC 12V, IEEE 802.3at PoE Class 4 (Power Redundancy)
Power Consumption:
PoE: Max. 19.38/15.80 W (IR on/off); DC 12V: Max. 15.84/12.26 W (IR on/off); AC 24V: Max. 16.52/12.94 W (IR on/off)
Dimensions:
ø 153 x 283 mm
Weight:
1.87 kg
Certifications:
EMC: CE (EN 55032/EN 55035 Class A, EN 50121-4), FCC (FCC Part 15 Subpart B Class A), UKCA (BS EN 55032/BS EN 55035 Class A),RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7); Safety: UL (UL 62368-1), CB (IEC/EN 62368
Operating Temperature:
Starting Temperature: -30°C ~ 60°C (-22°F ~ 140°F); Working Temperature: -50°C ~ 60°C (-58°F ~ 140°F) (IR off); -50°C ~ 50°C (-58°F ~ 122°F) (IR on)
Humidity:
98% RH (non-condensing)
Operating System:
Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
Web Browser:
Chrome 58.0 or above
Other Players:
VLC: 1.1.11 or above
Packing Contents:
Quick installation guide, product labels, alignment sticker, L-shaped wrench, screw pack, waterproof accessory pack, sunshield, I/O cable, adaptor plate, conduit bracket
Optional Accessories:
Please refer to Accessory Selection Guide
Detect (25PPM/ 8PPF:
Wide: 100.1 m (328.4 ft); Tele: 204.5 m (670.8 ft)
Observe (63PPM/ 19PPF:
Wide: 40.0 m (131.3 ft); Tele: 81.8 m (268.3 ft)
Recognize (125PPM/ 38PPF:
Wide: 20.0 m (65.6 ft); Tele: 40.9 m (134.1 ft)
Identify (250PPM/ 76PPF:
Wide: 10.0 m (32.7 ft); Tele: 20.4 m (67.0 ft)
