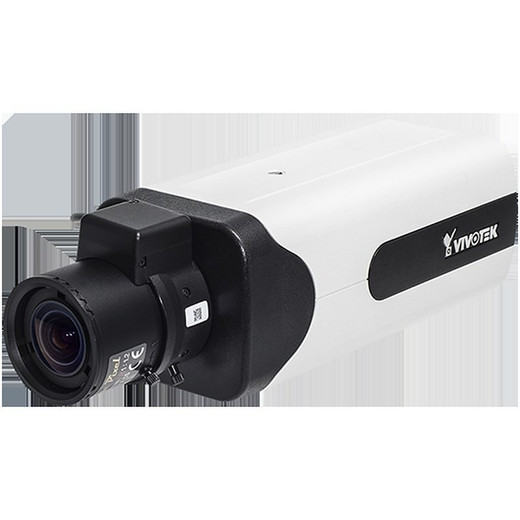

Model:
IP9165-HT-v2
CPU:
Multimedia SoC (System-on-Chip)
Flash:
8B
RAM:
2B
Image Sensor:
1/2" Progressive CMOS
Max. Resolution:
1920x1080 (2MP)

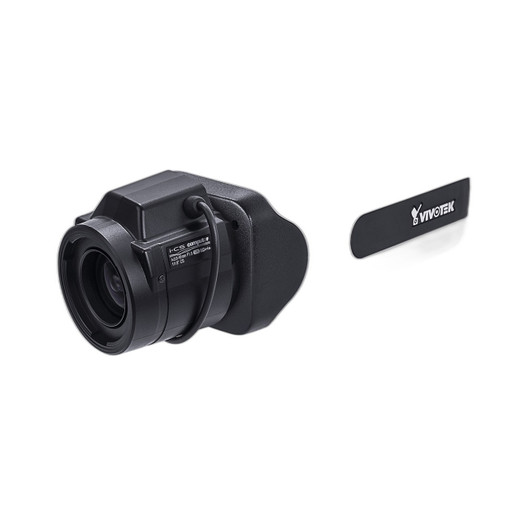

Lens Type:
Vari-focal, Remote Focus, i-CS
Focal Length:
f = 3.9 ~ 10 mm
Aperture:
F1.5 ~ F2.7
Iris Type:
DC-iris, P-iris, i-CS
Field of View:
109.7° ~ 42.7° (Horizontal); 58.5° ~ 23.9° (Vertical); 129.9° ~ 49° (Diagonal)
Shutter Time:
1/5 sec. to 1/32,000 sec.
WDR Technology:
WDR Pro II
Day/Night:
Yes
Removable IR-cut Filter:
Yes
Minimum Illumination:
0.01 lux @ F1.5 (Color); 0.005 lux @ F1.5 (B/W)
Pan/Tilt/Zoom Functionalities:
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage:
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video Compression:
H.265, H.264, MJPEG
Maximum Frame Rate:
60 fps @ 1920x1080
Maximum Streams:
3 simultaneous streams
S/N Ratio:
66.2 dB
Dynamic Range:
140 dB
Video Streaming:
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings:
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sh
Audio Capability:
Two-way audio (Full duplex)
Audio Compression:
G.711,.726, MPEG-2 AAC-LC
Audio Interface:
External microphone input; External line output
Users:
Live viewing for up to 10 clients
Security:
Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberat
Protocols:
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, SFTP, TCP/IP, TLS 1.2, UDP, UPnP
Interface:
10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45); *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF:
Profile, S, T supported, specification available at www.onvif.org
Compute Capability:
SoC with built-in hardware deep learning accelerator
Vision Object Analytics:
Object Detection: people, vehicle (4-wheeled, 2-wheeled);; Attribute Extraction: people (gender, color, bag, hat), vehicle (bike, bus, car, motorcycle, truck, color);; Re-Search Extraction;; Path Extraction
Application:
Deep Learning VCA (Smart Motion Detrection); Smart VCA with i-CS lens Smart VCA (Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Crowd detection); Smart VCA with non
Application available with license:
Running detection, Parking Violation Detection, Restricted Zone Detection; Support for more analytic applications and free trial, please visit vivotek.com/video-analytics
VADP Package:
Stratocast, Trend Micro IOT Security (3-year free trial)
Event Trigger:
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, s
Event Action:
Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card; File upload via email, HTTP, FTP/SFTP, NAS server, SD card
Connectors:
RJ-45 cable connector for 10/100/1000Mbps Network/PoE connection; Audio input; Audio output; AC 24V power input *1; DC 12V power input*1; Digital input *2; Digital output *2; RS485*1; BNC *1
LED Indicator:
System power and status indicator
Power Input:
AC 24V, DC 12V, IEEE 802.3af PoE Class 0
Power Consumption:
DC 12V: Max. 8.88 W; AC 24V: Max. 17 W; PoE: Max. 10 W
Dimensions:
155 (D) x 70 (W) x 61 (H) mm (w/o lens); 210 (D) x 70 (W) x 66 (H) mm (w/ lens)
Weight:
680 g (w/o lens); 790 g (w/ lens)
Certifications:
CE, LVD, FCC Class B, VCCI, C-Tick, UL/CUL, BIS, BSMI
Operating Temperature:
Start Temperature: 0°C ~ 50°C (32°F ~ 122°F); Working temperature: -10°C ~ 60°C (14°F ~ 140°F)
Humidity:
90% (non-condensing)
Operating System:
Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
Web Browser:
Chrome 58.0 or above; Internet Explorer 10/11
Other Players:
VLC: 1.1.11 or above
Packing Contents:
Quick installationuide, lens, camera stand
