Model:

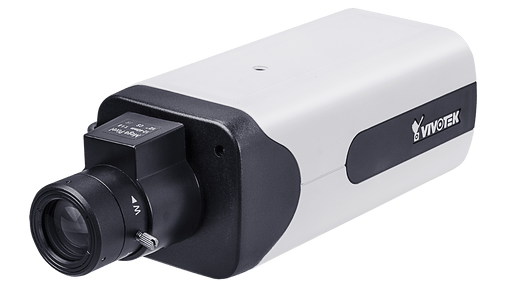

IP9165-LPC-v2(9-50m)
CPU:
Multimedia SoC (System-on-Chip)
Flash:
8B
RAM:
2B
Image Sensor:
1/2" Progressive CMOS
Max. Resolution:
1920x1080 (2MP)
Lens Type:
IP9165-LPC-v2(9-50m): Vari-focal, Remote Focus(i-CS)
Focal Length:
IP9165-LPC-v2(9-50mm): f = 9 ~ 50 mm
Aperture:
IP9165-LPC-v2(9-50mm): F1.5 ~ F1.6
Iris Type:
IP9165-LPC-v2(9-50mm): i-CS; (i-CS/P-iris/DC-iris all reserved)
Field of View:
IP9165-LPC-v2(9-50mm): 42.8° ~ 8.3° (Horizontal); 24.3° ~ 4.7° (Vertical); 48.9° ~ 9.46° (Diagonal)
Shutter Time:
1/5 sec. to 1/32,000 sec.
WDR Technology:
WDR Pro II
Day/Night:
Yes
Removable IR-cut Filter:
Yes (Headlight filter design for Anti-Glare)
Minimum Illumination:
IP9165-LPC-v2(9-50mm): 0.01 lux @ F1.5 (Color)
Pan/Tilt/Zoom Functionalities:
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage:
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video Compression:
H.265, H.264, MJPEG
Maximum Frame Rate:
60 fps @ 1920x1080
Maximum Streams:
3 simultaneous streams
S/N Ratio:
66.2 dB
Dynamic Range:
140 dB
Video Streaming:
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings:
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment
Audio Capability:
Two-way audio (Full duplex)
Audio Compression:
G.711,.726, MPEG-2 AAC-LC
Audio Interface:
External microphone input; External line output
Users:
Live viewing for up to 10 clients
Security:
Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security
Protocols:
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, SFTP, TCP/IP, TLS 1.2, UDP, UPnP
Interface:
10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45); *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF:
Profile, S, T supported, specification available at www.onvif.org
Compute Capability:
SoC with built-in hardware deep learning accelerator
Vision Object Analytics:
Object Detection: people, vehicle (4-wheeled, 2-wheeled);; Attribute Extraction: people (gender, color, bag, hat), vehicle (bike, bus, car, motorcycle, truck, color);; Re-Search Extraction;; Path Extraction
Application:
Deep Learning VCA (Smart Motion Detrection); Smart VCA with i-CS lens Smart VCA (Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Crowd detection)
Application available with license:
Running detection, Parking Violation Detection, Restricted Zone Detection; Support for more analytic applications and free trial, please visit vivotek.com/video-analytics
VADP Package:
Stratocast, Trend Micro IOT Security (3-year free trial)
Event Trigger:
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy
Event Action:
Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card; File upload via email, HTTP, FTP/SFTP, NAS server, SD card
Connectors:
RJ-45 cable connector for 10/100/1000Mbps Network/PoE connection; Audio input; Audio output; AC 24V power input *1; DC 12V power input*1; Digital input *2; Digital output *2; RS485*1; BNC *1
LED Indicator:
LED Indicator System power and status indicator
Power Input:
AC 24V, DC 12V, IEEE 802.3af PoE Class 0
Power Consumption:
DC 12V: Max. 8.88 W; AC 24V: Max. 17 W; PoE: Max. 10 W
Dimensions:
Without lens: 155 (D) x 70 (W) x 61 (H) mm; IP9165-LPC-v 2(9-50mm): 263 (D) x 78 (W) x 84 (H) mm
Weight:
Without lens: : 680 g; IP9165-LPC-v 2(9-50mm): 970 g
Certifications:
CE, LVD, FCC Class B, VCCI, C-Tick, UL/CUL, BIS, BSMI
Operating Temperature:
Start Temperature: 0°C ~ 50°C (32°F ~ 122°F); Working temperature: -10°C ~ 60°C (14°F ~ 140°F)
Humidity:
90% (non-condensing)
Operating System:
Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
Web Browser:
Chrome 58.0 or above; Internet Explorer 10/11
Other Players:
VLC: 1.1.11 or above
Packing Contents:
Quick installationuide, lens
