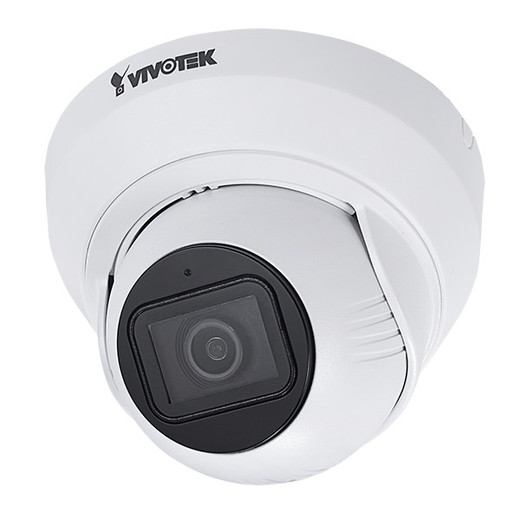

Model:
IT9389-H-v2
CPU:
Multimedia SoC (System-on-Chip)
Flash:
8B
RAM:
1B
Image Sensor:
1/2.7" Progressive CMOS
Max. Resolution:
2560x1920 (5MP)
Lens Type:
Fixed-focal
Focal Length:
f = 2.8 mm
Aperture:
F2.0
Iris Type:
Fixed iris
Field of View:
103° (Horizontal); 76° (Vertical); 134° (Diagonal)
Shutter Time:
1/5 sec. to 1/32,000 sec.
WDR Technology:
WDR Pro
Day/Night:
Yes
Removable IR-cut Filter:
Yes
IR Illuminators:
Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
Minimum Illumination:
0.06 lux @ F2.0 (Color); 0.01 lux @ F2.0 (B/W); 0 lux with IR illumination on
Pan Range:
359°
Tilt Range:
75°
Rotation Range:
180°
Pan/Tilt/Zoom Functionalities:
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage:
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video Compression:
H.265, H.264, MJPEG
Maximum Frame Rate:
30 fps @ 2560x1920; 60 fps @ 1920x1080
Maximum Streams:
3 video streams* (Up to 8 configurable profiles); * Stream 1: 2560x1920; * Stream 2: 1280x960, 800x600, 640x480; * Stream 3: 800x600, 640x480
S/N Ratio:
55 dB
Dynamic Range:
120 dB
Video Streaming:
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings:
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sh
Audio Capability:
One-way Audio
Audio Compression:
G.711,.726, MPEG-2 AAC-LC
Audio Interface:
Built-in microphone
Effective Range:
5 meters
Users:
Live viewing for up to 10 clients
Security:
Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberat
Protocols:
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface:
10 Base-T/100 Base-TX Ethernet (RJ-45); *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF:
Profile, S, T supported, specification available at www.onvif.org
Compute Capability:
SoC with built-in hardware deep learning accelerator
Vision Object Analytics:
Object Detection: people, vehicle (4-wheeled); Path Extraction
Application:
Deep Learning VCA (Smart Motion Detection, Smart VCA); Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unatte
Application available with license:
Running detection, Parking Violation Detection, Restricted Zone Detection; Support for more analytic applications and free trial, please visit https://vivotek.com/video-analytics
Applications:
Stratocast, Trend Micro IoT Security (3-year free trial)
Event Trigger:
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection,
Event Action:
Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card; File upload via email, HTTP, FTP/SFTP, NAS server, SD card
Connectors:
RJ-45 cable connector for 10/100Mpbs Network/PoE connection
LED Indicator:
System power and status indicator
Power Input:
IEEE 802.3af PoE Class 0
Power Consumption:
Max. 7.4 W (IR on); Max. 6.4 W (IR off)
Dimensions:
Ø 122 x 99 mm (w/ mounting bracket); Ø 108 x 79 mm (w/o mounting bracket)
Weight:
392 g (w/ mounting bracket); 332 g (w/o mounting bracket)
Certifications:
EMC: CE (EN55032, EN55024 Class A, EN50121-4 ), FCC (FCC Part 15 Subpart B Class A),; RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A);; Safety : UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471);; Environment: IK08 (IEC 62
Operating Temperature:
Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F); Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
Humidity:
98% RH (non-condensing)
Operating System:
Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
Web Browser:
Chrome 58.0 or above; Internet Explorer 10/11
Other Players:
VLC: 1.1.11 or above
Packing Contents:
Quick installationuide, alignment sticker, screw pack
Detect (25PPM/ 8PPF:
68.6 m (225.1 ft)
Observe (63PPM/ 19PPF:
27.2 m (89.3 ft)
Recognize (125PPM/ 38PPF:
13.7 m (45.0 ft)
Identify (250PPM/ 76PPF:
6.9 m (22.5 ft)
