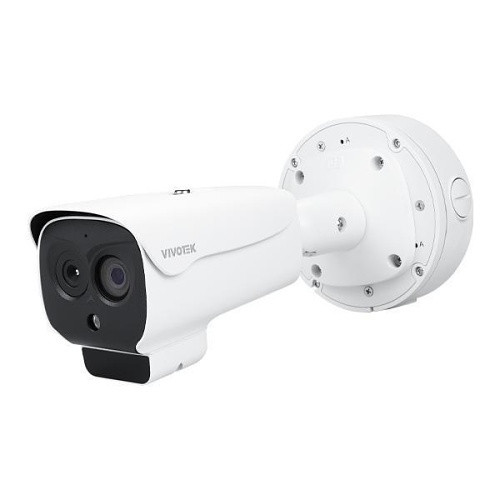

Model:
MD9584-H(3.6mm); MD9584-H(6mm)
CPU:
Multimedia SoC (System-on-Chip)
Flash:
8B
RAM:
2B
Image Sensor:
1/2.7" Progressive CMOS
Max. Resolution:
2560x1920 (5MP)
Lens Type:
Fixed-focal
Focal Length:
MD9584-H(3.6mm): f = 3.6 mm; MD9584-H(6mm): f = 6 mm
Aperture:
MD9584-H(3.6mm): F2.0; MD9584-H(6mm): F2.0
Iris Type:
Fixed Iris
Field of View:
MD9584-H(3.6mm): 83° (Horizontal); 61° (Vertical); 111° (Diagonal); MD9584-H(6mm): 50° (Horizontal); 37° (Vertical); 63° (Diagonal)
Shutter Time:
1/5 sec. to 1/32,000 sec.
WDR Technology:
WDR Pro
Day/Night:
Yes
Removable IR-cut Filter:
Yes
IR Illuminators:
Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*4
Minimum Illumination:
MD9584-H(3.6mm): 0.1 lux @ F2.0 (Color); 0.01 lux @ F2.0 (B/W); 0 lux with IR illumination on; MD9584-H(6mm): 0.1 lux @ F2.0 (Color); 0.01 lux @ F2.0 (B/W); 0 lux with IR illumination on
Tilt Range:
+30°
Rotation Range:
± 90°
Pan/Tilt/Zoom Functionalities:
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage:
Seamless Recording to MicroSD/SDHC/SDXC card slot and recording to network-attached storage (NAS)
Video Compression:
H.265, H264, MJPEG
Maximum Frame Rate:
30 fps @ 2560x1920; 60 fps @ 1920x1080
Maximum Streams:
3 simultaneous streams (Up to 8 configurable profiles)
S/N Ratio:
MD9584-H(3.6mm): 55 dB; MD9584-H(6mm:): 80 dB
Dynamic Range:
120 dB
Video Streaming:
Adjustable resolution, quality and bit rate, Smart Stream III
Image Settings:
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sh
Audio Capability:
Two-way audio (Full duplex)*
Audio Compression:
G.711,.726, MPEG-2 AAC-LC
Audio Interface:
External microphone input*; External line output*; * Requires optional cable
Users:
Live viewing for up to 10 clients
Security:
Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberat
Protocols:
802.1X, ARP, Bonjour, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
Interface:
10Base-T/100 BaseTX Ethernet (M12, Female, 4pin D-coded)
ONVIF:
Profile, S, T supported, specification available at www.onvif.org
Smart Motion Detection:
Five-window video motion detection, people detection, time filter
Smart VCA:
*Optional (Please contact transportation@vivotek.com for further support)
VADP Package:
Trend Micro (3-year free trial), Deep Learning VCA (Smart Motion Detection, Smart VCA*); * Optional
Event Trigger:
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, s
Event Action:
Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card, push notification; File upload via email, HTTP, FTP/SFTP, NAS server, SD card
Connectors:
M12 4pin D-coded, Female connector for 10/100Mbps Network/PoE connection; M12 5pin A-coded, Male connector for DC 24V heater; ; External Microphone input *; External line output *; Digital input *; Digital output*; * Requires optional cable
LED Indicator:
System power and status indicator
Power Input:
Camera: IEEE 802.3af PoE Class 0; Heater: DC 24V
Power Consumption:
Camera: Max. 10.26 W/ 6.08 W (IR on/off); Heater: 24 W
Dimensions:
122 x 180 x 59 mm
Weight:
apprrox. 812 g
Casing:
IP68, IP6K9K, NEMA 4X, IK10+ casing with AR-coatedlass
Certifications:
EMC: CE (EN 55035, EN 55032 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A);; Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471);; Environment: IK10+ (IEC 62262), IP6
Operating Temperature:
Starting Temperature: -40°C ~ 70°C (-40°F ~ 158°F); Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F) (IR on); -40°C ~ 70°C (-40°F ~ 158°F) (IR off)
Humidity:
98% RH (non-condensing)
Operating System:
Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
Web Browser:
Chrome 58.0 or above; Internet Explorer 10/11
Other Players:
VLC: 1.1.11 or above
Packing Contents:
Quick installationuide, alignment sticker, screwdriver, accessories bag
