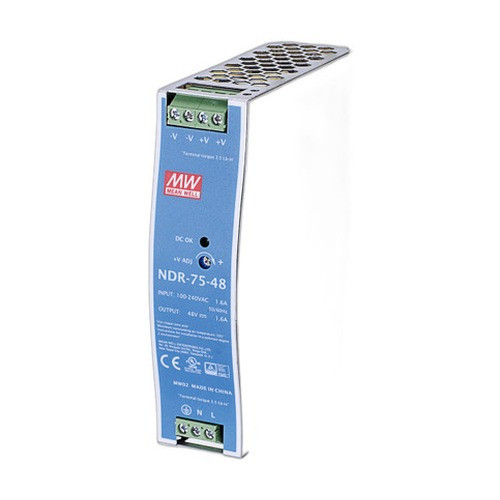

Vivotek NDR-75-48 Power Supply 90-264VAC Input 48VDC/75W Output -20°C to 70°C

$64.80

Add to Cart for Sale Price!

$42.99
Description

The Vivotek NDR-75-48 Power Supply is engineered to deliver a reliable and high-performance power solution for demanding IP surveillance applications. With its ability to convert a broad range of AC input (90-264VAC) into a stable 48VDC output, this power supply unit (PSU) meets the critical needs of modern surveillance systems. The robust design is built to operate across a wide temperature spectrum from -20°C to 70°C, ensuring consistent performance under various environmental conditions. This makes the NDR-75-48 an excellent choice for outdoor deployments or industrial settings where temperature fluctuations are common.

Key Features:

  • High Output Capacity: Delivers 48VDC with a power output of 75W, suitable for powering high-demand devices.
  • Wide Input Voltage Range: Accommodates input voltages from 90 to 264 VAC, ensuring flexibility across global electrical standards.
  • Extreme Temperature Resilience: Engineered to function in extreme temperatures, making it ideal for challenging outdoor or industrial environments.
  • Energy Efficient: Features an efficiency rate of up to 89%, reducing energy consumption and operational costs.
  • Safety Protections: Equipped with overvoltage, overcurrent, and short-circuit protections to safeguard connected devices.

Compatibility:

  • Surveillance Equipment: Designed for use with Vivotek's range of IP cameras and any device requiring 48VDC.
  • Industrial Applications: Suitable for use in industrial settings due to its durable construction and temperature resilience.

Package Contents:

  • Vivotek NDR-75-48 Power Supply Unit
  • Installation Manual
  • AC Power Cable

Summary:

The Vivotek NDR-75-48 Power Supply stands out in the field of IP surveillance for its robust design and reliable performance under diverse and demanding conditions. Offering high power efficiency and built with protective features, it ensures that surveillance systems operate smoothly and without interruption, no matter the external environmental challenges.

Specifications
DC VOLTAGE: 48V
RATED CURRENT: 1.6A
CURRENT RANGE: 0-1.6A
RATED POWER: 76.8W
RIPPLE & NOISE (max.) Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 48 - 55V
VOLTAGE TOLERANCE Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1200ms, 60ms/230VAC, 2000ms, 60ms/115VAC at full load
HOLD UP TIME (Typ: 60ms/230VAC, 12ms/115VAC at full load
VOLTAGE RANGE Note.6: 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)]
FREQUENCY RANGE: 47 - 63Hz
EFFICIENCY (Typ: 89%
AC CURRENT (Typ: 1.45A/115VAC, 0.9A/230VAC
INRUSH CURRENT (Typ: 20A/115VAC, 35A/230V AC
LEAKAGE CURRENT:
OVERLOAD: 105 ~ 130% rated output power, Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 56 ~ 65V, Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Protection type : Shut down o/p voltage, re-power on to recover
WORKING TEMP: -20 ~ +70°C (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 - +85°C, 10 - 95% RH
TEMP. COEFFICIENT: ±0.03%/°C (0 - 50°C)
VIBRATION: Component:10 - 500Hz, 2G 10min./1 cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY STANDARDS: UL508, TUV EN60950-1 approved_
WITHSTAND VOLTAGE: l/P-O/P:3KVAC l/P-FG:2KVAC Q/P-FG:0.5KVAC_
ISOLATION RESISTANCE: l/P-O/P, l/P-FG, Q/P-FG:>100M Ohms / 500VDC / 25°C/ 70% RH
EMC EMISSION: Compliance to EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A
MTBF: 486.2K hrs min. MIL-HDBK-217F (25°C)
DIMENSION: 32*125.2*102mm (W*H*D)
PACKING: 0.51Kg; 28pcs/15.3Kg/1.22CUFT
