Model:

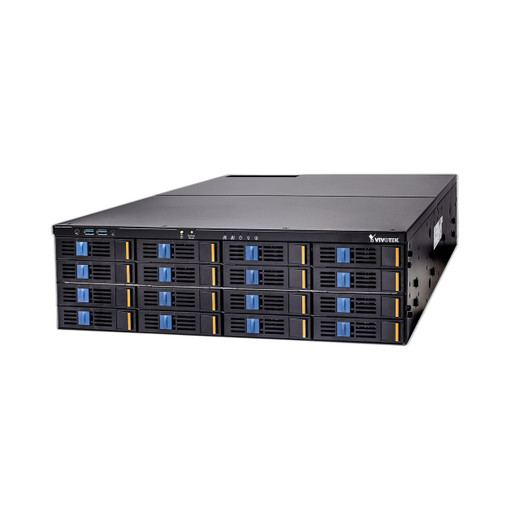

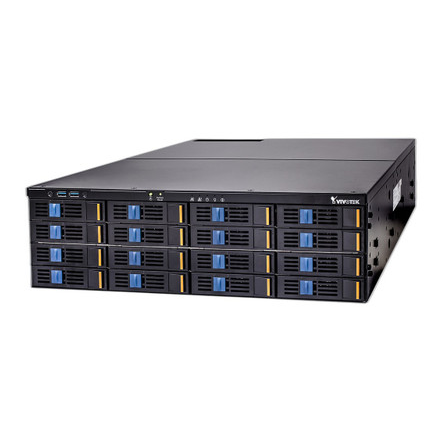

NR9782-v2
OS:
Embedded Windows 10
Watchdog:
Hardware + Software
Power Restoration:
System restart automatically after power recovery
LiveView Display:
128 Channels (with dual monitors); Equal: 1x1, 2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8; Panorama: 1P+6, 2P, 2P+3, 3P; Focus: 1+12, 1+16, 1+3, 1+5, 1+7, 1+9, 2+8; Vertical: 1V+6, 2V+2, 2V+3, 3V, 3V+4, 4V, 4V+4, 5V; Single layout display, full screen display
Video Output:
HDMI x1, Display Port x1, DVI x1
Display Resolution:
HDMI: 1920x1080; DVI: 1920x1080; DP: 4096x2304
Dual Monitor:
Supported
Camera Position:
Change the viewcell position on the Live View screens
Stream Application:
Stream selection & auto stream size
Monitor Enhancement:
eMap embedded; Drag & Drop; Remote I/O control; PiP (digital zoom); Instant playback; Video display mode (aspect ratio & camera information); Metadata display (VCA, POS and Data Magnet)
Fisheye Dewarp:
1O, 1P, 1R, 1O3R, 4R, 2P, 4R Pro, 1O8R and fisheye auto-pan
PTZ/ePTZ Operation:
Direction control, home, zoom, focus, iris, preset, patrol (group), tracking, pan, stop, speed, wiper blade control
Video Format:
MJPEG, MPEG4, H.264 AVC, H.264 SVC, H.265
Graphic Decoder:
Software decoding
Decoding Resolution:
Up to 8192x8192
Decoding Capability:
H.264: 1920x1080 @ 540 fps; H.265: 1920x1080 @ 270 fps
Audio Format:
G.711, G.726, AMR, AAC
Audio In/Out:
Microphone audio jack Input x1; 3.5 line output audio jack x1
2-way Audio:
Supported
Recording Time (sec:
Pre-Record: 3-15; Post-Record: 10-60
Recording Stream:
Single
Recording Throughput:
512 Mbps
Recording Mode:
Continuous, event, customized schedule, activity adaptive streaming
Recording Setting:
Recycling time depends on the remaining storage space or the set number of days
Seamless Recording:
Supported
HDD Devices:
Hot-Swappable tray x16; *HDD is purchased by separately.
HDD Max. Capacity:
*Please refer to recommended HDD list on the VIVOTEK website.
RAID:
RAID 0, 1, 5, 6, 10
Disk Management:
Create, format and remove disk
Manual Backup:
USB Dongle (FAT Format); NAS (SMB & CIFS
Schedule Backup:
NAS (SMB & CIFS)
Playback Display:
64 Channels (the max. number of monitors supported depends on the decoding capability of your system); Equal: 1x1, 2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8; Panorama: 1P+6, 2P, 2P+3, 3P; Focus: 1+12, 1+16, 1+3, 1+5, 1+7, 1+9, 2+8; Vertical: 1V+6, 2V+2, 2V+3
Playback Control:
Play, rewind, pause, stop, next/previous frame, 1/64X ~ 64X speed control, bookmark
Video Search:
Calendar, event, alarm, bookmark, thumbnail, Smart Search II, transaction (POS), Data Magnet, log
Snapshot:
BMP & JPEG
Video Clip Export:
3GP & EXE
Ethernet:
10/100/1000Mbps Ethernet (RJ-45) x2
Video Throughput for Remote Client:
400 Mbps
Protocols:
IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter
Alarm Period (sec:
Max. 30
Alarm Filter:
Time, trigger type (camera/substation/system), status, name, trigger source
Alarm Setting:
Realtime system notification; Alarm result display by list or thumbnail
Schedule Type:
Continuous, schedule, manual
Camera Event:
General: motion detection, camera DI, camera DO, IR (infrared), PIR (passive infrared), tampering detection, temperature, camera disconnected, recording error, stop recording, video loss (video server only), SD card life expectancy detection, audio d
Substation:
ND Series NVR: fan status, network disconnected, storage failure, storage full, number of remaining people, brute force attack, cyberattack, quarantine event; NR Series NVR: network disconnected, storage failure, storage full; NV Series NVR: abnormal
External Devices Event:
DI/O (with I/O box), TCP message
Action:
Start to record videos, set DO status, go to camera presets, send HTTP requests, send live streaming, send email with snapshot of assigned camera(s), go to eMap, sound the alarm and add bookmark
Alarm State for Management:
New, in progress, false alarm and close
Alarm Result Export:
.csv file
Source:
Import picture & folder
Device:
Camera, external DI/O
Marked:
Add, remove, direction control, PTZ control, FOV control, live view & playback
Event Notification:
One or more live streaming
USB:
Front: USB 3.0 x2; Back: USB 3.0 x6, USB2.0 x2
Audio In/ Out:
Microphone audio jack Input x1; 3.5 Line output audio jack x1
POS Integration:
Supported
UPS Integration:
Supported
Camera Integration:
ONVIF Profile S
I/O Box Integration:
Advantech ADAM-6000 series; CHIYU CYT-133SC; MOXA ioLogik E1210, E1211 and E1212
User Management:
Authentication: basic account / Windows AD account; User account: 1024; User level: administrator / customized user
Log:
Operation, system and event log
Date & Time:
Sync server
VCA Counting Solution:
Supported
VCA Event Search:
Smart VCA, Smart 360 VCA
Smart Search:
Smart Search, Smart Search II
Cybersecurity Management:
Supported
Failover:
Supported
Software AP:
Shepherd, VAST 2
Mobile/Tablet App:
iViewer (iOS/Android)
Power Input:
Redundant power 100~220V AC
Power Consumption:
Max. 550 W
Redundant Power:
Supported
80 Plus Certified:
Silver
Dimensions:
132 (H) x 435 (W) x 540 (D) mm
Weight:
33 kg (without HDD)
Operating Temperature:
5°C ~ 35°C (41°F ~ 95°F)
Humidity:
0 ~ 95%
Safety Certifications:
CE, FCC, VCCI, C-Tick, UL, CB
