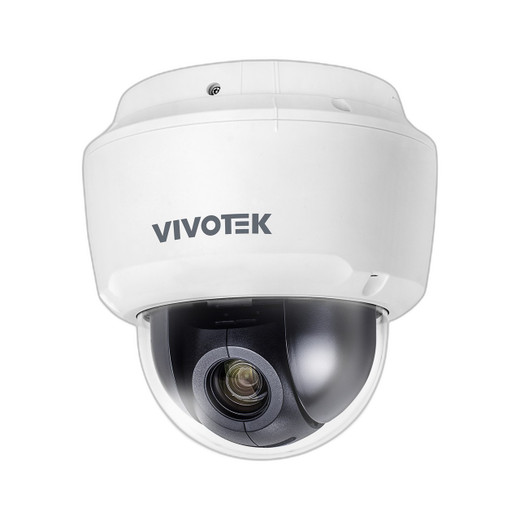

Model:
SD9161-H-v2
CPU:
Multimedia SoC (System-on-Chip)
Flash:
8 GB
RAM:
2 GB
Image Sensor:
1/2.8" Progressive CMOS
Max. Resolution:
1920x1080 (2MP)
Lens Type:
10x Optical Zoom, Auto Focus
Focal Length:
f = 5.1 ~ 51 mm
Aperture:
F1.6 ~ F1.8
Iris Type:
DC-iris
Field of View:
55.2° ~ 7.1° (Horizontal); 31.8° ~ 4.1° (Vertical); 62.4° ~ 8.1° (Diagonal)
Shutter Time:
1/8 sec. to 1/30,000 sec.
WDR Technology:
WDR Pro
Day/Night:
Yes
Removable IR-cut Filter:
Yes
Minimum Illumination:
0.14 lux @ F1.6 (Color); 0.005 lux @ F1.6 (B/W)
Pan Speed:
0.05° ~ 360°/s
Pan Range:
360° endless
Tilt Speed:
0.05° ~ 360°/s
Tilt Range:
180°
Preset Locations:
256 preset locations; 128 presets per tour
Pan/Tilt/Zoom Functionalities:
32x digital zoom (4x on IE plug-in, 8x built in); Auto pan mode; Auto patrol mode
Storage:
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video Compression:
H.265, H.264, MJPEG
Maximum Frame Rate:
60 fps @ 1920x1080
Maximum Streams:
3 video streams (Up to 8 configurable profiles)
S/N Ratio:
73 dB
Dynamic Range:
100 dB
Video Streaming:
Adjustable resolution, quality and constant bitrate control, Smart Stream III
Image Settings:
General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings; Illuminators: external illuminators; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness), defog, 3DN
Audio Capability:
Two-way audio (Full duplex)
Audio Compression:
G.711, G.726, MPEG-2 AAC-LC
Audio Interface:
External microphone input; External line output
Users:
Live viewing for up to 10 clients
Security:
Access list, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols:
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface:
10 Base-T/100 BaseTX Ethernet (RJ-45); *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF:
Profile G, S, T supported, specification available at www.onvif.org
Compute Capability:
SoC with built-in hardware deep learning accelerator
Vision Object Analytics:
Object Detection: People, Vehicle (4-wheeled, 2-wheeled); Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color); Re-Search Extraction; Path Extraction
Application:
Deep learning VCA (Smart tracking advanced); Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart Tracking Advanced,; Smart VCA (Intrusion detection, Loitering detection, Line crossing d
VADP Package:
Stratocast, Trend Micro IoT Security (3-year free trial)
Event Trigger:
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, s
Event Action:
Event notification via audio clip, camera link, digital output, email, HTTP, FTP, NAS server, SD card; File upload via email, HTTP, FTP, NAS server, SD card; trigger track, trigger patrol, move to preset
Connectors:
RJ-45 cable connector for 10/100Mbps Network/PoE connection; Audio line input; Audio line output; AC/DC 24V power input; Digital input *2; Digital output *1
LED Indicator:
System power and status indicator
Power Input:
AC 24V, DC 24V, IEEE 802.3at PoE Class 4; (Simultaneous Power Redundancy Supported)
Power Consumption:
PoE; Max: 17W; AC/DC 24V; Max: 17W
Dimensions:
Ø 172 x 157 mm
Weight:
1 kg
Certifications:
EMC: CE (EN 55032 Class A, EN55035), UKCA (BS EN 55032 Class A, BS EN 55035), FCC (FCC Part 15 Subpart B Class A), IC (ICES-003 Issue7:2020 Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); Safety: UKCA (BS EN 62368-1:2020+Q71:20
Operating Temperature:
-10°C ~ 55°C (14°F ~ 131°F); Working Temperature: -10°C ~ 55°C (14°F ~ 131°F)
Humidity:
90% RH (non-condensing)
Operating System:
Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
Web Browser:
Chrome 58.0 or above; Internet Explorer 10/11
Other Players:
VLC: 1.1.11 or above
Packing Contents:
Indoor pendant mount, quick installation guide, alignment sticker, L-wrench, power cable
Detect (25PPM/ 8PPF:
Wide: 76.9 m (252.2 ft); Tele: 587.7 m (1928.1 ft)
Observe (63PPM/ 19PPF:
Wide: 30.5 m (100 ft); Tele: 233.2 m (765.1 ft)
Recognize (125PPM/ 38PPF:
Wide: 15.8 m (51.8 ft); Tele: 117.5 m (385.5 ft)
Identify (250PPM/ 76PPF:
Wide: 7.9 m (25.9 ft); Tele: 58.0 m (190.3 ft)
