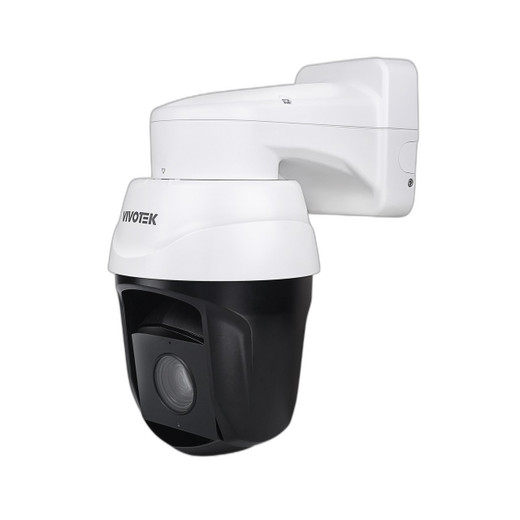

Model:
SD9394-EHL
CPU:
Multimedia SoC (System-on-Chip)
Flash:
8 GB
RAM:
2 GB
Image Sensor:
1/1.8" Progressive CMOS
Max. Resolution:
3840x2160 (8MP)
Lens Type:
32x Optical Zoom, Auto Focus
Focal Length:
f = 6.5 ~ 212 mm
Aperture:
F1.4 ~ F4.9
Iris Type:
P-iris
Field of View:
63.5° ~ 2.0°(Horizontal); 37.4° ~ 1.1° (Vertical); 70.7° ~ 2.3° (Diagonal)
Shutter Time:
1 sec. to 1/100,000 sec.
WDR Technology:
WDR Pro
Day/Night:
Yes
Removable IR-cut Filter:
Yes
IR Illuminators:
Built-in IR Illuminators up to 250 meters with Smart IR, IR LED*8
Minimum Illumination:
0.02 Lux @ F1.4 (Color);
Pan Speed:
Preset speed: 450°/s
Pan Range:
360° endless
Tilt Speed:
Preset speed: 450°/s
Tilt Range:
-20° to 90° (auto flip)
Preset Locations:
256 preset locations; 128 presets per tour
Pan/Tilt/Zoom Functionalities:
32x digital zoom (4x on IE plug-in, 8x built in); Auto Pan mode; Auto Patrol mode; Mechanical Auto flip
Storage:
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Built-in Installation Aids:
Remote focus, remote zoom
Video Compression:
H.265, H.264, MJPEG
Maximum Frame Rate:
30 fps @ 3840x2160
Maximum Streams:
3 video streams (Up to 8 configurable profiles)
S/N Ratio:
67 dB
Dynamic Range:
120 dB
Video Streaming:
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings:
General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, g
Audio Capability:
Two-way audio (Full duplex)
Audio Compression:
G.711, G.726, MPEG-2 AAC-LC
Audio Interface:
External line input; External line output
Users:
Live viewing for up to 10 clients
Security:
Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS, IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (brute force attack event, cyberatta
Protocols:
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface:
10 Base-T/100 Base-TX Ethernet (RJ-45); *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF:
Profile G, S, T supported, specification available at www.onvif.org
Compute Capability:
SoC with built-in hardware deep learning accelerator
Vision Object Analytics:
Object Detection: People, Vehicle (4-wheeled, 2-wheeled); Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color); Re-Search Extraction; Path Extraction
Application:
Deep learning VCA (Smart tracking advanced); Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart Tracking Advanced,; Smart VCA (Intrusion detection, Loitering detection, Line crossing d
Applications:
Trend Micro IOT Security (3-year free trial)
Event Trigger:
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, s
Event Action:
Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card, push notification; File upload via email, HTTP, FTP/SFTP, NAS server, SD card
Connectors:
RJ-45 cable connector for 10/100Mbps Network/PoE connection; Audio line input; Audio line output; AC/DC 24V power input; Digital input *2; Digital output *1; RS-485*1
LED Indicator:
System power and status indicator
Power Input:
AC 24V, DC48V, IEEE 802.3 bt Class 6 PoE; (Simultaneous Power Redundancy Supported)
Power Consumption:
PoE; Max: 51W/26W (IR on/off); DC 48V; Max: 51W/26W (IR on/off); AC 24V; Max: 51W/26W (IR on/off)
Dimensions:
256 x 336 mm
Weight:
7.3 kg
Certifications:
EMC: CE (EN 55032 Class A, EN55035, EN50121-4), UKCA (BS EN 55032: 2015 +Q71: 2020 , BS EN 55035: 2017), FCC (FCC Part 15 Subpart B Class A), IC (ICES-003:2020 Issue7, Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); Safety: UKC
Operating Temperature:
Starting Temperature: -40°C ~ 55°C (-40°F ~ 131°F); Working Temperature: -40°C ~ 55°C (-40°F ~ 131°F) (IR off); -40°C ~ 50°C (-40°F ~ 122°F) (IR on)
Humidity:
98% RH (non-condensing)
Operating System:
Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
Web Browser:
Chrome 58.0 or above; Internet Explorer 10/11
Other Players:
VLC: 1.1.11 or above
Packing Contents:
Wall mount bracket, Screw pack, Screws and anchors, T10 and T25 L-wrench, Waterproof round cap, Quick installation guide, Terminal blocks (for DI/DO audio, AC/DC/GND wires, RS485), Ground wire
Detect (25PPM/ 8PPF:
Wide: 130.2 m (427.2 ft); Tele: 4774.6 m (15664.7 ft)
Observe (63PPM/ 19PPF:
Wide: 51.8 m (170.1 ft); Tele: 1527.9 m (5012.7 ft)
Recognize (125PPM/ 38PPF:
Wide: 25.9m (85 ft); Tele: 848.8 m (2784.8 ft)
Identify (250PPM/ 76PPF:
Wide: 12.9 m (42.4 ft); Tele: 424.4 m (1392.4 ft)
