Vivotek TB9331-E-8.8mm
Vivotek TB9331-E-8.8mm
Write a Review 30% OFF

Vivotek

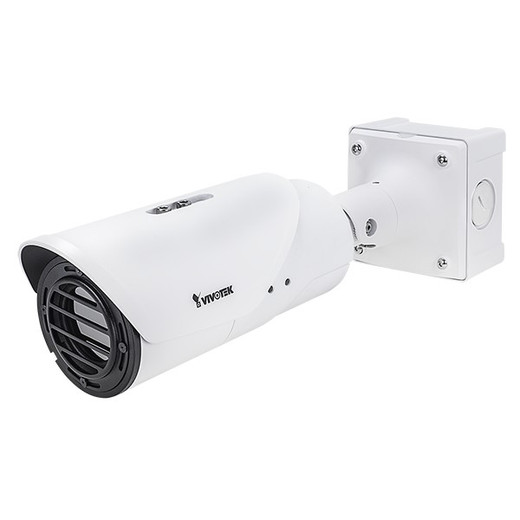

Vivotek TB9331-E-8.8mm (720x480) Thermal Wide-Angle Outdoor Bullet IP Camera

$8,424.00

Add to Cart for Sale Price!

$5,899.99
Adding to cart… The item has been added
SKU: TB9331-E-8.8mm
UPC: 4712123679648
Availability: Usually Ships Same Business Day
Warranty: 3-Year Warranty

Industry Leading Prices

Quantity Discounts
Available

Certified Experts

Pre and Post-sales
Support Available

Free Shipping on Orders Over $499

Same Day Shipping on
Most Orders

Vivotek TB9331-E-8.8mm (720x480) Thermal Wide-Angle Outdoor Bullet IP Camera

$8,424.00

Add to Cart for Sale Price!

$5,899.99
Add to Cart
Description

The Vivotek TB9331-E-8.8mm Thermal Wide-Angle Outdoor Bullet IP Camera stands out in the surveillance market with its cutting-edge thermal imaging technology tailored for perimeter defense and monitoring in challenging lighting conditions. Equipped with a high-resolution 720x480 thermal sensor, this IP camera captures clear images regardless of environmental obstacles like fog, smoke, or complete darkness. Its robust design and wide-angle lens make it an ideal solution for businesses seeking to enhance security around high-risk outdoor areas with precise detection and reliable performance.

This IP camera integrates seamlessly with existing IT infrastructure, supporting both analog and digital outputs, and is compatible with a wide range of video management systems. The Vivotek TB9331-E features intelligent video analytics that includes motion detection, tamper detection, and advanced fire detection capabilities, making it not only a surveillance tool but also a proactive security solution. The camera's durable construction ensures continuous operation in extreme weather conditions, certified by an IP66 rating for water and dust resistance.

Key Features

  • Thermal Imaging: High-resolution 720x480 thermal sensor for clear imagery in all lighting conditions.
  • Wide-Angle Lens: 8.8mm fixed lens providing expansive field of view.
  • Intelligent Video Analytics: Includes motion detection, line crossing, and fire detection alerts.
  • Durability: IP66-rated for water and dust resistance, ensuring functionality in harsh environmental conditions.
  • Night Vision: Superior night vision capabilities without the need for external light sources.
  • Connectivity: Supports both analog and digital outputs for versatile integration.
  • Smart VCA (Video Content Analysis): Enhanced video analysis for more accurate monitoring and alerts.

Compatibility

  • Video Management Systems: Compatible with most major VMS platforms.
  • Connectivity Options: Supports Ethernet connection with PoE for simplified wiring.
  • Systems: Operates with both Windows and Mac OS systems.

Package Contents

  • Vivotek TB9331-E-8.8mm Camera
  • Mounting Brackets
  • Weather Shield
  • Installation Guide
  • Software CD
  • Warranty Card

Summary

The Vivotek TB9331-E-8.8mm Thermal Wide-Angle Outdoor Bullet IP Camera differentiates itself with superior thermal imaging and intelligent analytics, providing businesses a powerful tool for enhancing their security infrastructure. Its wide-angle thermal vision and durable design make it a prime choice for outdoor surveillance, ensuring comprehensive coverage and reliability in all conditions.

Specifications
Model: TB9331-E(8.8mm); TB9331-E(19mm); TB9331-E(35mm); TB9331-E(50mm)
CPU: Multimedia SoC (System-on-Chip)
Flash: 128 MB
RAM: 512 MB
Image Sensor: Uncooled VOx infrared detector
Max. Resolution: Effective pixels: 720x480; Image scale up to: 960x640
Pixel Size: 17 µm
Spectral Range: 8 ~ 14 µm
Sensitivity: NETD < 50 mk
Lens Type: Fixed-focal (Thermal Lens)
Focal Length: TB9331-E(8.8mm): f = 8.8 mm; TB9331-E(19mm): f = 19 mm; TB9331-E(35mm): f = 35 mm; TB9331-E(50mm): f = 50 mm
Aperture: F1.0
Iris Type: Fixed iris
Field of View: TB9331-E(8.8mm): 69.6° (Horizontal); 49.7° (Vertical); 79.8° (Diagonal); TB9331-E(19mm): 35.7° (Horizontal); 24.2° (Vertical); 42.3° (Diagonal); TB9331-E(35mm): 19.8° (Horizontal); 13.3° (Vertical); 23.7° (Diagonal); TB9331-E(50mm): 14° (Horizontal);
Pan/Tilt/Zoom Functionalities: ePTZ: 20x digital zoom (4x on IE plug-in, 5x built-in)
Storage: Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video Compression: H.265, H.264, MJPEG
Maximum Frame Rate: 30 fps @ 720x480
Maximum Streams: 4 simultaneous streams
Video Streaming: Adjustable resolution, quality and bit rate control, Smart Stream II
Image Settings: General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation); Thermal settings: white balance, image adjustment (brightness, contrast, sharpness); Privacy mask; Scheduled profile settings
Audio Capability: Two-way Audio (full duplex)
Audio Compression: G.726, G.711
Audio Interface: External microphone input; External line output
Users: Live viewing for up to 10 clients
Security: Access list, digest authentication, HTTPS, IEEE 802.1x, Password protection,user access log, user account management
Protocols: 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
Interface: 10 Base-T/100 Base-TX Ethernet (RJ-45); *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF: Profile G, S supported, specification available at www.onvif.org
Video Motion Detection: Five-window video motion detection, human detection, time filter
VCA: Line crossing detection, field detection, loitering detection
VADP Package: Trend Micro IoT Security (3-year free trial)
Event Trigger: Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, s
Event Action: Event notification via audio clip, digital output, email, HTTP, FTP, NAS server, SD card; File upload via email, HTTP, FTP, NAS server, SD card
Connectors: RJ-45 cable connector for 10/100Mpbs Network/PoE connection; Audio input; Audio output; DC 12V power input; AC 24V power input; Digital input; Digital output; BNC; RS485
LED Indicator: System power and status indicator
Power Input: AC 24V, DC 12V, IEEE 802.3at PoE Class 4; (Simultaneous Power Redundancy Supported)
Power Consumption: PoE: Max. 14 W; DC 12V: Max. 11 W; AC 24V: Max. 12.4 W
Dimensions: TB9331-E(8.8mm): 121 x 121 x 471.2 mm (with junction box); TB9331-E(19mm): 121 x 121 x 452.2 mm (with junction box); TB9331-E(35mm)/(50mm): 121 x 121 x 455.6 mm (with junction box)
TB9331-E(8.8mm)/(35mm)/(50mm: 2,115 g; TB9331-E(19mm): 2,050 g
Operating Temperature: Start Temperature: -40°C ~ 60°C (-40°F ~ 140°F); Working temperature: -50°C ~ 60°C (-58°F ~ 140°F)
Humidity: 90%
Operating System: Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
Web Browser: Chrome 58.0 or above; Internet Explorer 10/11
Other Players: VLC: 1.1.11 or above
Packing Contents: Quick installation guide, alignment sticker, screw pack, waterproof accessory bag, junction box, sunshield
